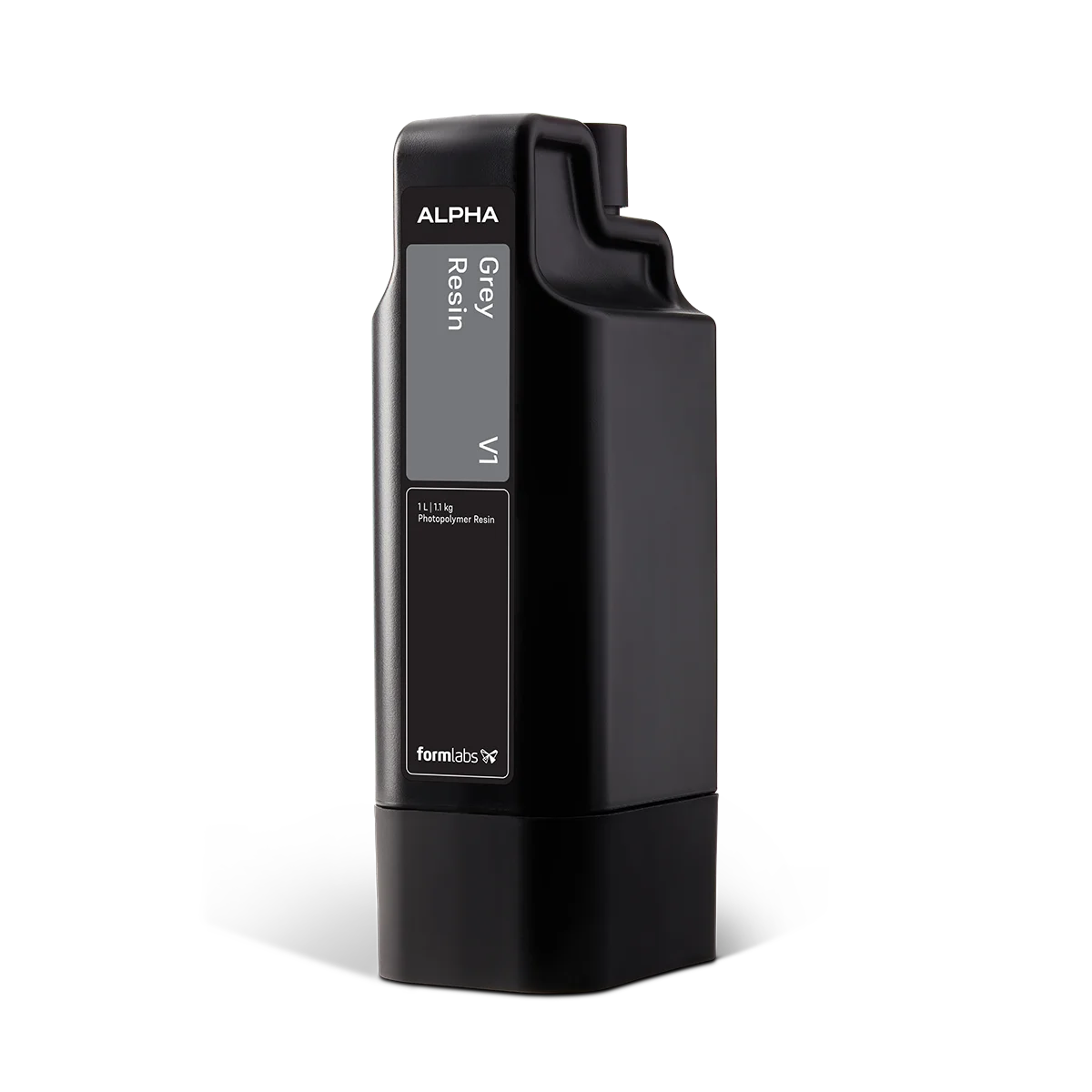

Alpha Grey Resin
Alpha Grey Resin is a versatile general-purpose resin for aesthetic, functional parts, combining fine detail and a rich, matte finish with fast print speeds and superior mechanical properties.
Form Studio 1: Formlabs' Most Accessible SLA 3D Printer and Ecosystem
Form Studio 1 is Formlabs' most accessible SLA 3D printer, designed to introduce a new audience to the Formlabs ecosystem. It delivers a seamless professional printing experience with a workflow that is safe, reliable, and mess-free from start to finish.
More than just a printer, Form Studio 1 is the foundation of the Form Studio 1 Ecosystem as a complete solution that brings together the printer, post-processing equipment, materials, and accessories. Designed to work seamlessly together, these products provide customers with an integrated and efficient 3D printing workflow.

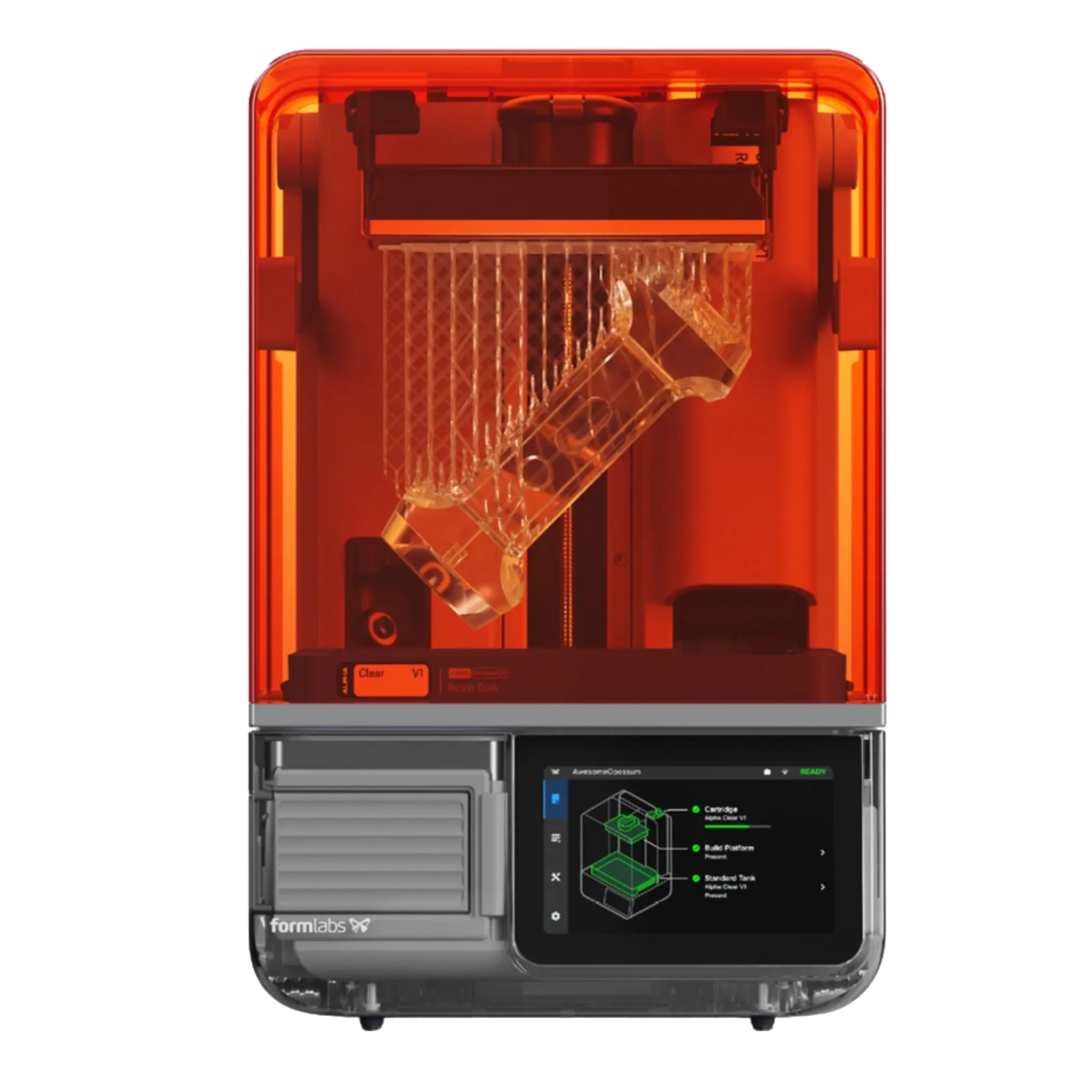

Form Studio 1
Form Studio 1 is the first affordable, professional-grade resin 3D printer with a powerful, long-lasting print engine and an open platform. Print most parts in under two hours with razor-sharp detail and a workflow that's safe, reliable, and mess-free from start to finish. Paired with Alpha Resins and the Formlabs VOC Extractor, Form Studio 1 is the first and only resin printer with UL GREENGUARD Certification for low chemical emissions.
Industrial-Grade SLA Printing, Redefined
- TechnologyMasked Stereolithography (MSLA)
- Build volume20.0 x 12.5 x 23.5 cm | 7.9 x 4.9 x 9.3 in
- Layer thickness25–250 µm | 0.001–0.010 in
Features Built for Industrial-Grade Performance
Blazing fast
Most parts print in under two hours, with speeds up to 130 mm/h on Alpha Fast Resin.
Amazing parts
A 35 µm pixel, anti-aliasing, and resins tuned to the light engine deliver sharp edges and smooth surfaces.
Automatic resin handling
Integrated, hands-free dispensing with glove-free material swaps in under a minute.
Open platform
Open Material Mode is included, so customers can print in any 405 nm resin with no license fee.
Reliable by design
Five intelligent control systems monitor temperature, resin level, print force, and print status on every job.

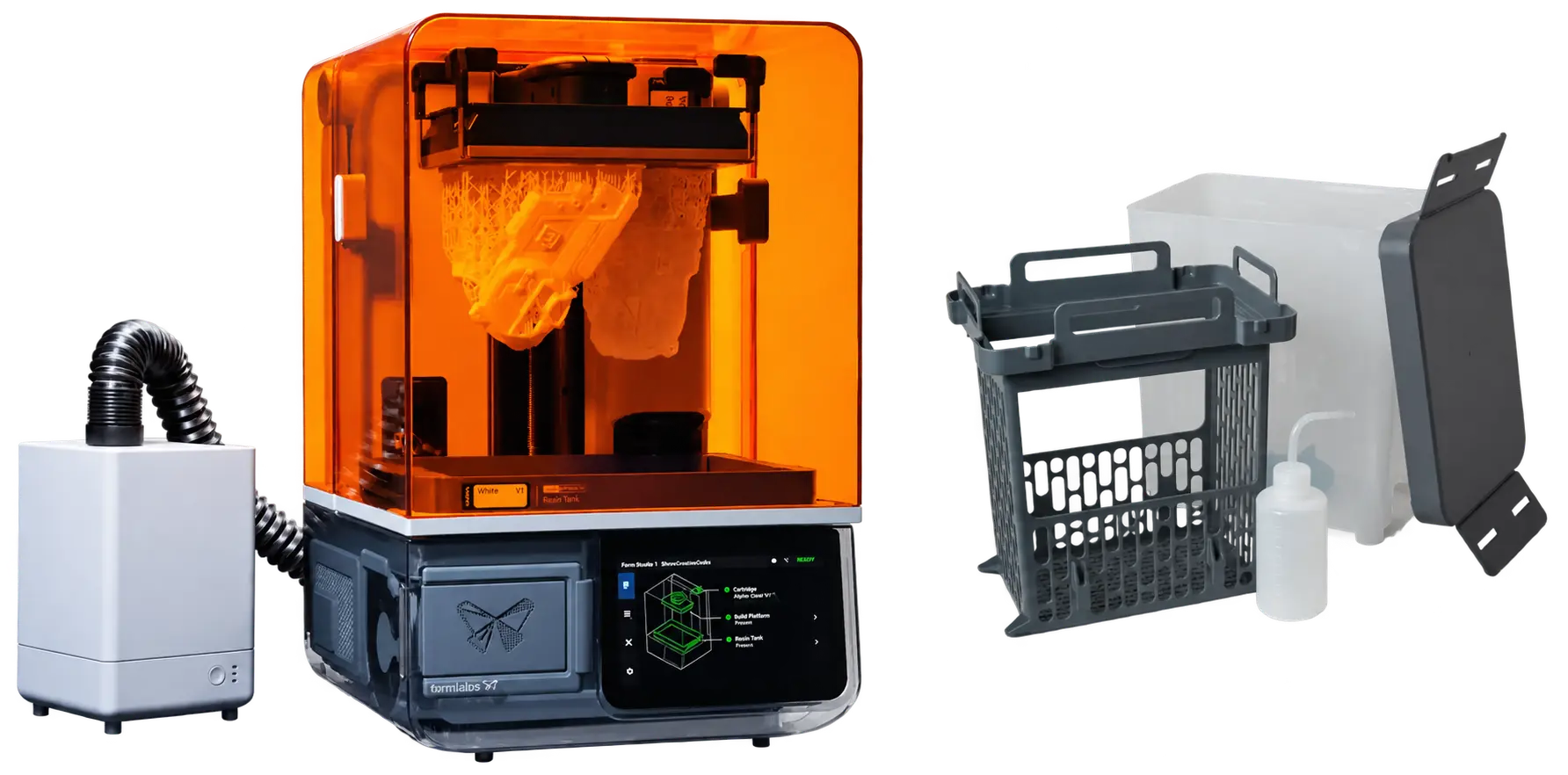

Form Studio 1 Ecosystem

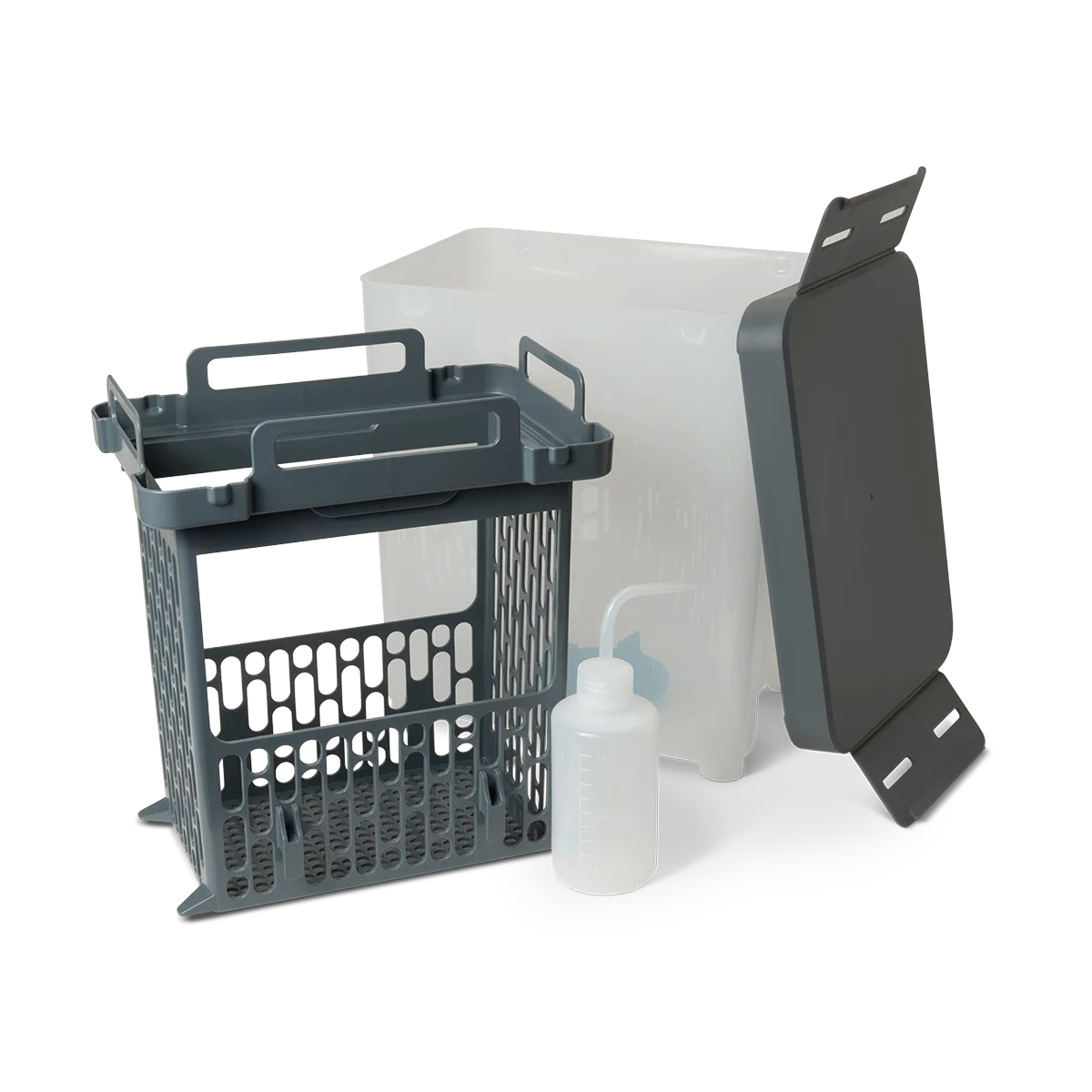

Form Studio 1 Wash+Cure
Form Studio Wash+Cure is an all-in-one, compact, and affordable post-processing unit that handles both washing and curing for your resin 3D prints.
- Washing: A removable basin holds parts on the build platform or in the internal basket; an impeller agitates the solvent to clean every surface, then the basket raises so parts lift out of the solvent to air dry and avoid over-soaking.
- Curing: A stowable glass turntable drops into the chamber and rotates parts under 405 nm light for even exposure, completing the reaction started during printing and boosting strength, toughness, and heat resistance.
- Solvent compatibility: Works with IPA, TPM, and Resin Washing Solution.
Modes of Form Studio 1 Wash+Cure
Washing mode
All resin 3D printed parts need washing to remove residual resin. Form Studio Wash+Cure agitates IPA or alternative solvents around parts for thorough, efficient cleaning. When washing is done, simply raise the internal basket out of the solvent to let parts air dry and avoid over-soaking, warped prints.
Curing mode
Using 405 nm light, Form Studio Wash+Cure completes the chemical reaction started during printing. Post-curing boosts part strength, toughness, heat resistance, and creep resistance, while leaving a harder, less tacky surface.

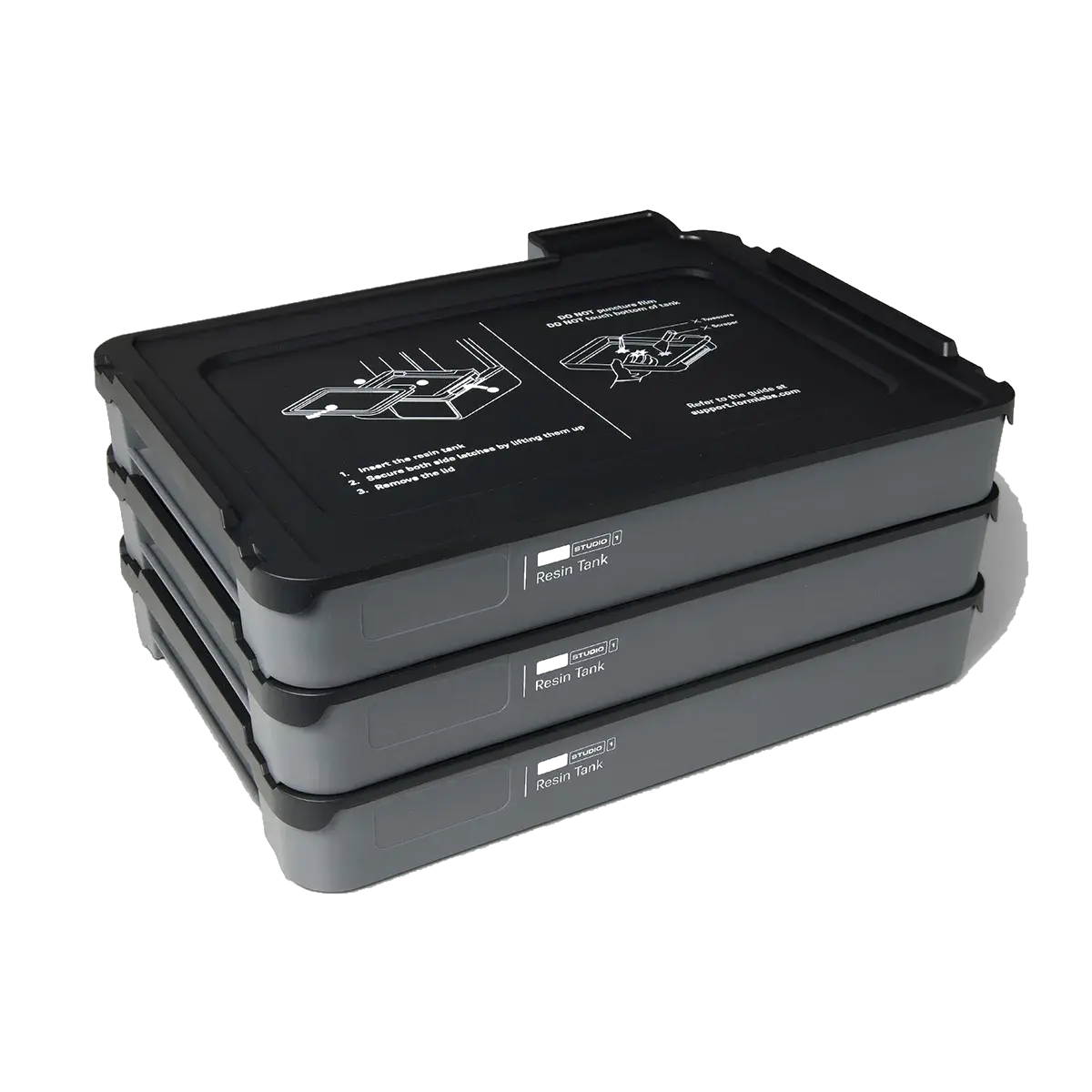

Form Studio 1 Resin Tank
Form Studio 1 Resin Tank is a strong, flexible tank built for fast print speeds and fine feature resolution. Every tank includes a reusable lid, making it easy to stack tanks and store resin outside of the machine. With a separate tank for each resin color or type, switching materials are as easy as sliding in a new tank. This tank is optimized for chemical compatibility with Alpha Resins, Flexible 80A Resin V2, and True Cast Resin. It is not compatible with Tough 1500 Resin or materials needing to use Open Material Mode. For those materials, use the Form Studio 1 Resin Tank Pro. Resin Tanks are built to last and deliver consistent performance for at least 75,000 layers of printing approximately 190 prints using average-height model (39 mm tall), any resin, and 100 µm layer height.

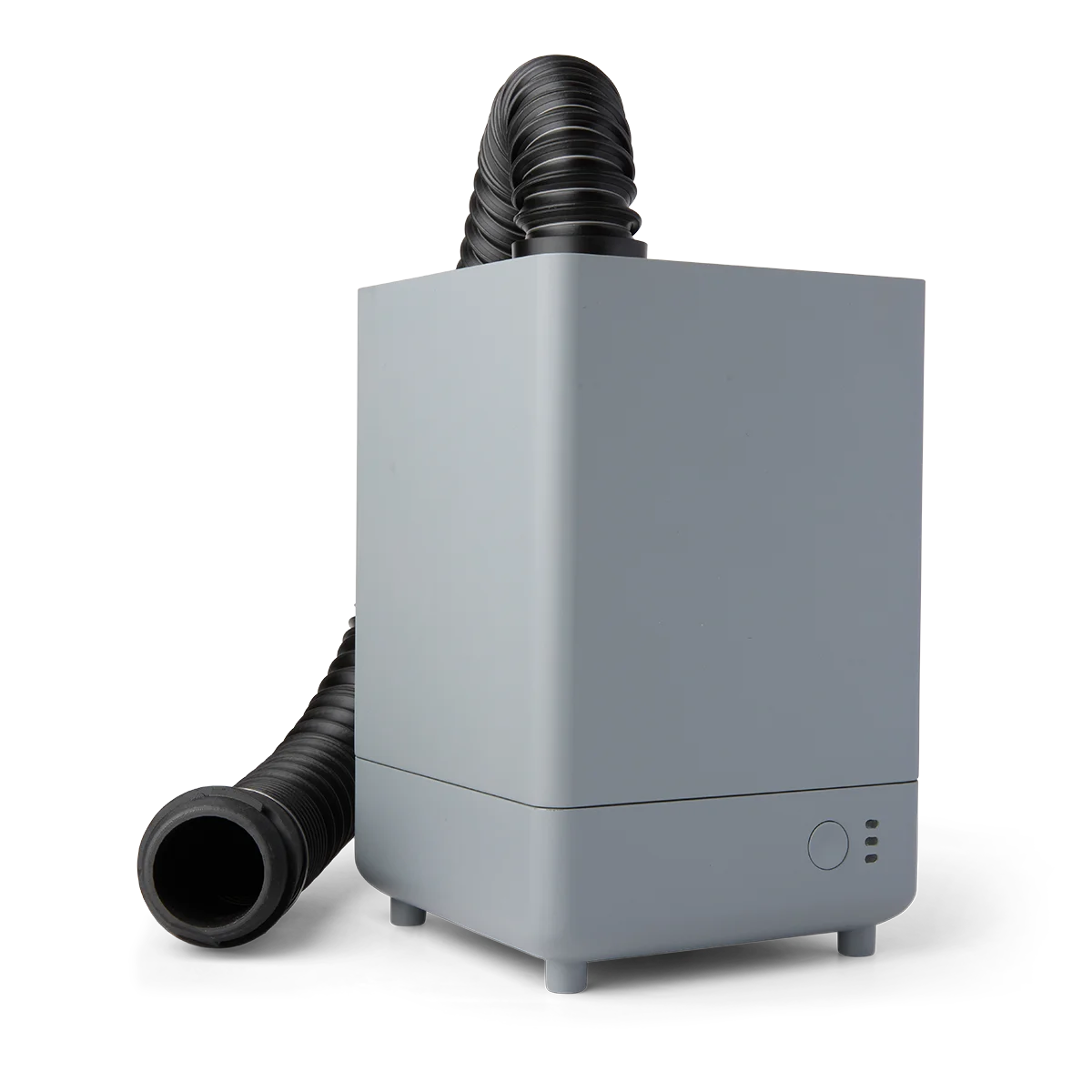

VOC Extractor
VOC Extractor is a compact add-on that reduces volatile organic compound levels while your printer runs. Air passes through two carbon filters, lasting roughly 330 hours of print time and replaceable in seconds. Three fan speeds let you match airflow to your needs. Compatible with Form Studio 1 and Form 4. UL GREENGUARD Gold Certification applies to Form Studio 1 used with Alpha Resins.
- Carbon filtration: air passes through a pre-filter, then two activated carbon HEPA filters; each filter lasts roughly 330 hours of print time and replaces in seconds
- Three flow settings: 7, 12, and 19 CFM to match hose routing and materials

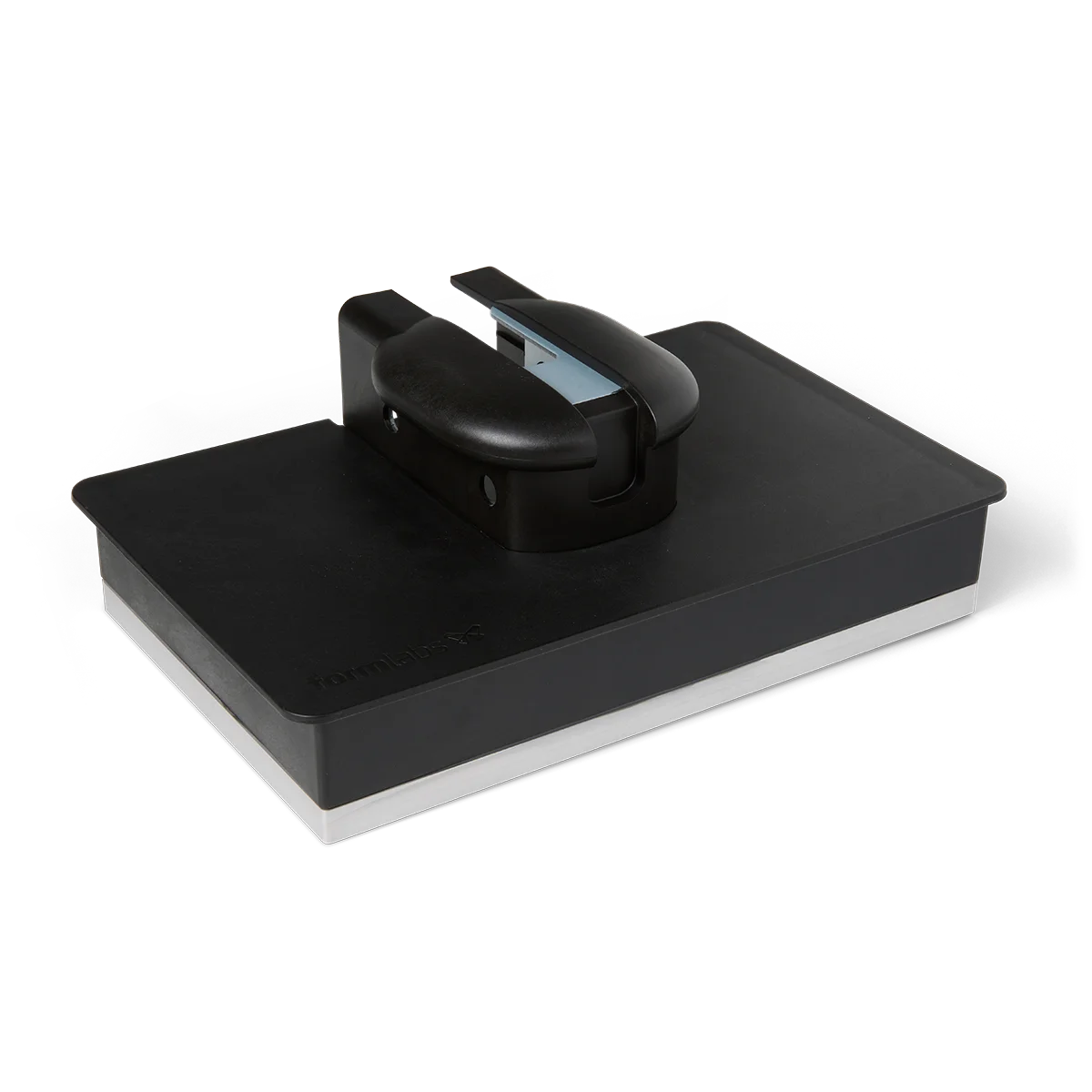

Build Platform
Form Studio 1 Build Platform features a durable aluminum surface. A spare Build Platform speeds up your workflow and enables nonstop printing, whether you’re changing resins or starting a new print while you remove your finished parts. Choose Form Studio 1 Build Platform Flex to quickly and easily remove parts from the print surface without tools, in seconds.
Alpha Resins

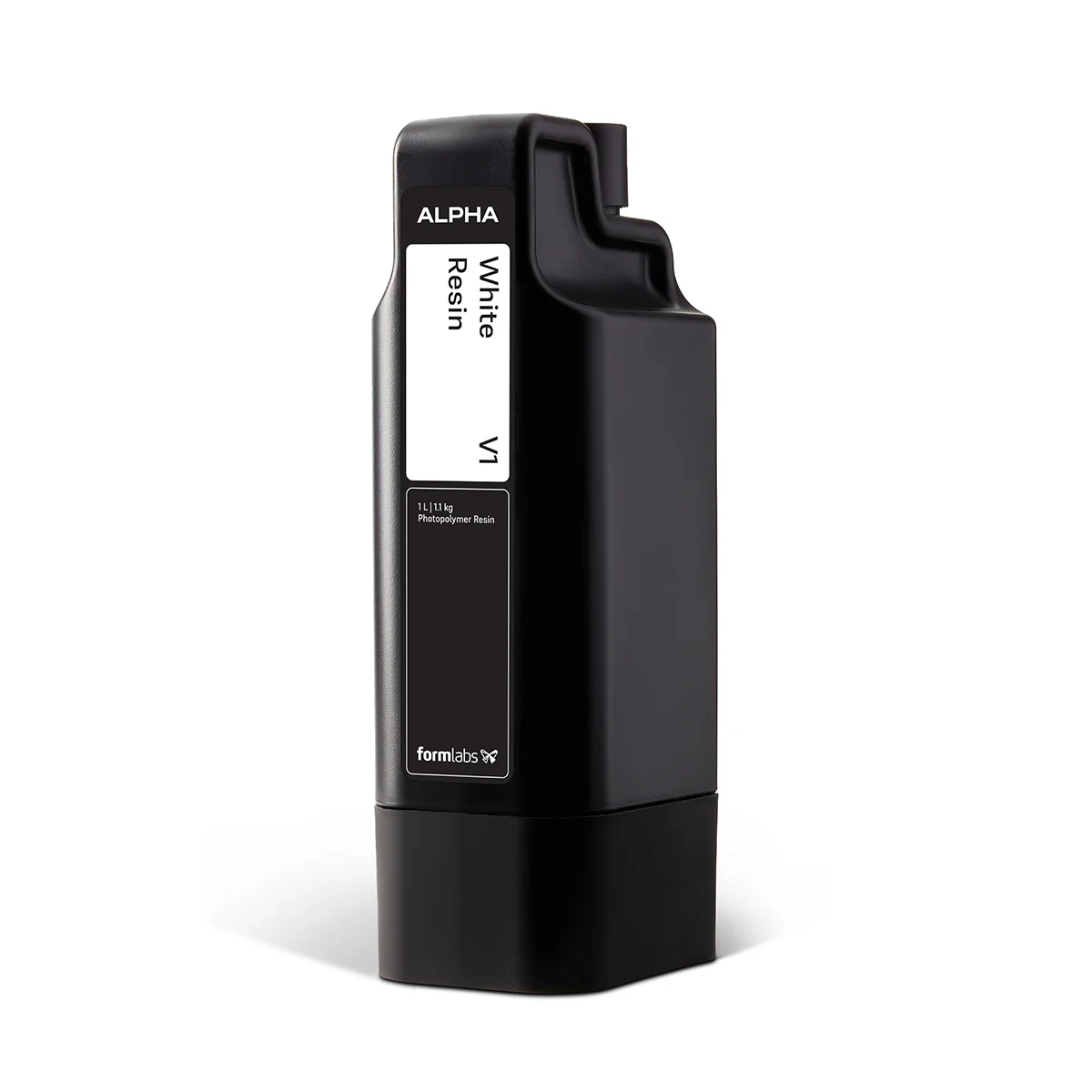

Alpha White Resin
Alpha White Resin is a versatile general-purpose resin for aesthetic, functional parts, combining fine detail and a rich, matte finish with fast print speeds and superior mechanical properties.

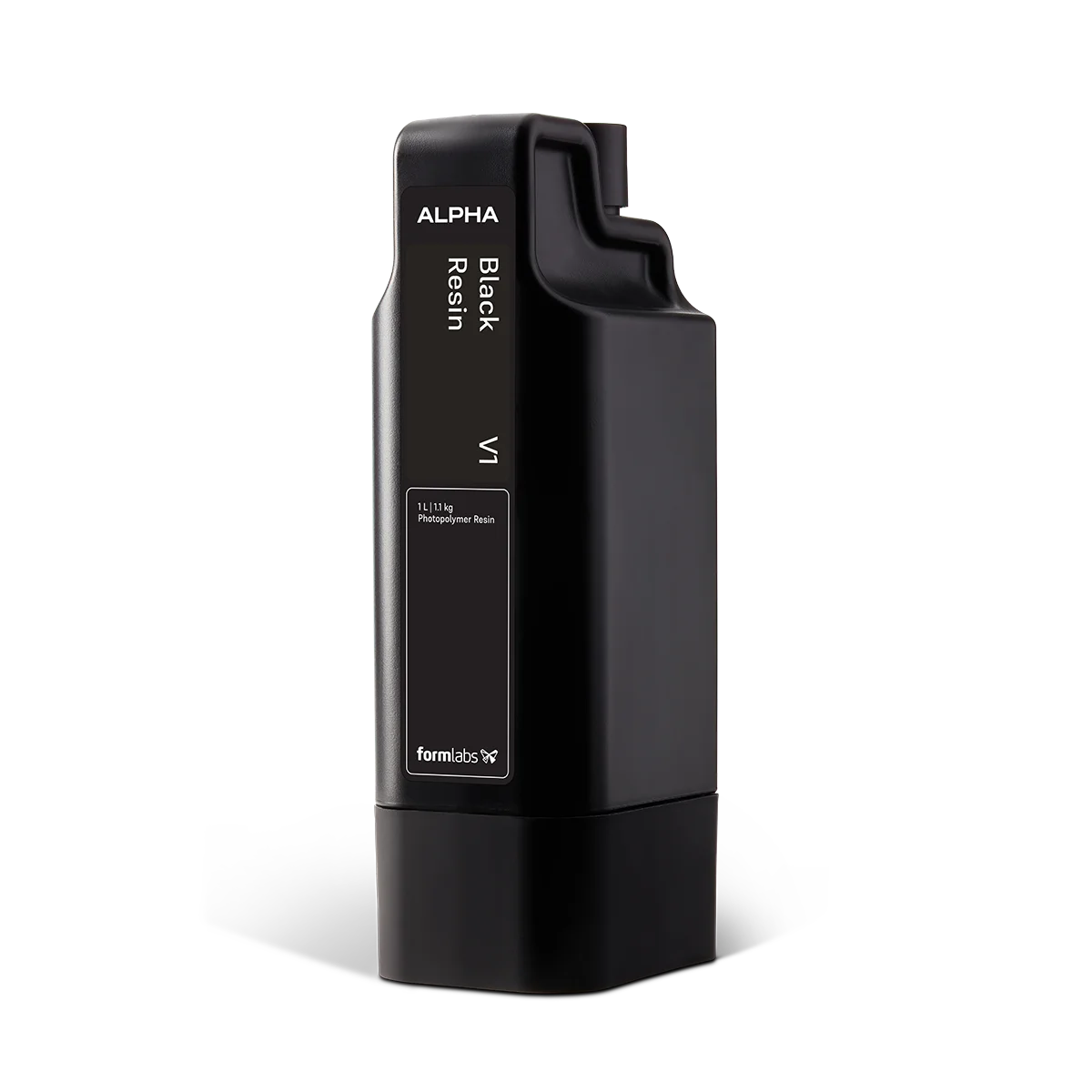

Alpha Black Resin
Alpha Black Resin is a versatile general-purpose resin for aesthetic, functional parts, combining fine detail and a rich, matte finish with fast print speeds and superior mechanical properties.

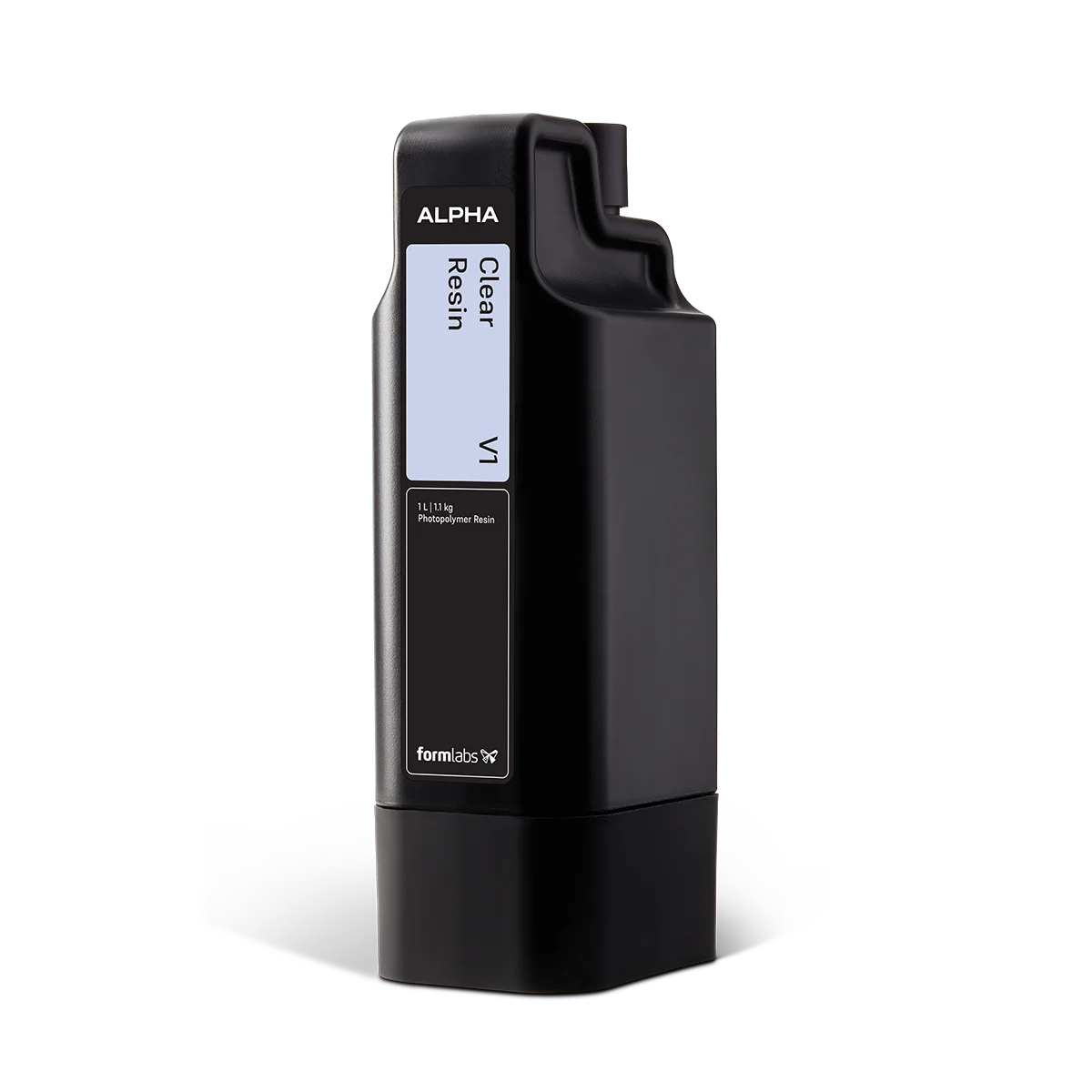

Alpha Clear Resin
Alpha Clear Resin is a versatile transparent 3D printing resin for aesthetic, functional parts, combining an optically clear, neutral-color appearance with fast print speeds and superior mechanical properties.

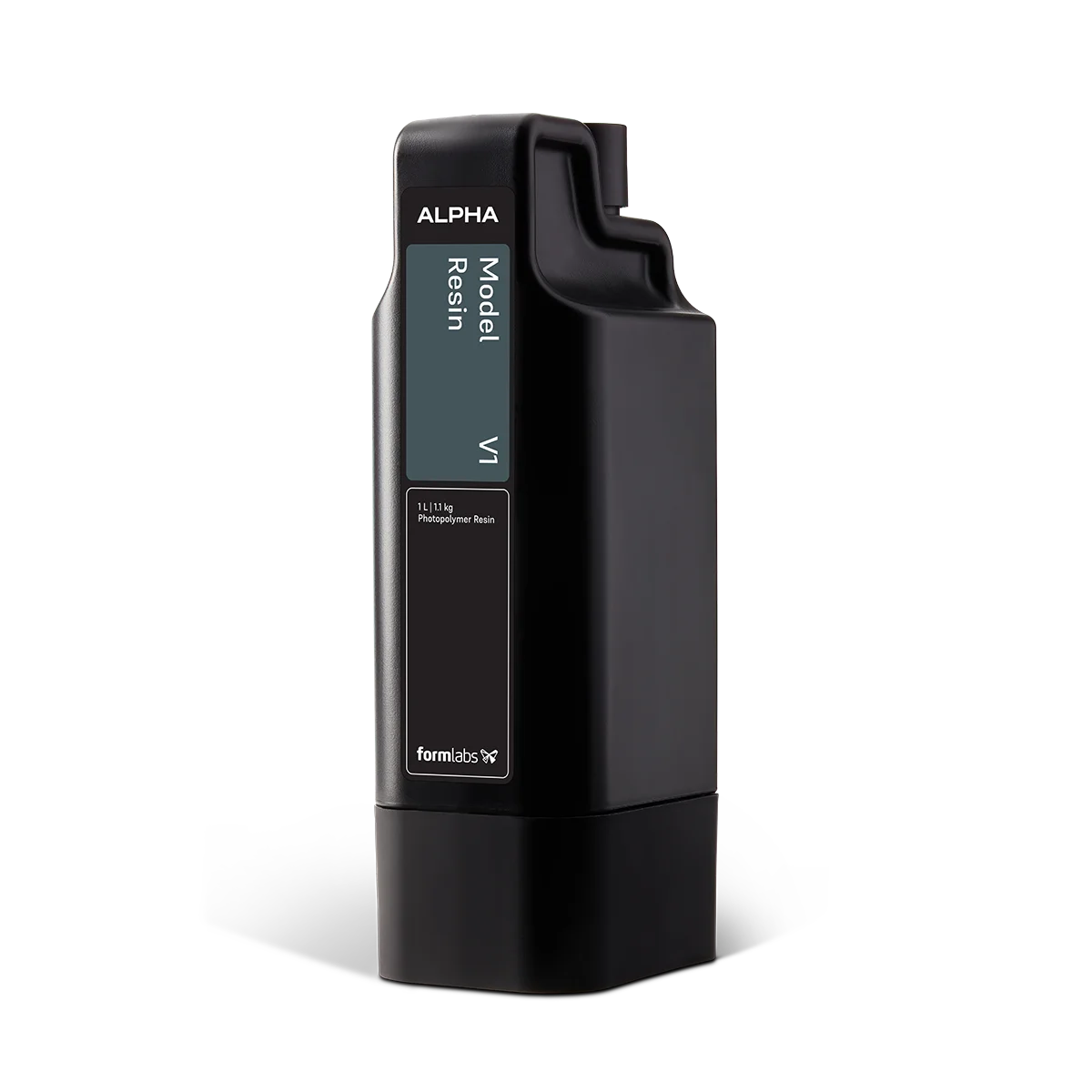

Alpha Model Resin
Alpha Model Resin is a supremely detailed resin with a deep, fully matte, neutral surface that captures every detail, down to the finest crevices and textures.

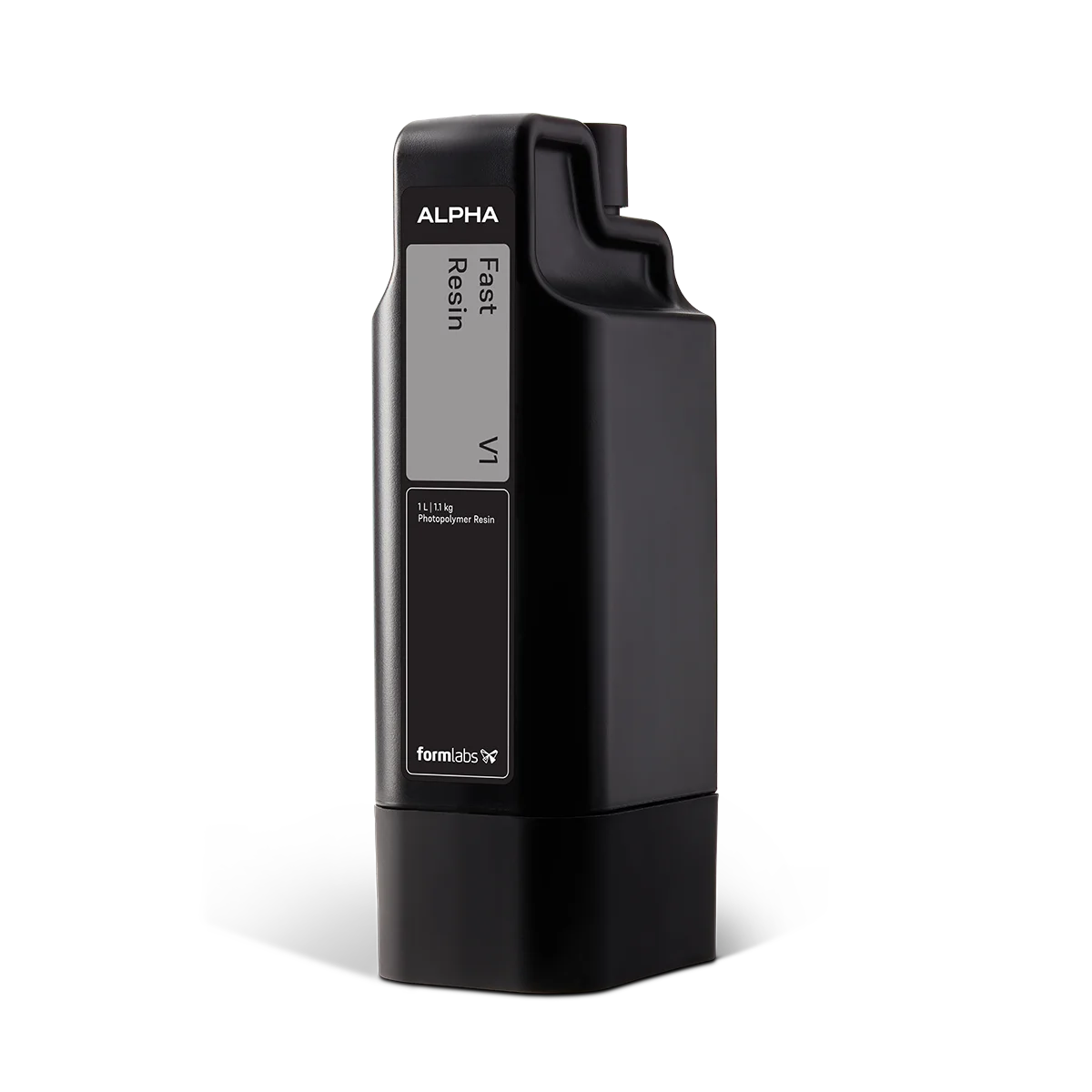

Alpha Fast Resin
Alpha Fast Resin is a fast-printing general purpose resin with print speeds up to 130 mm/h, for iterative prototypes in minutes or print the entire build volume on Form Studio 1 in less than two hours.

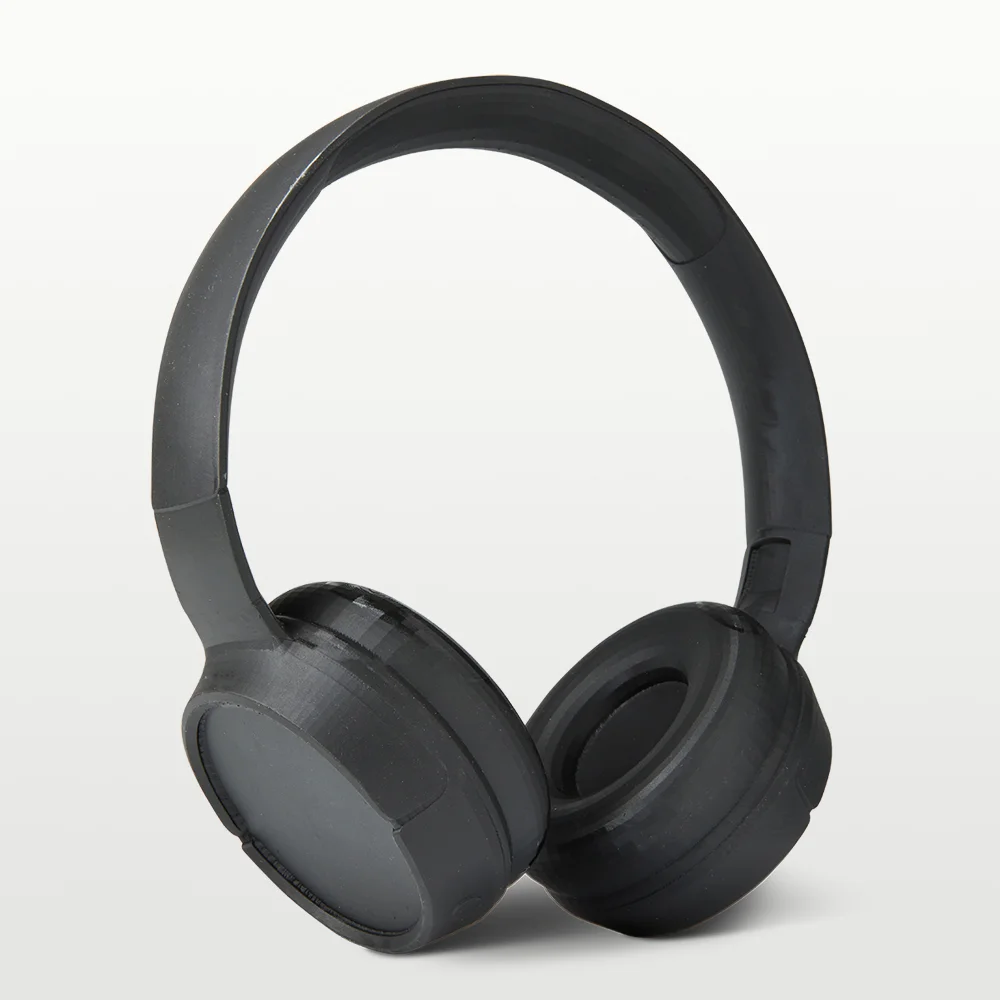

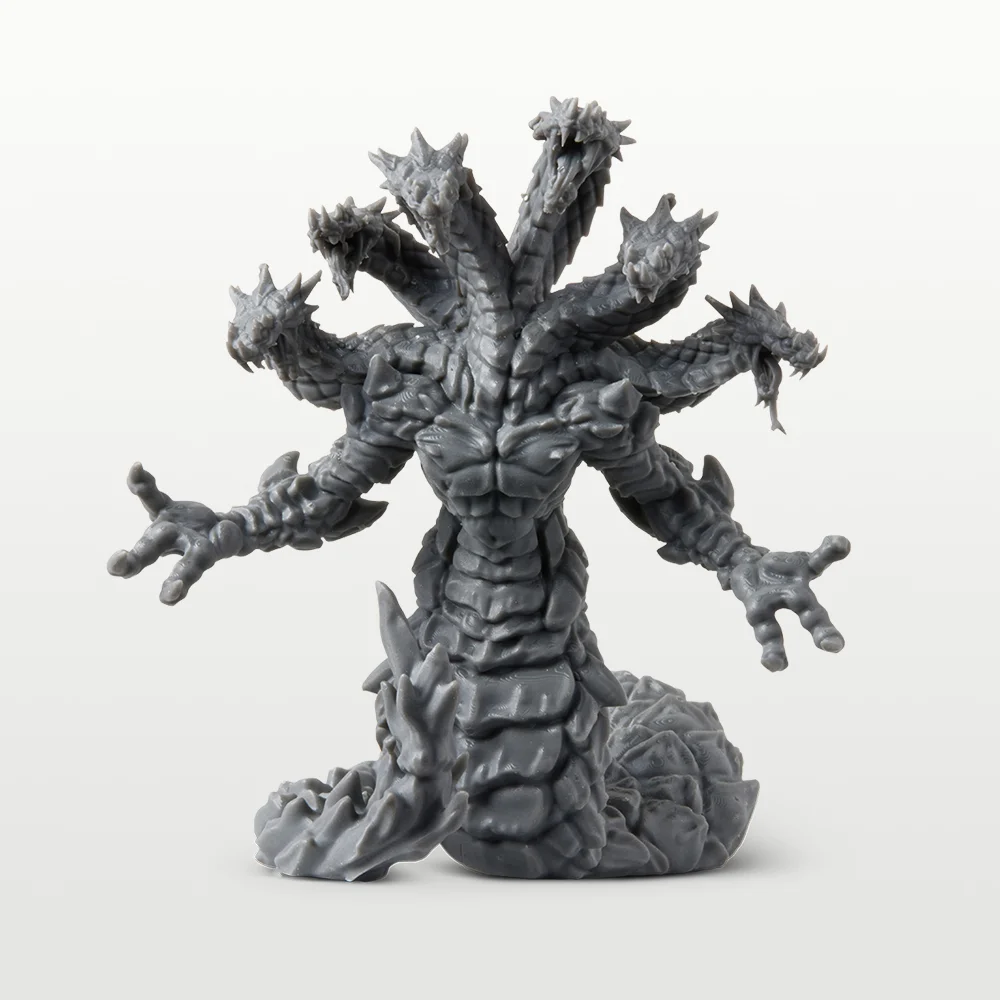

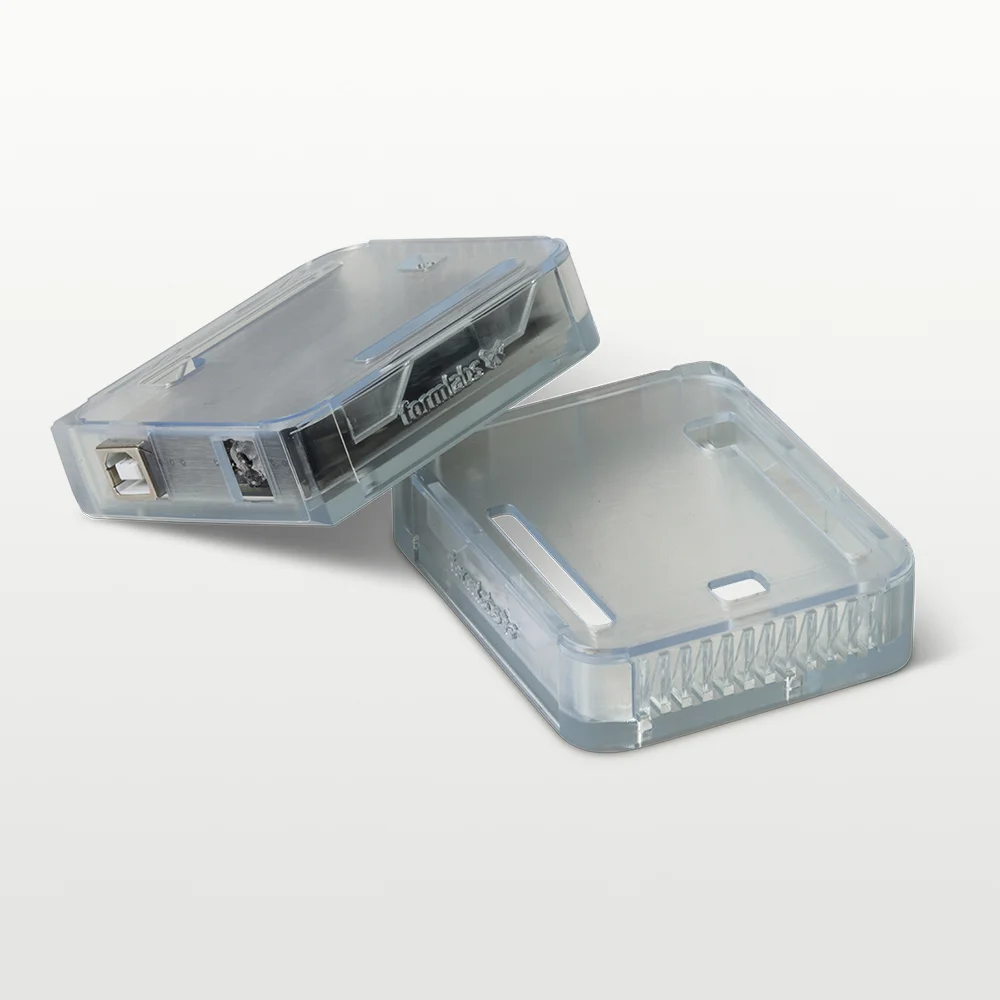

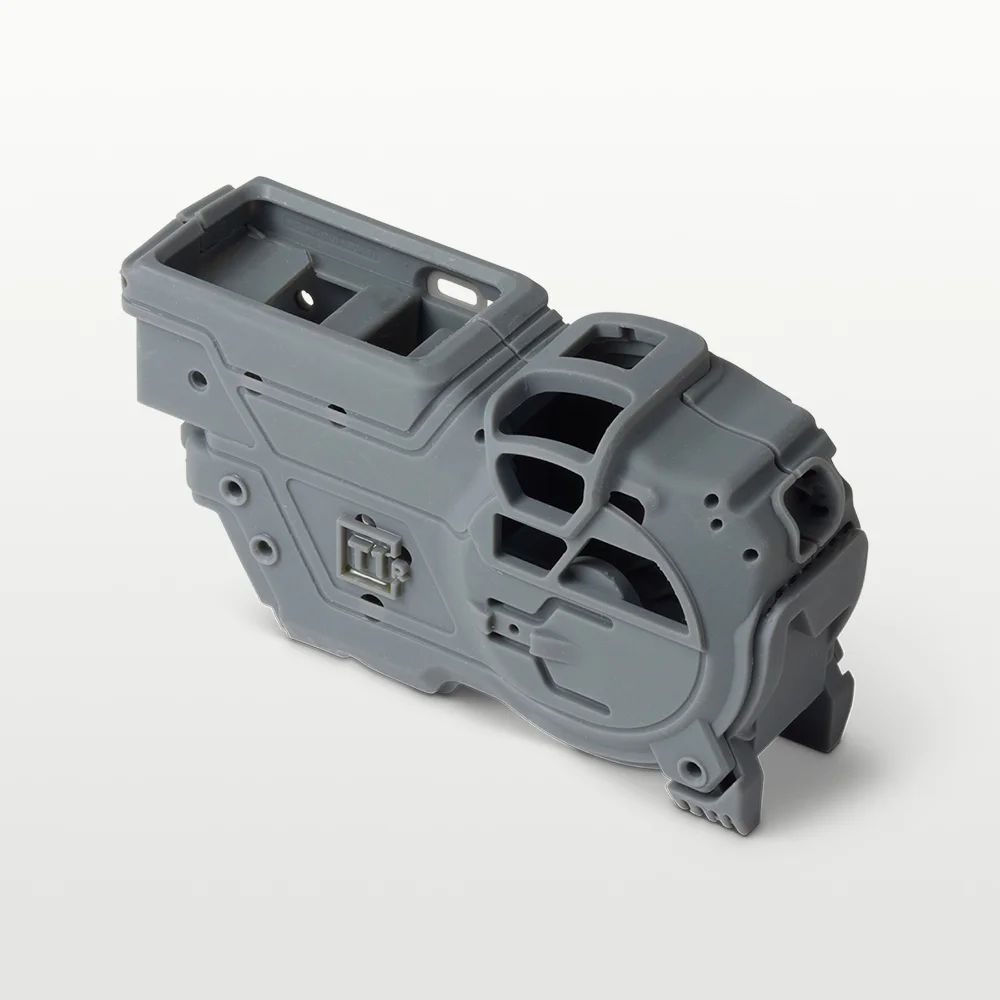

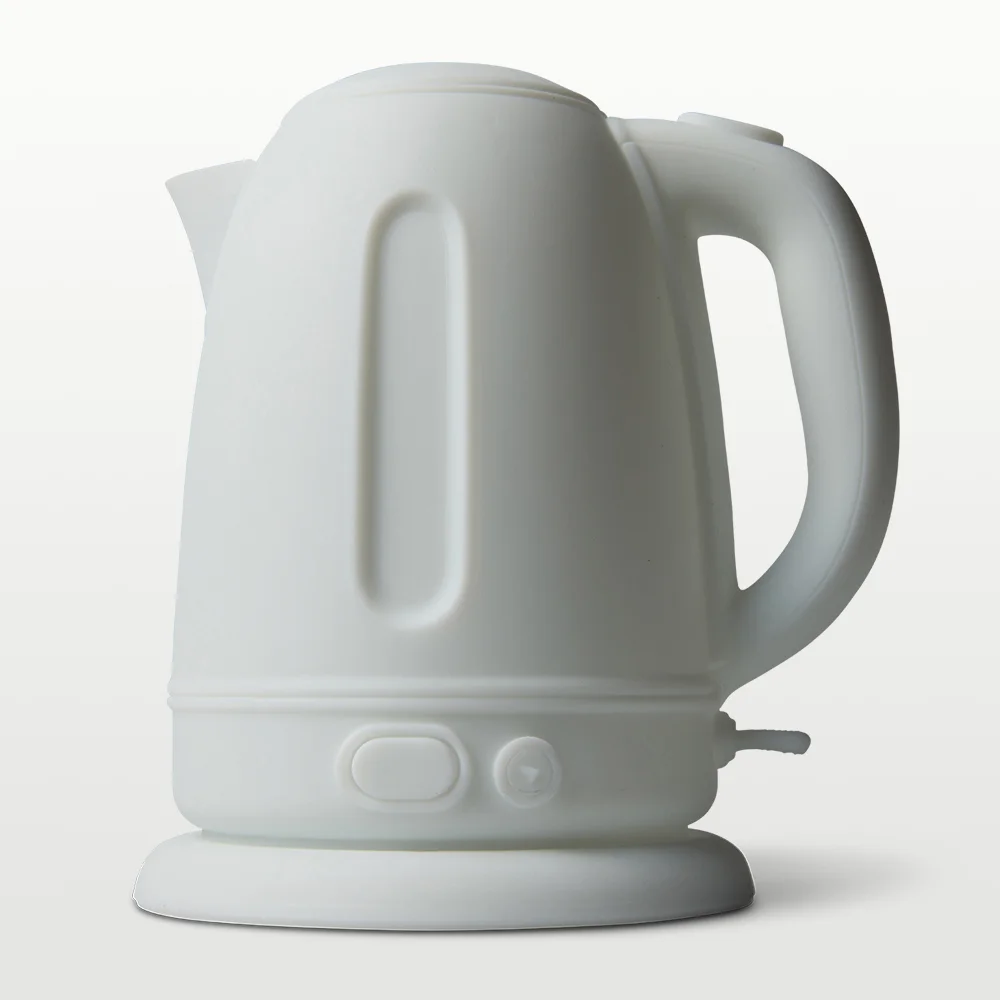

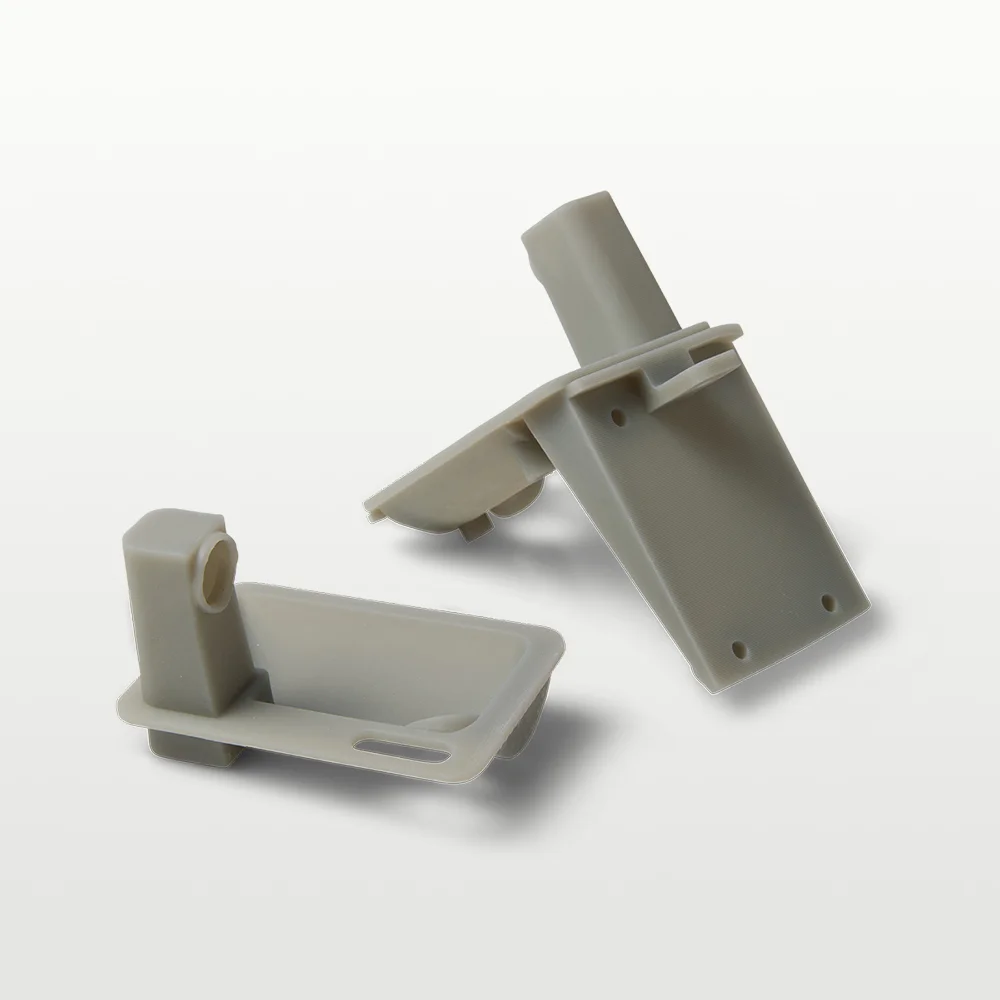

Parts Printed on Form Studio 1
From clear enclosures to fine-detail miniatures, see what Alpha Resins deliver on Form Studio 1.
