Encoder for Live Streaming
LiveU's broad portfolio of cellular uplink products sets the industry standard for live broadcasting and video production. Combined with our robust cloud-based live video management and distribution solutions, LiveU enables broadcasters of all sizes to acquire and share live video reliably on any viewing platform.
-
LiveU Solo Pro
-
LiveU Solo
-
LU800
-
LU300S
-
LU600
-
LU810
-
LU610S

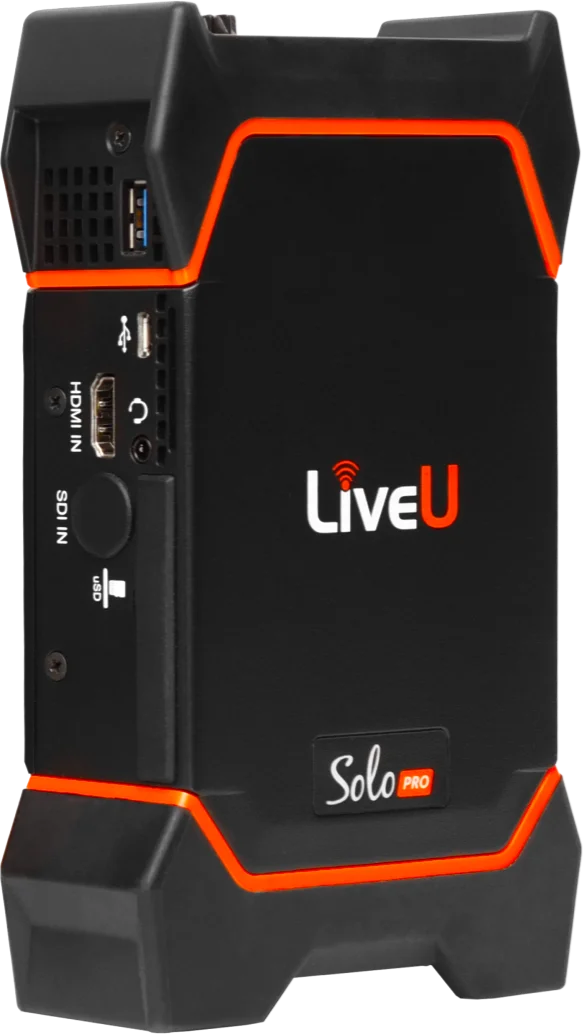

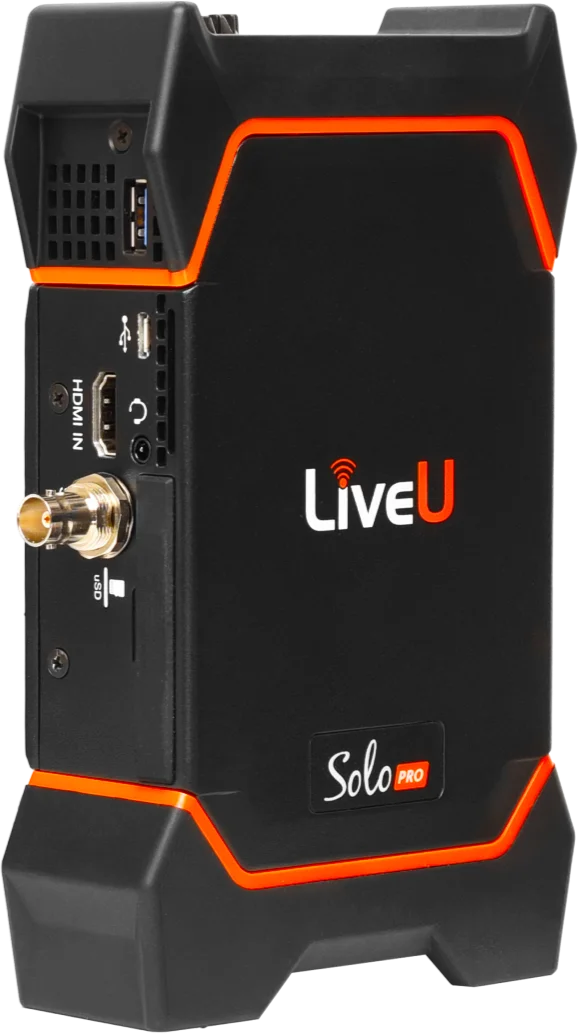

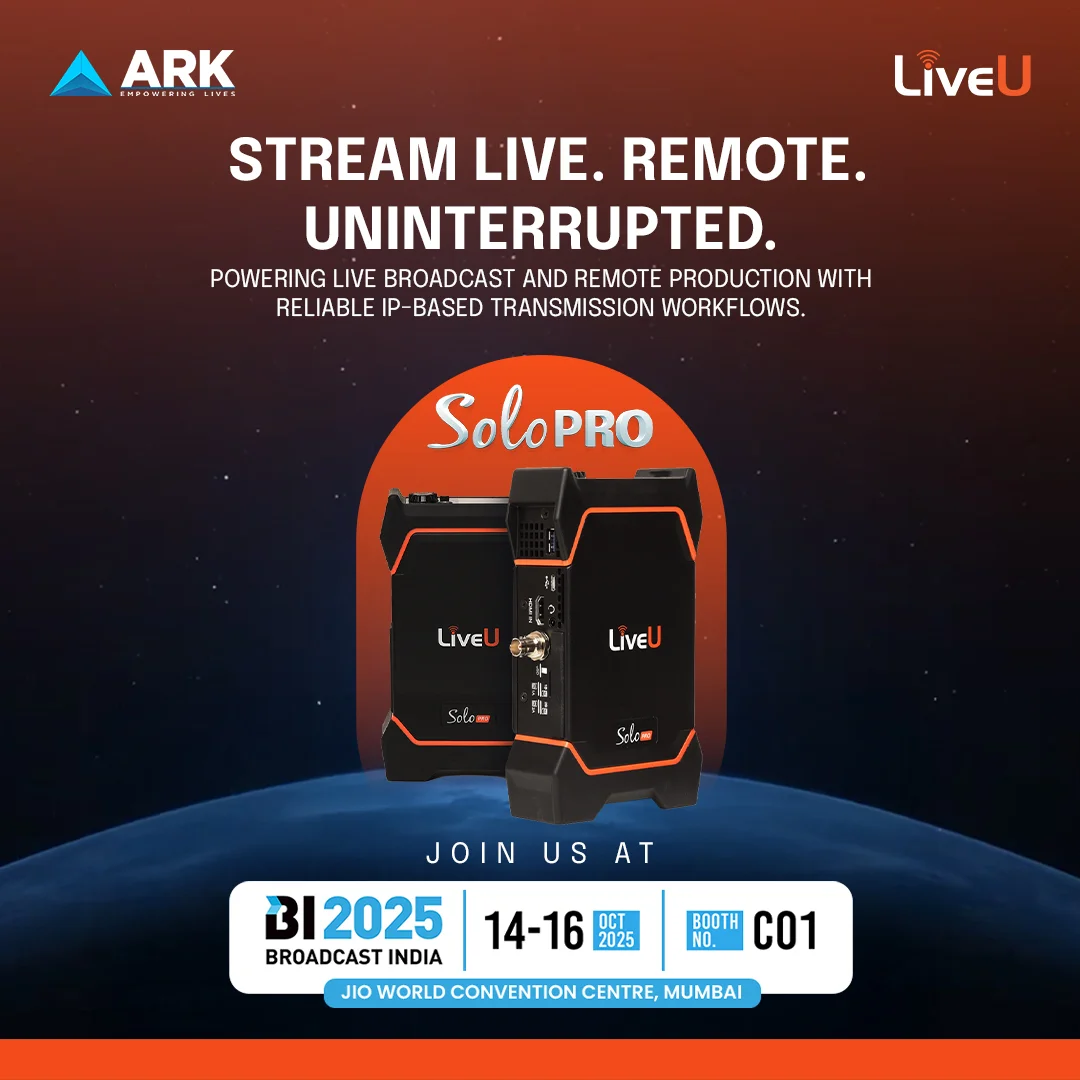

Enjoy peace of mind knowing your live streams deliver the ultimate quality. LiveU's next-gen Solo PRO portable bonding encoder offers professional-grade 4K and HEVC video quality with rock-solid reliability.
- Up to six IP connections, 4 external 4G/5G modems.
- WiFi and LAN, ensuring top reliability in any network scenario.
- Optional HEVC encoding offers the same quality in half the bandwidth of H.264, or twice the quality in the same bandwidth.
BEST-IN-CLASS HIGH-QUALITY 'PLUG & PLAY' STREAMING DEVICE
The LiveU Solo video encoder offers one-touch, wireless live streaming, directly from your camera or any other video source to popular online platforms or any customizable web destinations.
// 5 Top reasons to use the LiveU Solo Live Streaming solution:- Just plug in your camera and start streaming in seconds.
- Deliver high quality videos by combining bandwidth from multiple networks.
- Stream live from remote locations or congested network environment.
- Easily select and go live on all popular platforms.
- LiveU Reliable Transport (LRT™). This allows you to combine multiple IP connections
- across the most challenging cellular networks.

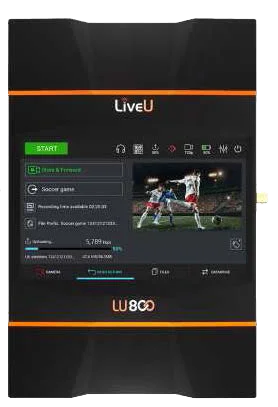

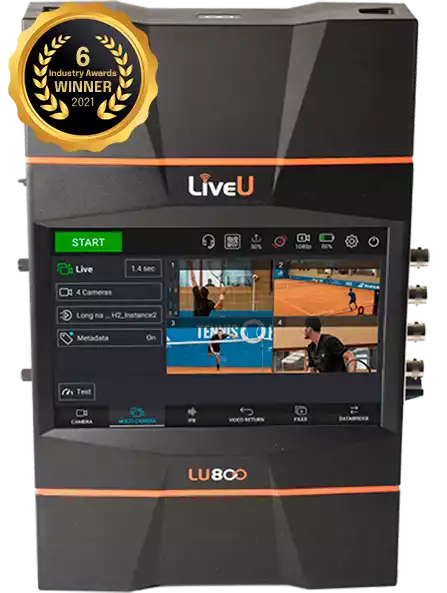

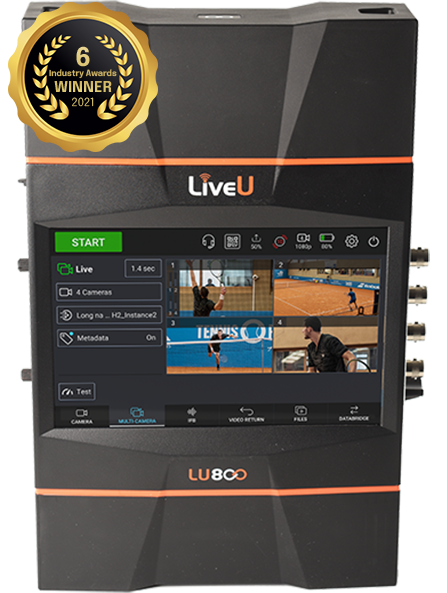

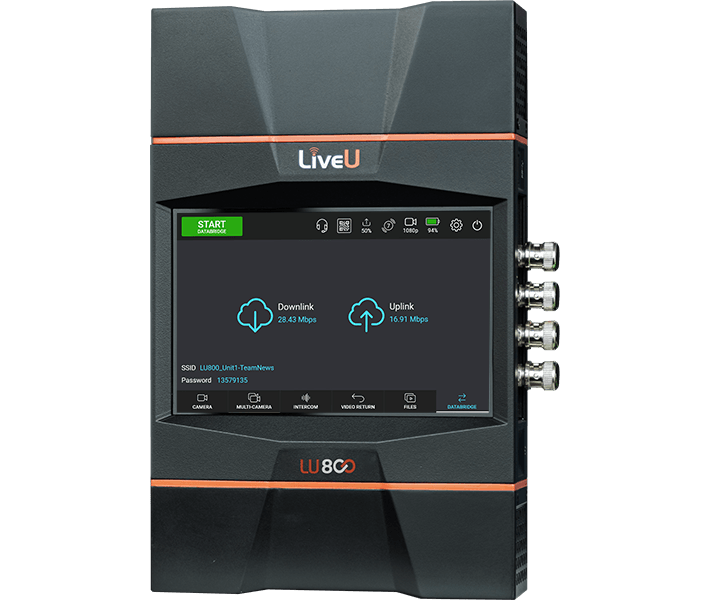

Industries first Multi camera 5G production level field unit.
// Features of LU800- Up to 8x5G modems with high-efficiency internal antennas.
- Up to 4Kp60 10-bit HDR transmission for optimal color depth & richness.
- Multi-camera with up to 4 fully synced feeds & flexible unit/ station switching.
- ~50% bandwidth reduction using Hardware based HEVC technology.
- Rich remote production tools: Video Return, Tally Light, Audio Connect.
- Super-fast file transfer for sending edited footage from the field.
- Up to 16 audio channels for richer audio production.
- 7” ultra-sensitive capacitive touch- screen for easy unit control.
- Optional external antenna connections for harsh RF conditions.
- Dual SIM option enable dual purpose Local/ Roaming unit.
- Dual power input (standard power supply & external battery input).
- 2 Ethernet & 2 WiFi interfaces for more connection options.
- Weight : 1.74 kg

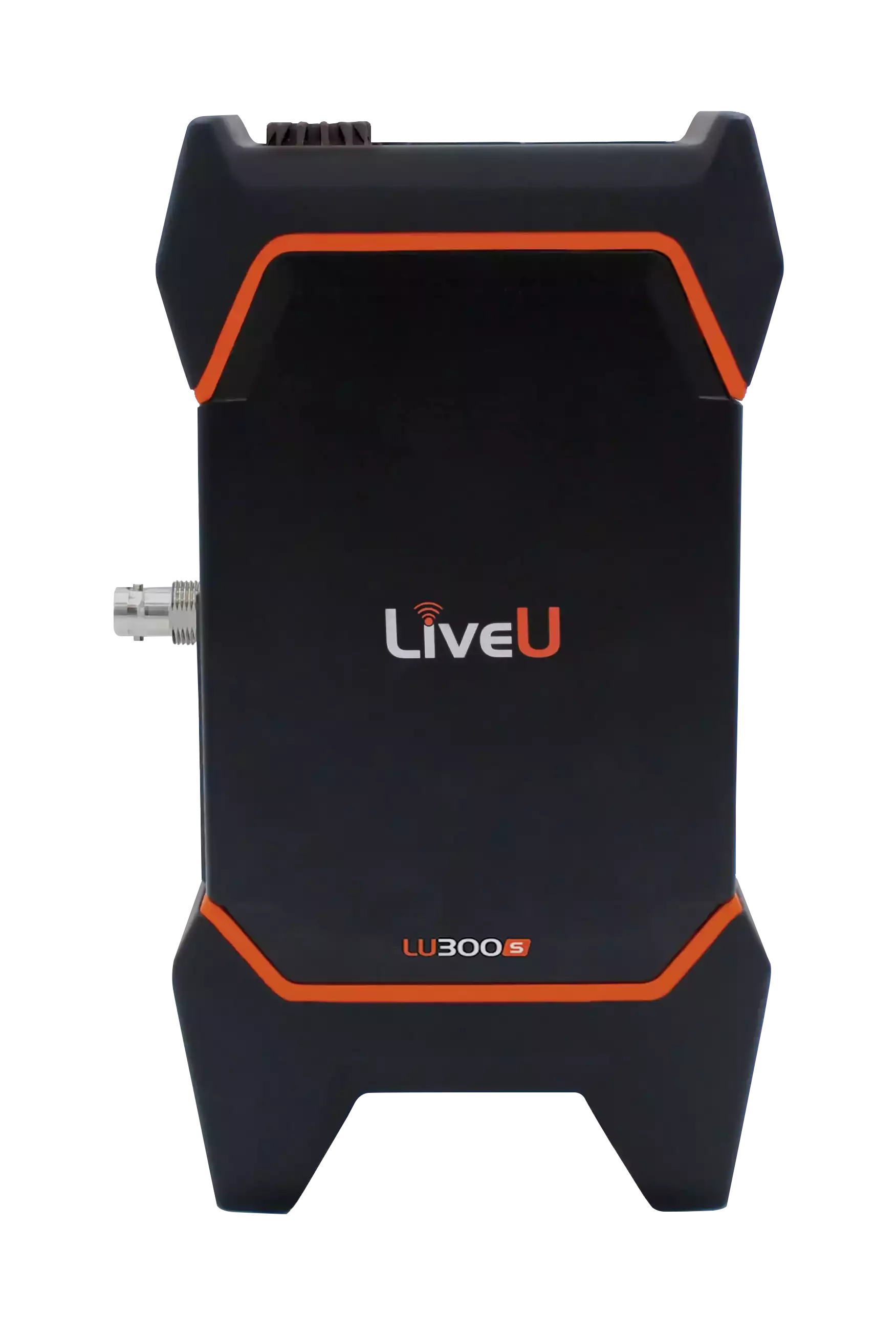

Powerful small-size portable 5G video transmission unit.
// Features of LU300S- Up to 4 x 5G/4G modems for the highest reliability.
- Dual SIM support offering a hybrid local/roaming unit option.
- Up to 4Kp60 10-bit HDR transmission for optimal color depth & richness.
- Up to 8 audio channels for richer audio production.
- Compact & lightweight: weighing just over 2 lb/900g.
- Rich remote production tools: Tally Light, Audio Connect, IP Pipe.
- 2.2” display with excellent visibility & control.

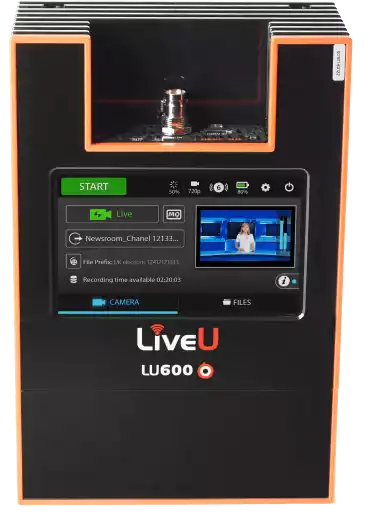

LiveU LU600 - The LU600 field unit has set the standard for portable video transmission, providing excellent video performance with extreme bandwidth efficiency.
// Features of LU600- Superior 1080p and 4Kp50/60 video quality – up to 20Mbps.
- ~50% bandwidth reduction using Hardware based HEVC technology
- Excellent performance at low bitrates.
- Enhanced field studio communication: Video Return, Tally Light & Audio Connect.
- 4 hours battery time.
- Dual SIM option enabling dual purpose local / roaming unit.
- Up to 8 audio channels.
- LU 600 with external antennas: for stronger connectivity in low reception situations.
- Weight : 1.08 kg
|

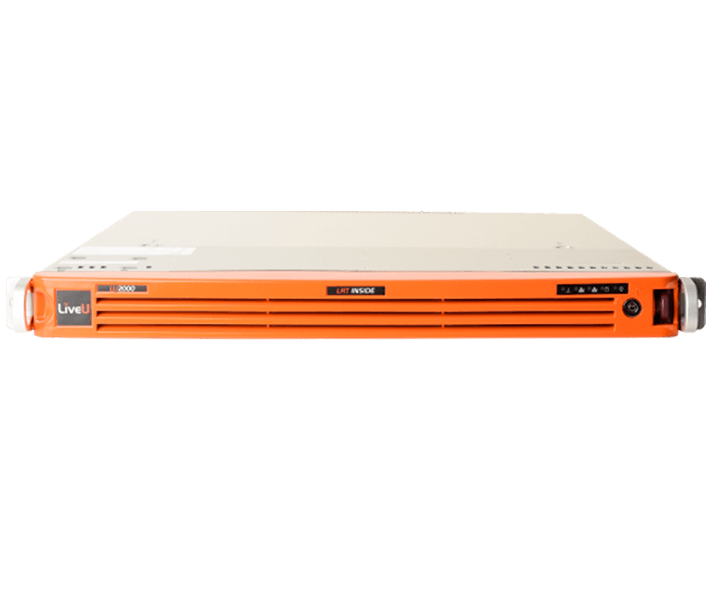

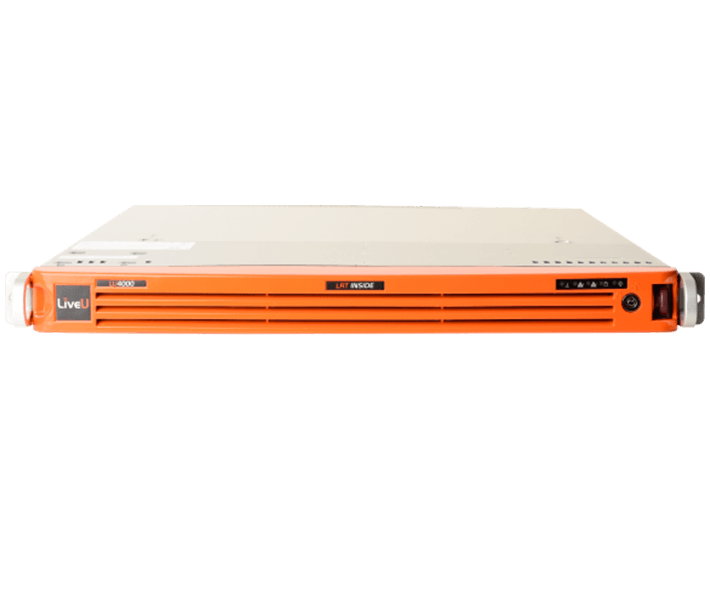

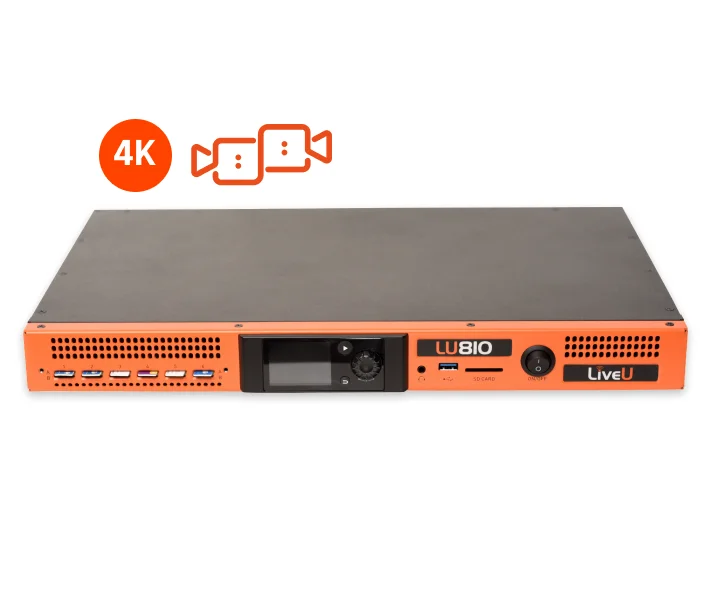

Video Resolutions |
: |
4K, HD, Standard, PAL, NTSC. |
|
Form Factor |
: |
1U rackmount. |
|
Simultaneous Bonding |
: |
6 internal 4G/5G modems, 2x Ethernet ports for connection to LAN and satellite (BGAN/KU over IP), 2 WiFi. |
|
Network Interfaces |
: |
2RJ-45 Ethernet ports and 2.4/5GHz WiFi (802.11 a/b/g/n/ac). |
|
Operational Modes |
: |
Live: ultra-low latency mode. Live and Store: live streaming with the local high-quality recording on unit. Bonded file transfer Databridge: high-speed mobile broadband connectivity. Video Return: sub-second video return over an external HDMI. Multi Camera: Multi -HQ and Switcher mode. |
|

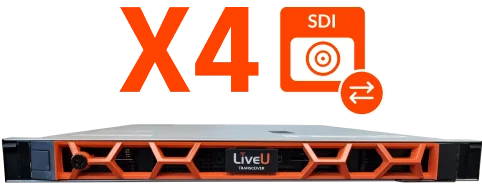

Video Resolutions |
: |
4K, HD, Standard, PAL, NTSC. |
|
Form Factor |
: |
1U rackmount. |
|
Simultaneous Bonding |
: |
6 internal 4G/5G modems, 2x Ethernet ports for connection to LAN and satellite (BGAN/KU over IP), 2 WiFi. |
|
Network Interfaces |
: |
2RJ-45 Ethernet ports and 2.4/5GHz WiFi (802.11 a/b/g/n/ac). |
|
Operational Modes |
: |
Live: ultra-low latency mode. Live and Store: live streaming with the local high-quality recording on unit. Store and Forward: three quality levels. Bonded file transfer. Databridge: high-speed mobile broadband connectivity. Video Return: sub-second video return over an external HDMI. Audio connect intercom. |
IP CLOUD LIVE VIDEO SERVICES

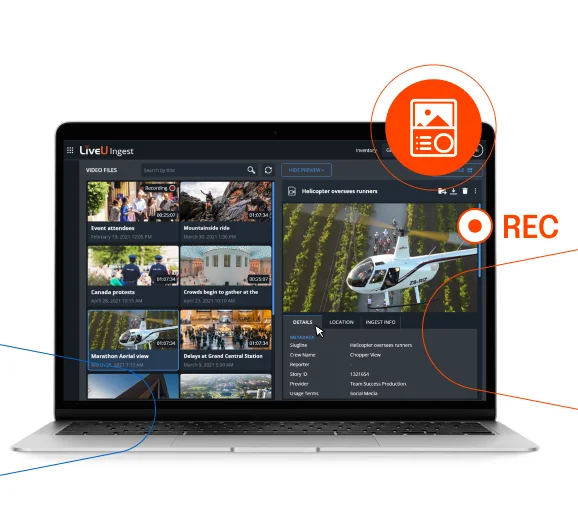

LiveU Ingest
Automate your story metadata association
LiveU Ingest is an automatic recording and story metadata tagging solution for live video. Powered by the LiveU cloud video platform, LiveU Ingest allows you to process video faster while significantly cutting your production costs.
Air Control
Elevating the Live Production Workflow
Air Control is a broadcast orchestration cloud solution, part of the LiveU platform, designed for live production workflows. The solution effortlessly delivers flawless live programs of any size using existing teams and tech infrastructure.

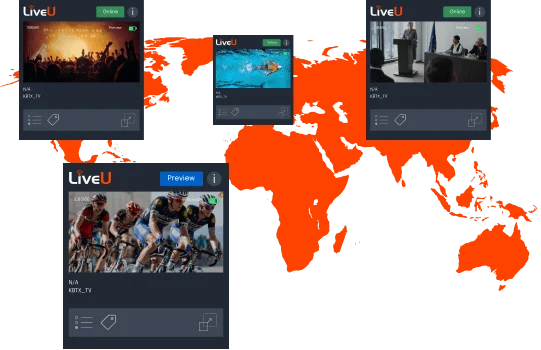

LiveU Matrix
The LiveU Matrix next-gen cloud video platform allows you to share and receive high-quality, lowlatency live feeds with, and from, broadcasters and other stakeholders around the globe – inside or outside your organization.
FAQ
LiveU is a company that provides a variety of Broadcast, Production, and Online Solutions, as well as developing some of the most effective solutions for live video coverage and broadcasting to almost any location on the planet.
The LiveU Solo allows you to take any camera's HDMI output (an alternate version with an additional SDI input is also available) and broadcast it to whatever destination you want using the LiveU streaming interface. You may stream to your followers with the Solo as long as you have an internet connection, whether it's wirelessly via a router, over a network cable, or even via your mobile phone's tethering features.
LiveU Solo+ is a professional-grade wireless video encoder that allows you to stream to Facebook Live, YouTube, Twitch, and other popular social media networks and online channels with a single click. The Solo+'s compact design and light weight make it ideal for mobile use, allowing you to stream live video from anywhere.
Yes! Baseband video output is available on most video switchers, even those that are software-based. Newtek Tricaster, which features HDMI and SDI output options, Blackmagic Design ATEM switchers with SDI output, and Telestream Wirecast, which can output from HDMI on your laptop or SDI via an IO device, are also examples. Sling Studio, a wireless hardware/software switcher that works nicely with LiveU Solo's HDMI output, and Switcher Studio, an iPad app that can output from the iPad via Apple's lightning to HDMI output dongle, are two other examples.
The LiveU Solo is a powerful hardware encoder that excels at encoding and delivering remote streams. It's a powerful gadget that supports up to 5G 4K HEVC streaming. This encoder is well-known around the world, having contributed to enormous streams such as Presidential events, World Cups, Olympic events, Super Bowls, and other major sporting events.
Yes, you'll need an encoder for live streaming because most video sources aren't designed for live streaming: video cameras are designed to record large, heavy video files, not really for live streaming.
An encoder compresses and encodes audio and video content from numerous sources used during a live event, such as a camera, microphone, desktop screen capture, and so on, into a suitable digital format before sending it to Microsoft Stream for live streaming to your audience.
