Founded in 2012, Intech Additive Solutions Pvt Ltd is the first Indian Original Equipment Manufacturer (OEM) to develop and supply Metal 3D Printers. The company is redefining the way things are designed and manufactured and allows creation of lighter & more complex designs by providing a complete eco-system right from concept design, material selection to printing , post processing and testing of metal parts.
Intech Printers

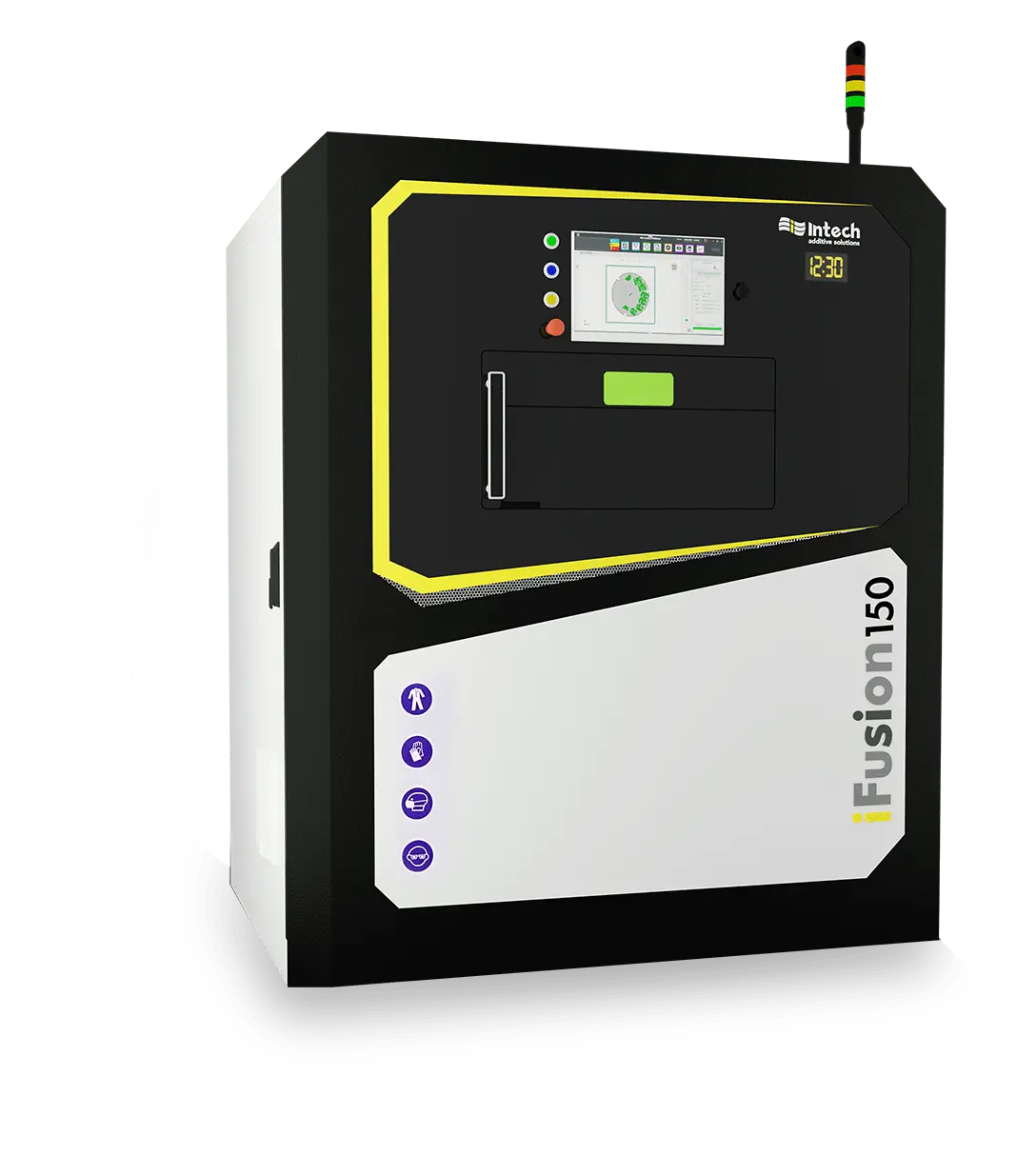

iFusion150
Intech's iFusion150, is a high-performance small format Laser Powder Bed Fusion (LPBF) Metal 3D Printer. It offers the largest build envelope, combined with the highest-in-class laser power to deliver the maximum productivity. Powered by gold standard IPG Lasers, ScanLab Optics, and Beckhoff Automation, iFusion150 enables OEMs to seamlessly transition into Additive Manufacturing.
Request a quoteiFusion150 |
|
| Machine Series | iFusion150 |
|---|---|
| Technology | Laser Powder Bed Fusion (LPBF) |
| Build Volume (mm) Laser | 150mm dia. x 180mm height |
| Type | Yb - Fibre Laser |
| Precision Optics Laser | F-theta lens, high speed scanner |
| Power | 500 Watts |
| Scan Speed | 7 m/s |
| Focus Diameter | 45 - 80 microns, factory set |
| System dimension (mm) | 1550mm x 1250mm x 2350mm |
| Weight | Approx. 1600 Kgs |
| Software | AMBuilder - Build Preparation Softwore AMOptoMet (Optional) - Parameter Optimization Software |
| Materials | Aluminium, Inconel, Stainless Steel, Maraging Steel, Cobalt Chrome, Titanium, Copper (Additional materials available on request) |
| Standard Accessories | Chiller, Wet Separator |
| Optional Accessories | N2 Generator, UPS, Computer, Shot Peening Machine, Wire EDM |

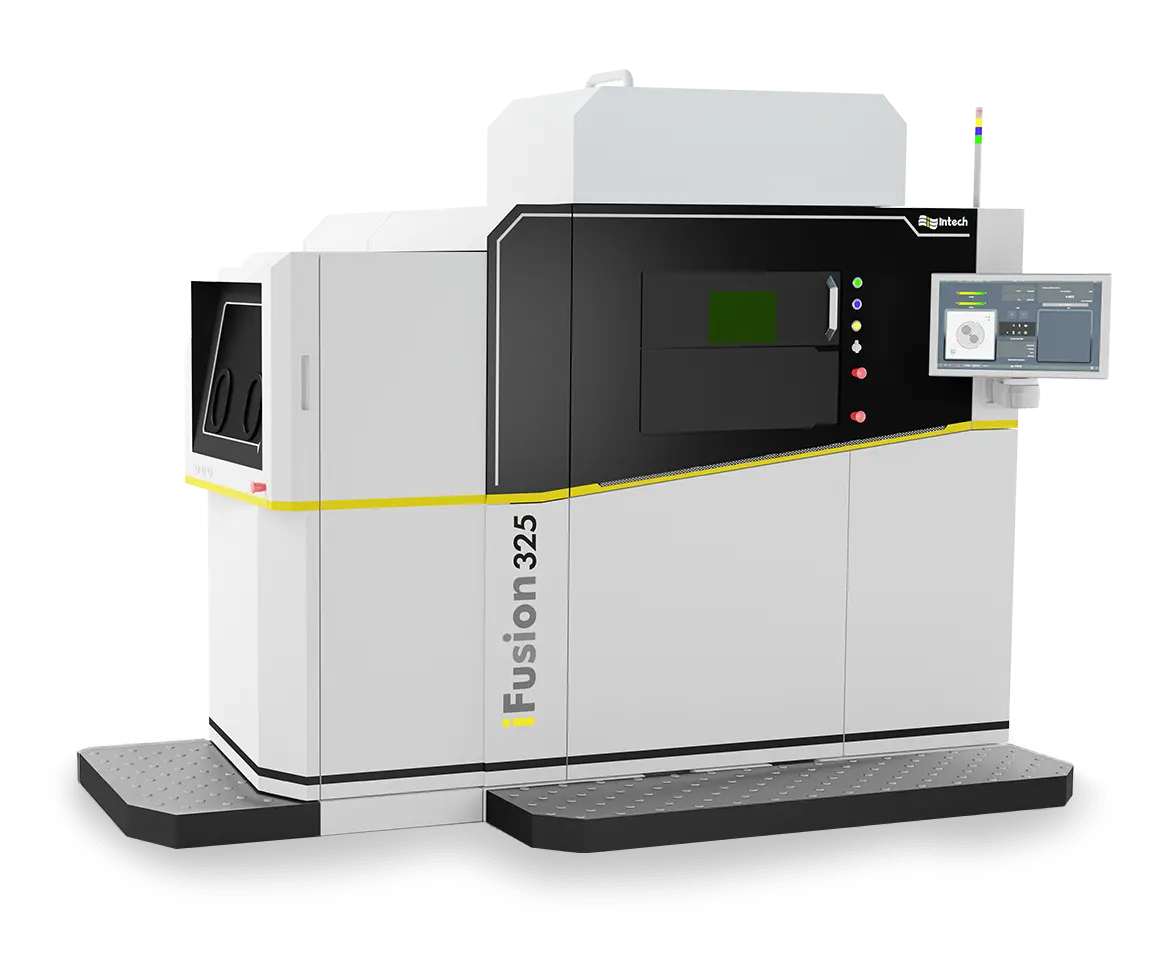

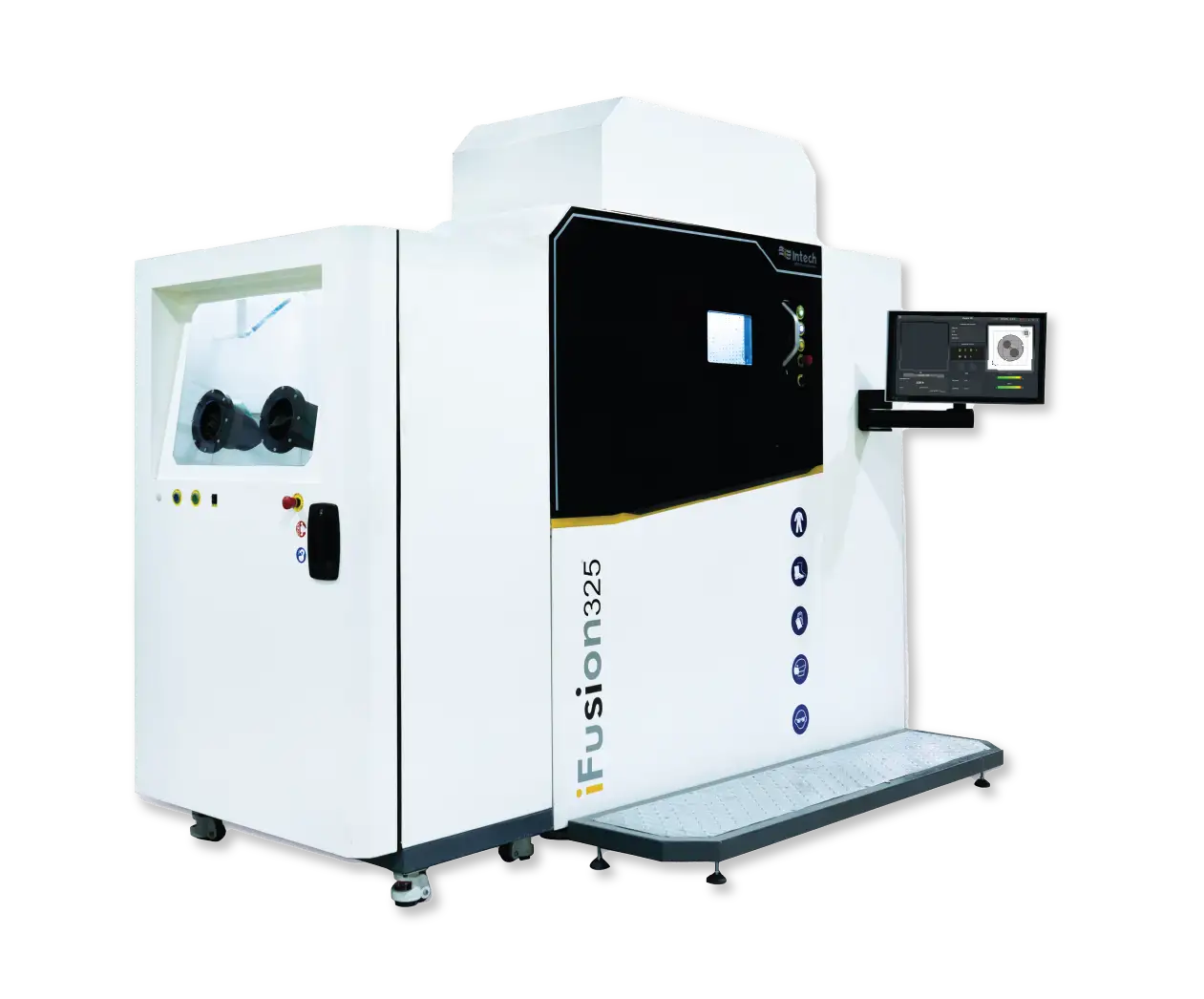

iFusion325
The iFusion325 has an optimized Cost-per-Part (CPP) that matches the conventional manufacturing processes. It enables the production of highly precise and high-quality printed parts with a wide range of materials.
Request a quoteiFusion325 |
|
| Machine Series | iFusion325 |
|---|---|
| Technology | Laser Powder Bed Fusion (LPBF) |
| Build Volume (mm) Laser | 325mm x 325mm x 420mm |
| Laser Type | Yb - Fibre Laser |
| Laser Power | 500W |
| Build Platform Heating | 2000C |
| Scan Speed | 7 m/s max |
| Focus Diameter | Min. 80um |
| Software | AMBuilder (Integrated) - Build Processing Software AMOptomet (Optional) - Parameter Optimization Software for Existing and New Alloys |
| Materials | Aluminium, Cobalt Chrome, Stainless Steel, Maraging Steel, Inconel Alloys, and Titanium |

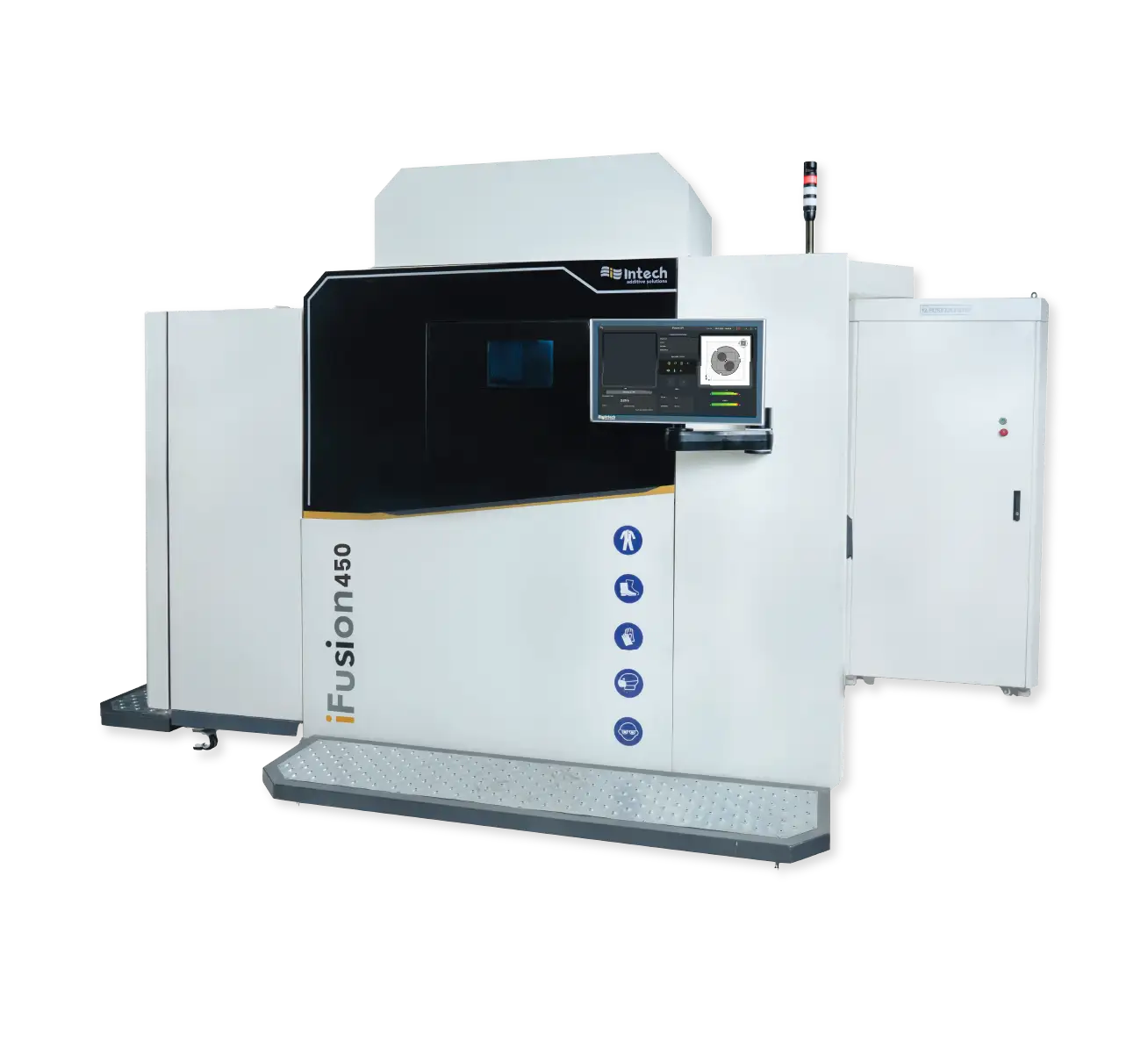

iFusion450
Intech's iFusion450, is a high-performance large format Laser Powder Bed Fusion (LPBF) Metal 3D Printer. Powered by gold standard IPG Lasers, ScanLab Optics, and Beckhoff Automation. iFusion450 enables OEMs to seamlessly transition into Additive Manufacturing.
Request a quoteiFusion450 |
|
| Machine Series | iFusion450 |
|---|---|
| Technology | Laser Powder Bed Fusion (LPBF) |
| Build Volume (mm) Laser | 450mm x 450mm x 450mm |
| Laser Type | Yb - Fibre Laser |
| Laser Configuration |
Single - 1 X 500 W/ 700 W/ 1000 W Dual - 2 X 500 W/ 1000 W Quad - 4 X 500 W Customizable as per Request |
| Focus Diameter | Min. 80um |
| Software |
AMBuilder (Integrated) - Build Processing Software AMOptomet (Optional) - Parameter Optimization Software and Build Control |
| Materials |
Aluminium, Cobalt Chrome, Stainless Steel, Maraging Steel, Titanium and Inconel Alloy |
| Optional Accessories |
Powder Sieving - Automatic / Semi-automatic options Long life filter |
FAQ's
Intech Additive Solutions offers cutting-edge additive manufacturing solutions that can revolutionize your production processes. Our products include Metal 3D printers, designed to enhance efficiency, reduce costs, and provide innovative manufacturing capabilities.
To purchase Intech Additive Solutions Products from ARK Infosolutions, you can contact our sales team directly or visit our website. We will guide you through the available options and help you select the best products for your specific manufacturing needs.
