Dolby

Dolby provides innovative technologies, products,

Dolby Laboratories has been a leader in audio innovation. Dolby revolutionizes the way audiences enjoy entertainment anywhere.

Beginning with Dolby noise reduction, Dolby Laboratories has developed many groundbreaking technologies, advancing the science of audio reproduction. From the cinema to your living room, Dolby had transformed the entertainment experience. Today, Dolby technologies can be found in cinemas, professional recording studios, video games, laser discs, DVDs mobile media, digital broadcast TV, digital cable, and satellite systems.

Dolby provides innovative technologies, products, and services empower filmmakers and exhibitors to deliver a richer experience. with Dolby Digital Plus Technology, the most comprehensive audio solution, Dolby empowers content creators, developers, sound engineers, distributors, and the device manufactures to provide a superior listening experience to audiences.

Dolby Offers comprehensive hardware/Software solutions for various segments in Professional areas like Broadcast, Cinema, Gaming monitors, Pro audio etc. in Consumer segment, Dolby Provides solution in home theaters gaming, PC's, tablets, Mobile Phones etc.

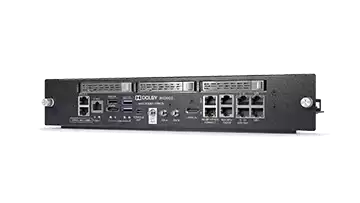

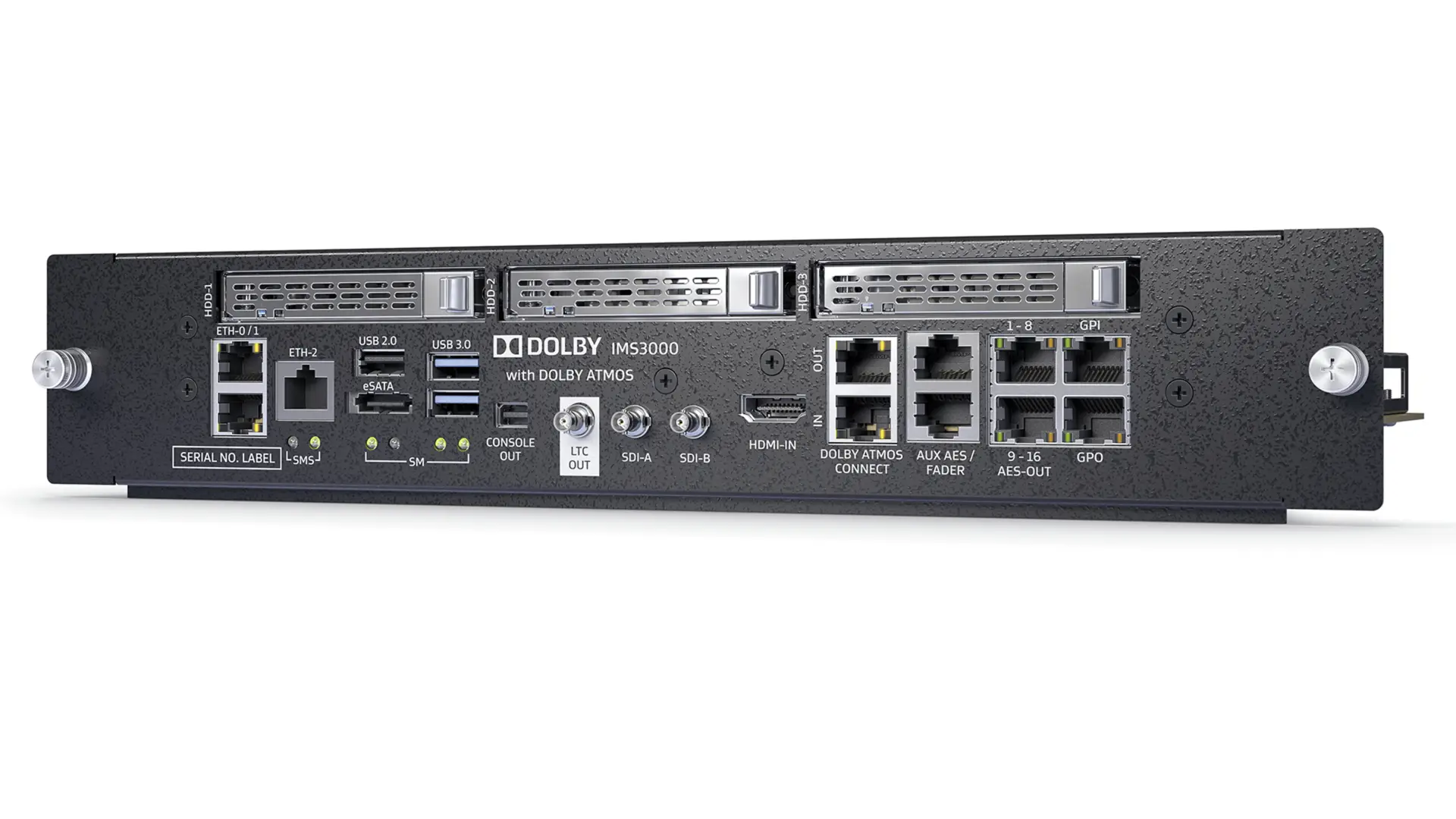

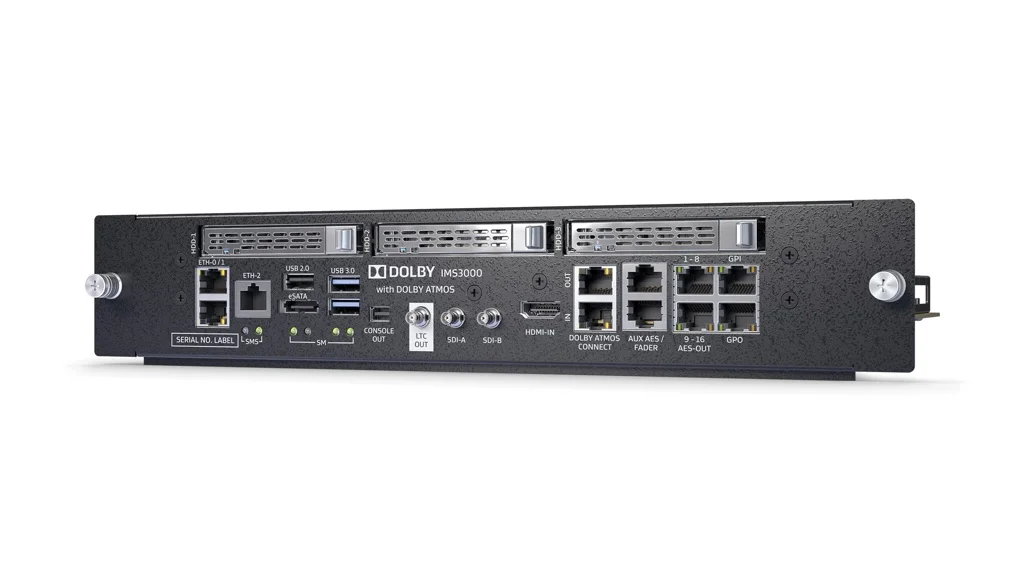

Dolby Integrated Media Server IMS3000

A flexible, reliable image and audio server in one.

Save space, money, and deliver an unforgettable experience for your guests. Start with Dolby Audio™ 5.1 or 7.1 sound now, and unlock the power of Dolby Atmos® whenever you’re ready to upgrade. With flexible storage options, and a new robust feature set, the IMS3000 is today’s server of choice.

A robust platform for today, the right investment for tomorrow.

Features/Benefits:

  • Low cost of ownership (maintenance, power consumption, simplified system design)
  • Playback for SMPTE and INTEROP digital cinema packages (DCP) at bit rates up to 500 Mbps

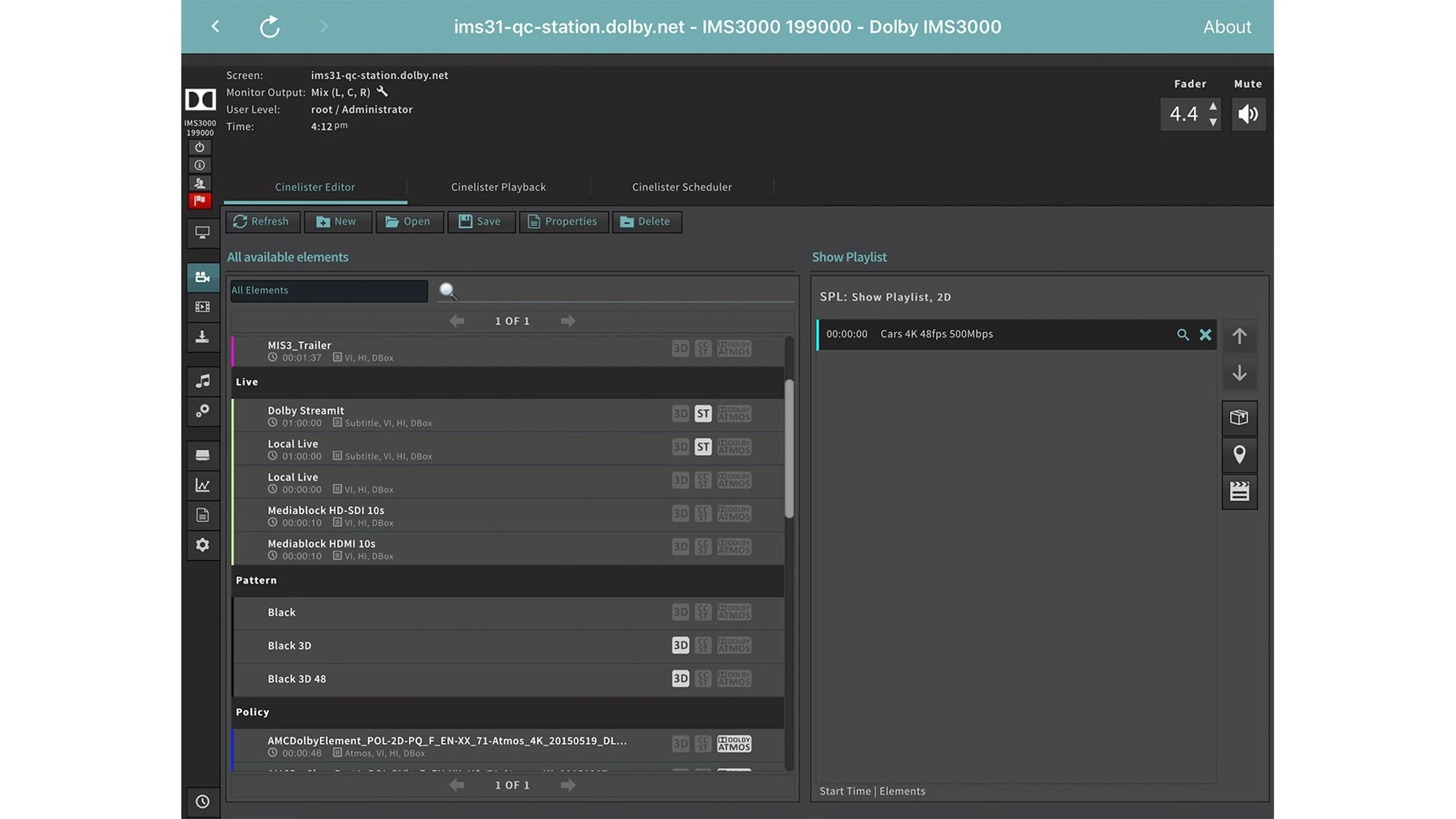

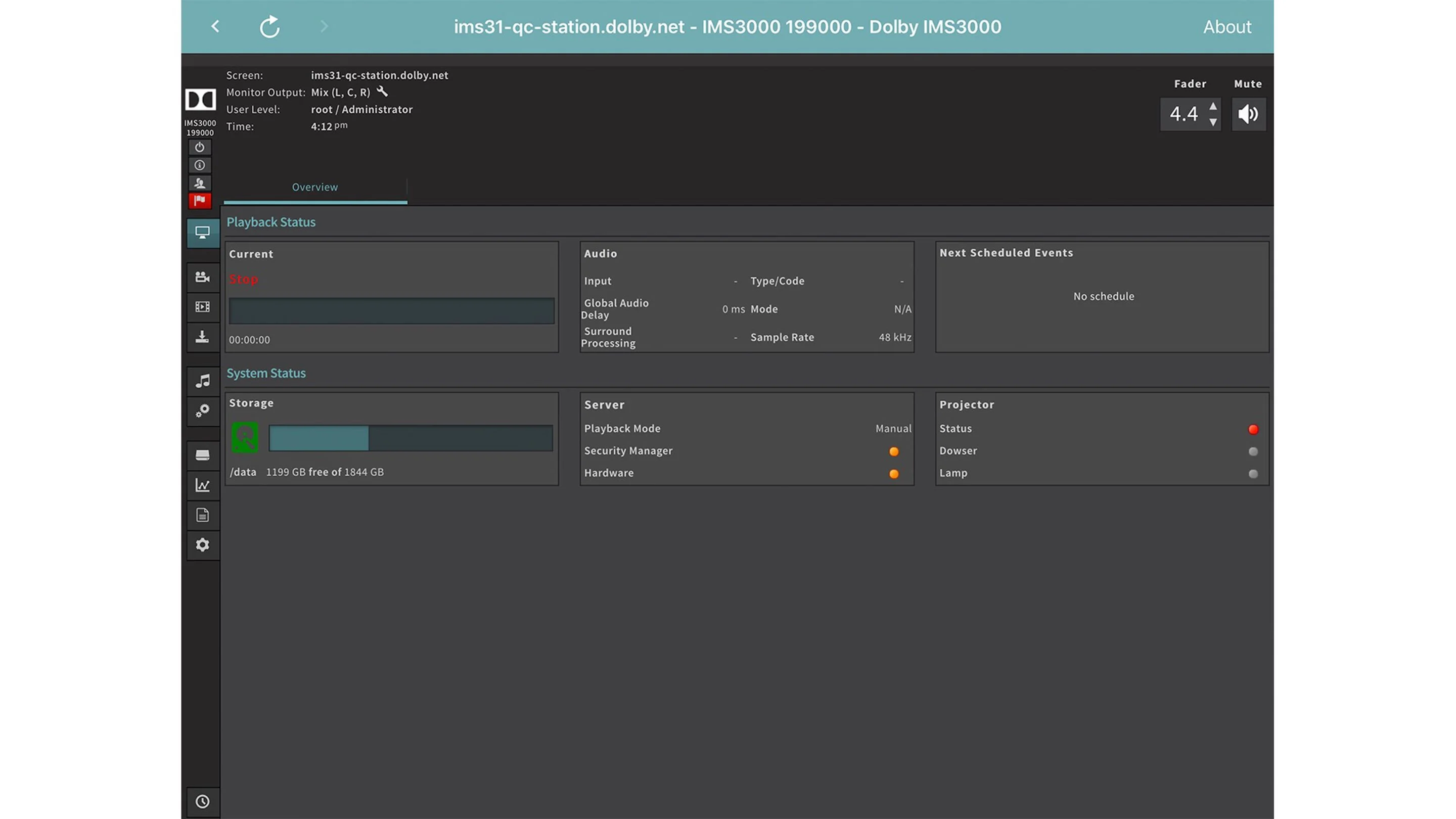

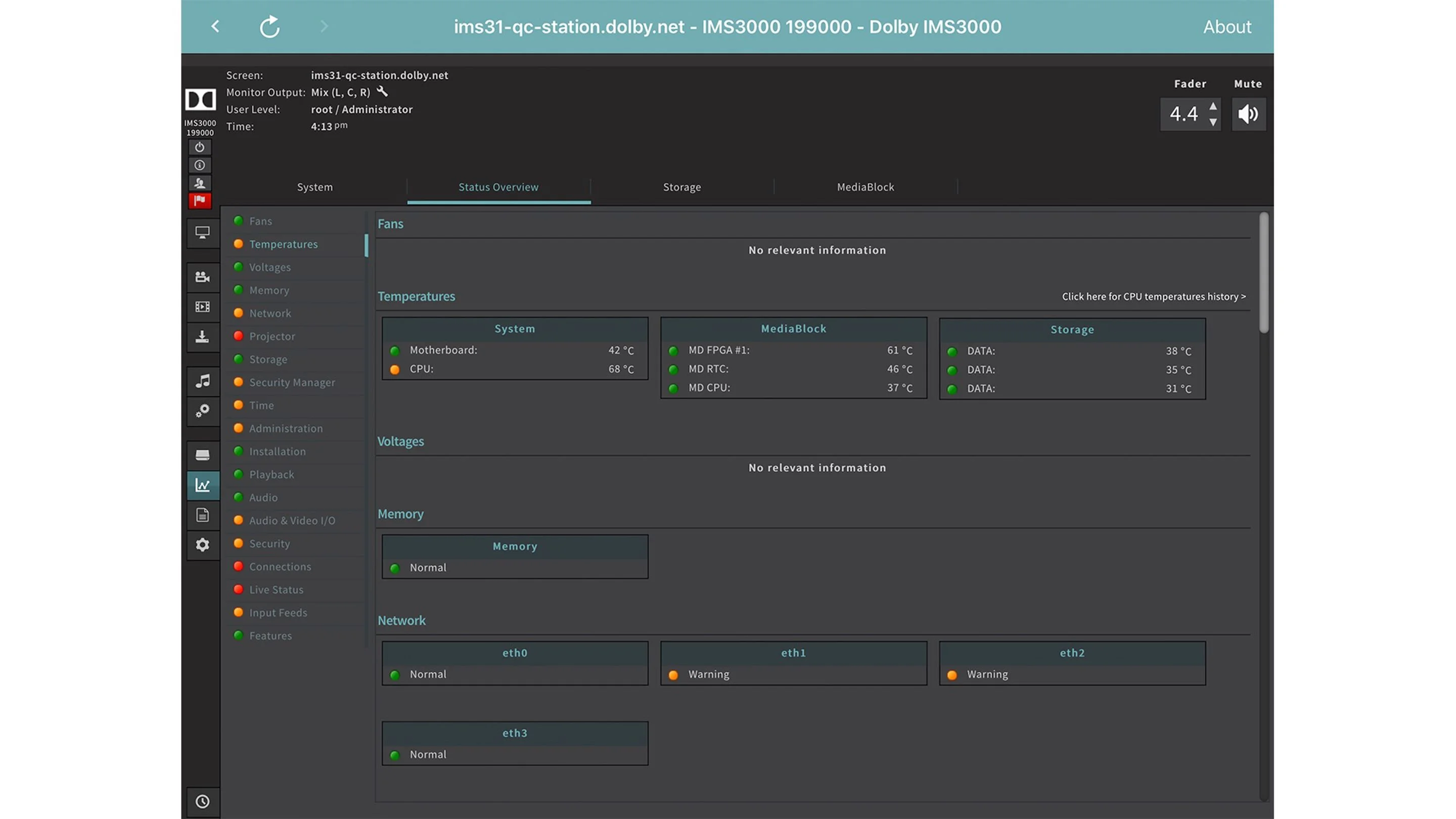

  • Web-based UI allows easy access from anywhere on the theatre network Access via Bluetooth from your mobile device. Get the App - Cinema Server Control on Google Play and Apple Store - Requires separate purchase of USB Bluetooth adapter. Please contact Dolby Support for approved models.
  • Single-board design
  • 2 TB of internal storage with RAID 5 protection and convenient front-panel access for hard drive replacement
  • Optional 10.5 TB of total storage with External NAS upgrade
  • Hot-swappable hard drives
  • Scan network for content to ingest
  • Drag-and drop scheduler
  • Drag-and-drop playlist builder
  • Complete integrated audio processor with optional enablement for playback with full Dolby Atmos®
  • Support for accessibility products including Dolby Fidelio and CaptiView or other SMPTE ST430-10 devices
  • Dolby and RealD® ghost busting (user selectable)
  • Ingest through eSATA, USB 3.0, or Ethernet (up to 500 Mbps)
  • 4 × GPI
  • 6 × GPO
  • Linear timecode (LTC) output
  • Live-event Ethernet stream support
  • Internal scaling and de-interlacing up to 4K
  • JPEG 2000, MPEG-2, H.264 decoding
  • 4K 60 fps (On select NEC projectors and LED walls)
  • DCI-compliant
  • Play from Shipping Drive
  • HDMI 2.0 4K 60fps with HDCP 2.2
  • HDMI Rec.2020 input to P3 color gamut conversion
  • HDMI 4K downscaling to 2K
  • Dolby Pngest
  • Play while ingest
  • Ingest while IMS3000 is powered down**

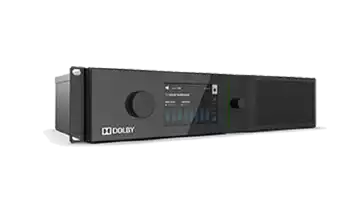

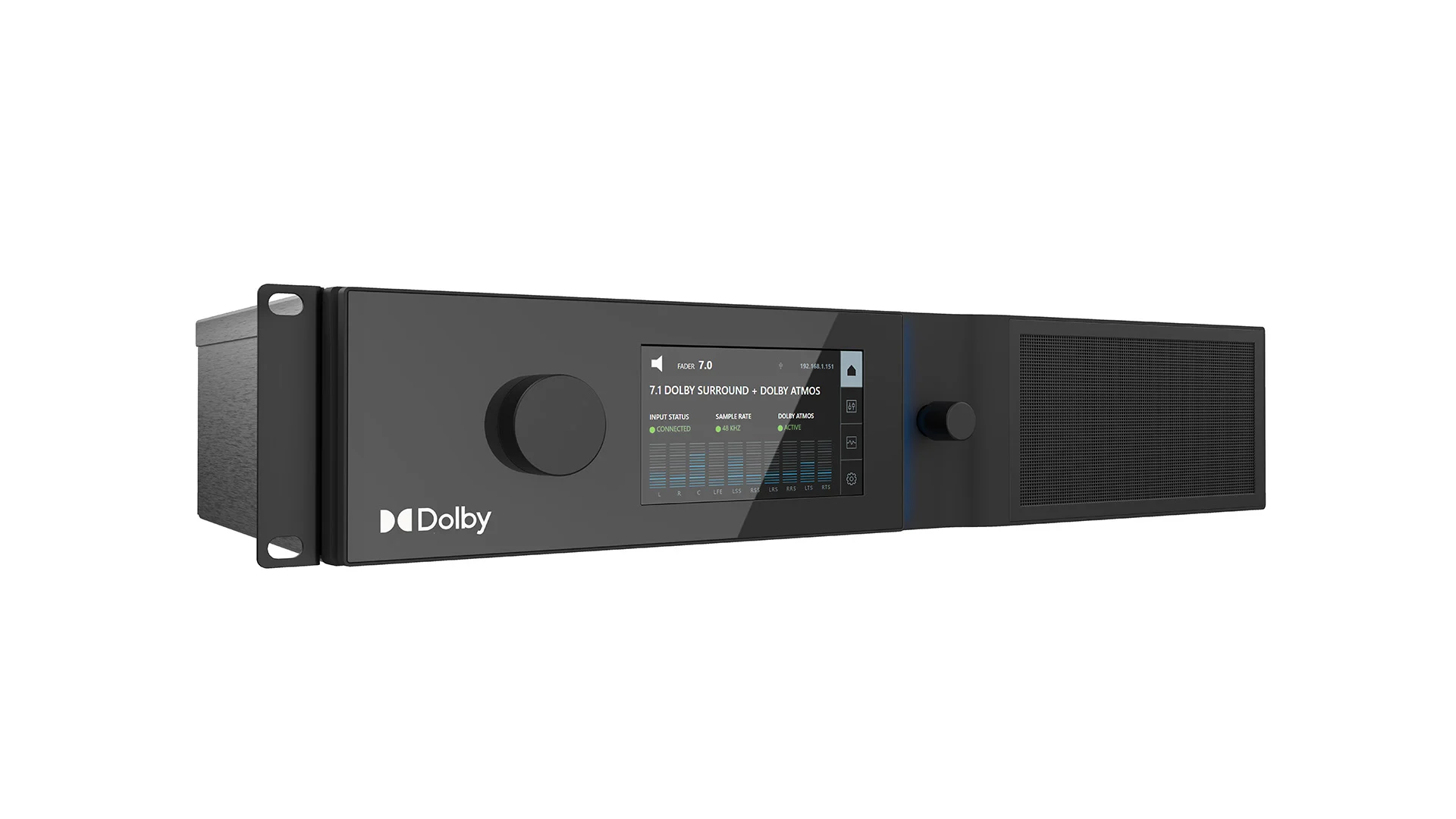

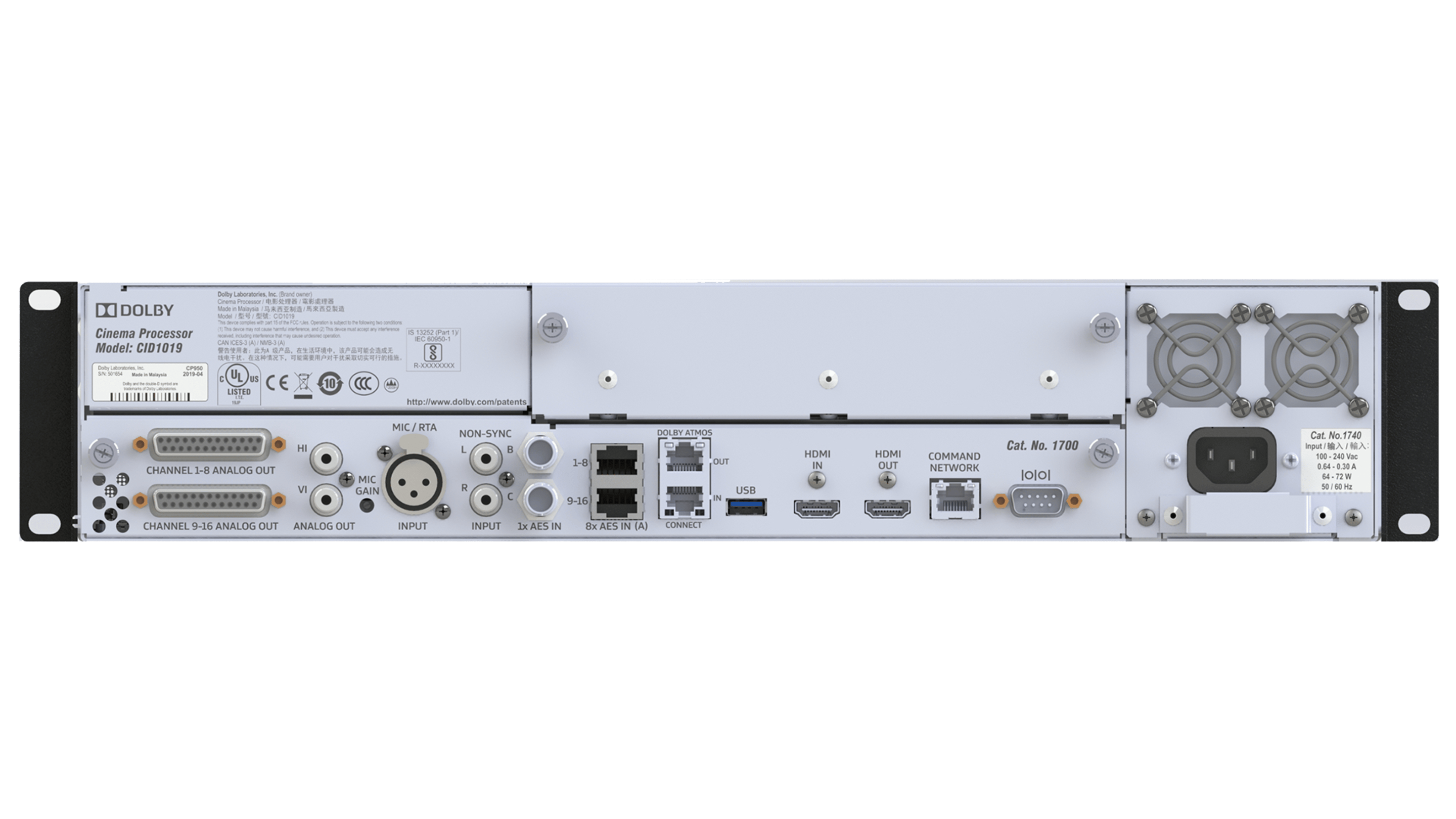

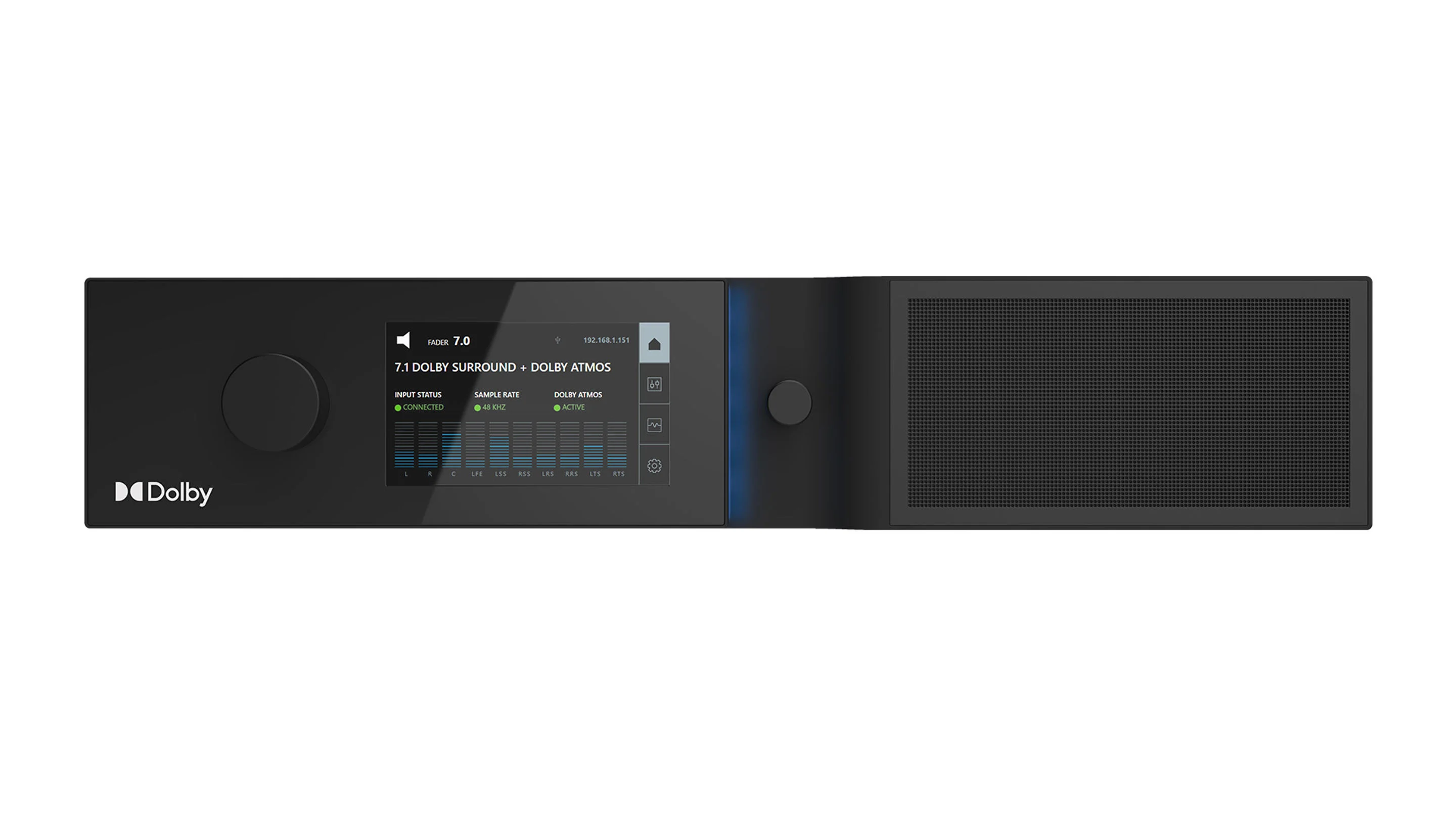

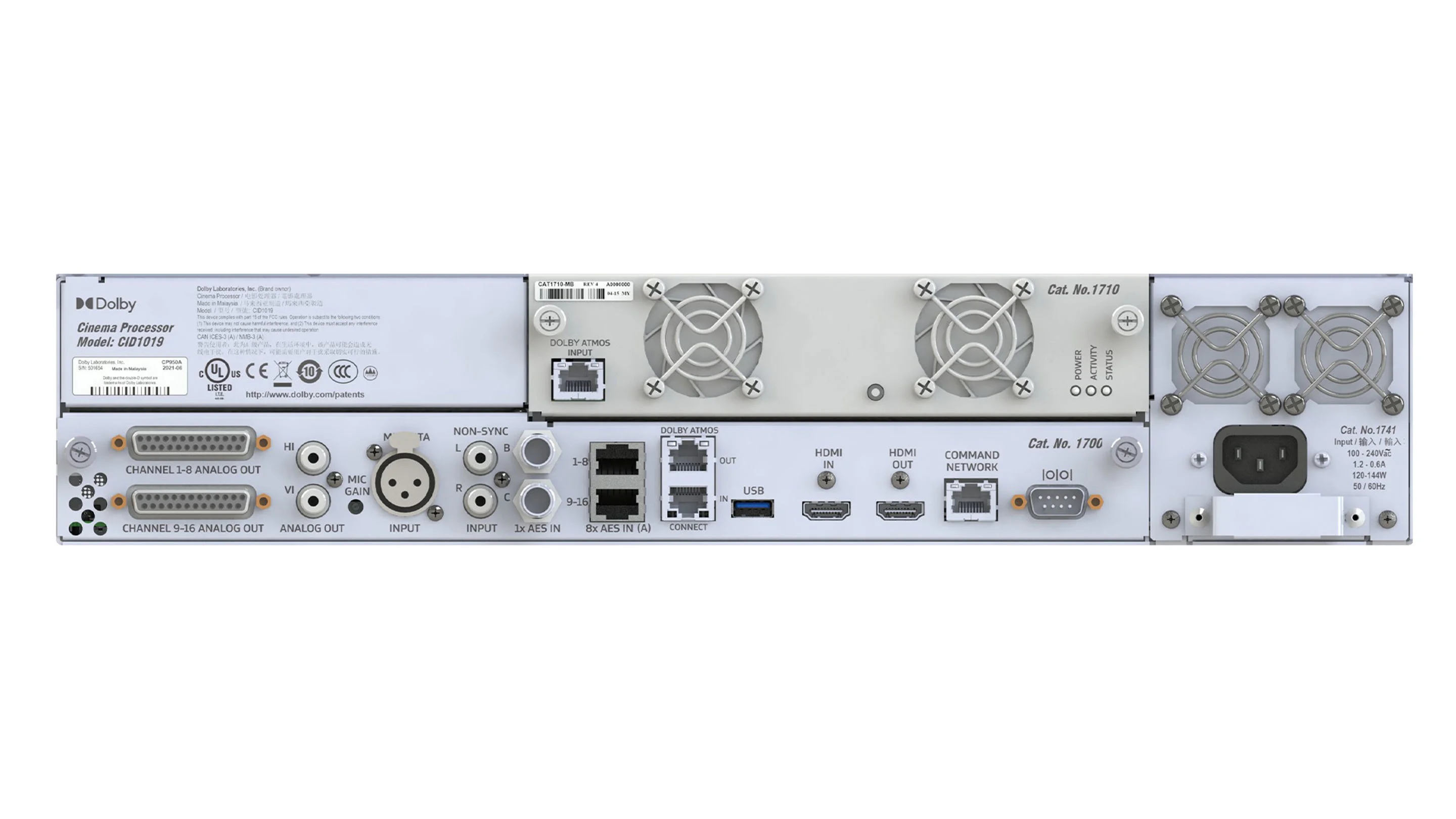

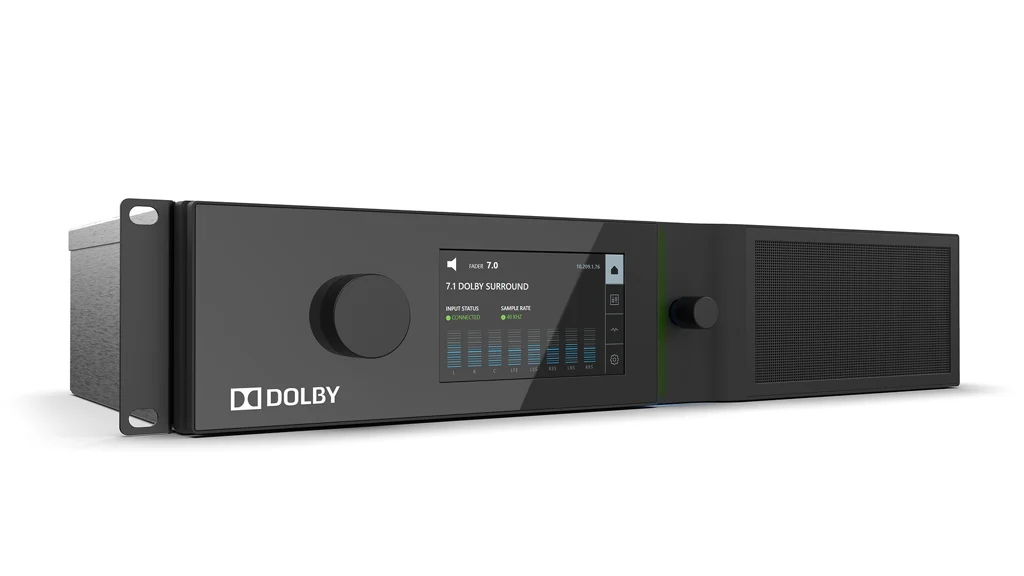

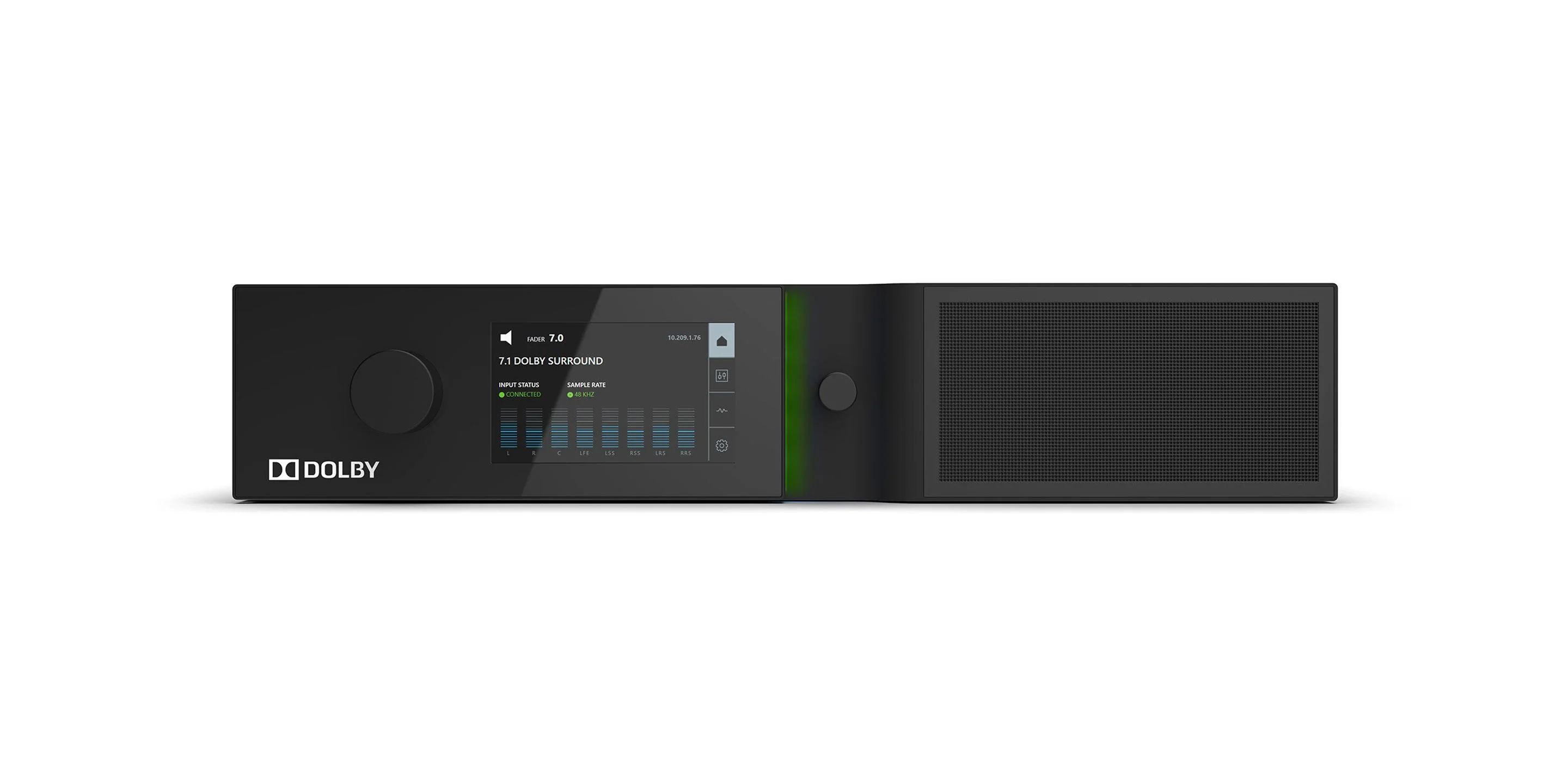

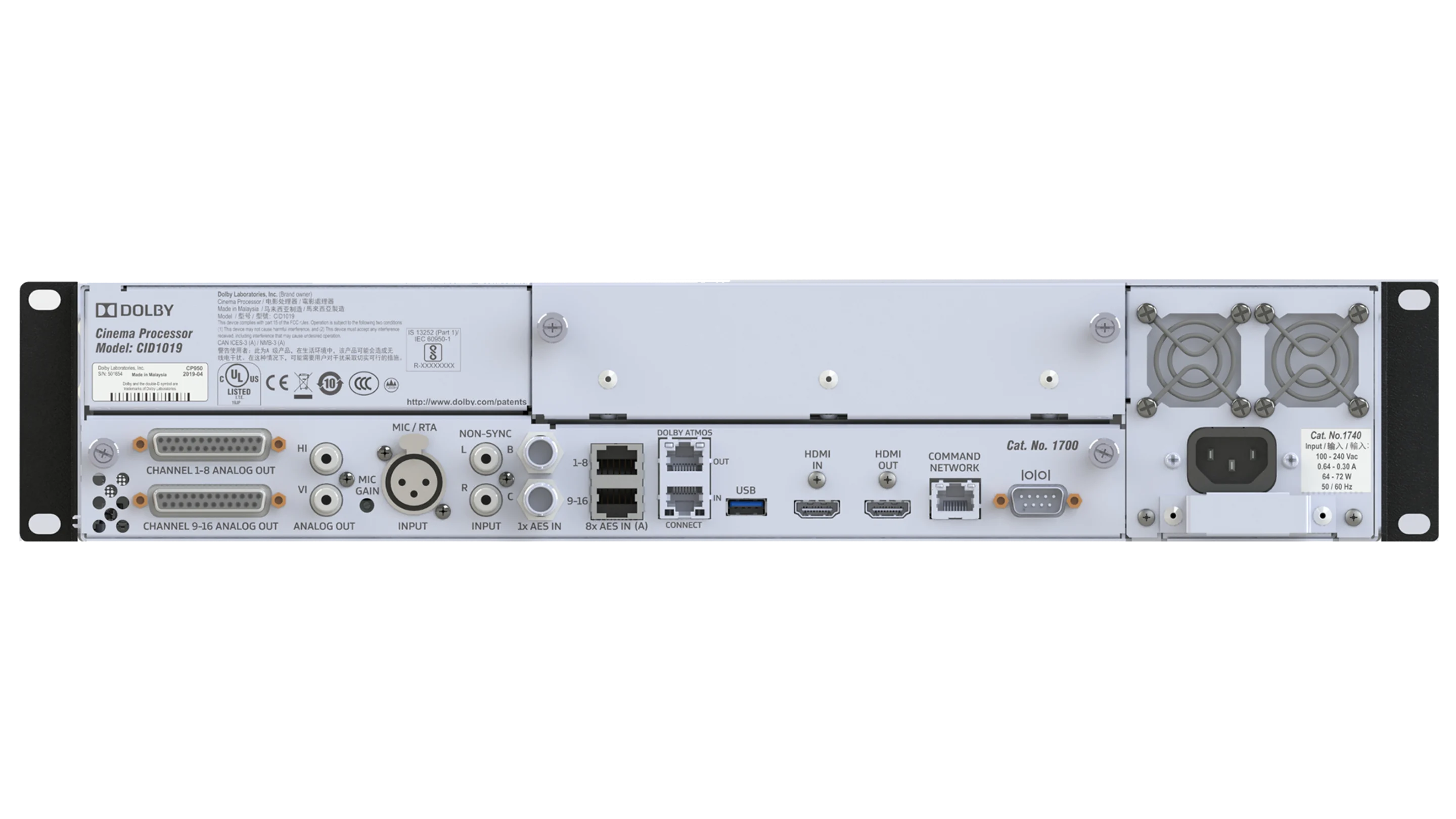

Dolby Cinema Processor CP950

The Dolby Cinema Processor CP950 is our newest innovation in Dolby’s market-leading lineage of cinema processors. It’s designed with more of the capabilities you want — and less of those you don’t — in a flexible, modular, cost-efficient solution.

The CP950 supports our most seamless means of installing Dolby 5.1 and 7.1 surround, and includes an expansion slot for future upgradability to Dolby Atmos* to deliver the most memorable and creatively accurate sound experience for your guests.

The CP950 was designed with our exhibitor partners’ operations in mind, so it’s easy to use, install, and service. A brand-new feature set includes a built-in booth monitor, an intuitive front-panel user interface, a color touchscreen, and a web interface for enhanced access and usability. Other features optimized for today’s cinemas include internal loudspeaker crossover, a high-resolution multi-rate EQ, 16 channels of analog output, audio-over-Ethernet supporting both AES67 or Blu-Link protocols.

Features/Benefits:

  • Upgradeable to full Dolby Atmos capability (with future Dolby Atmos expansion card)*
  • Built-in booth monitor to simplify operations and audio quality assurance
  • Touchscreen front panel interface for easy control
  • Easily integrates with Dolby Multichannel Amplifier
  • Web user interface for remote configuration and control
  • Dolby Atmos Designer compatibility for setup and precise system calibration
  • Internal crossovers to enhance audio quality and reduce installation cost
  • High resolution multi-rate EQ
  • Modular mechanical design allows for field upgradability and serviceability

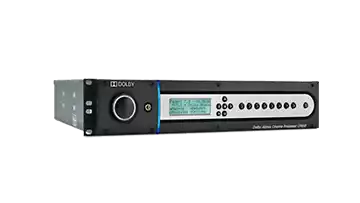

DOLBY ATMOS CINEMA PROCESSOR CP850

Dolby Atmos provides a unique approach to cinema audio, giving filmmakers unprecedented power and freedom to realize their creative visions. In your cinema, Dolby Atmos gives audiences moving audio that flows all around them, a natural and enveloping sound experience that fully reflects the original artistic concept.

Features/Benefits:

  • Rendering up to 64 speaker feeds provides an unmatched audience experience.
  • The latest Dolby® Lake EQ and 1/12th octave EQ resolution optimizes playback for all content types, even in acoustically challenged environments.
  • Flexible configurations provide all the common I/O interfaces for the modern digital cinema.
  • Automated calibration ensures consistent, high-quality playback for each movie.
Download CP850 Brochure

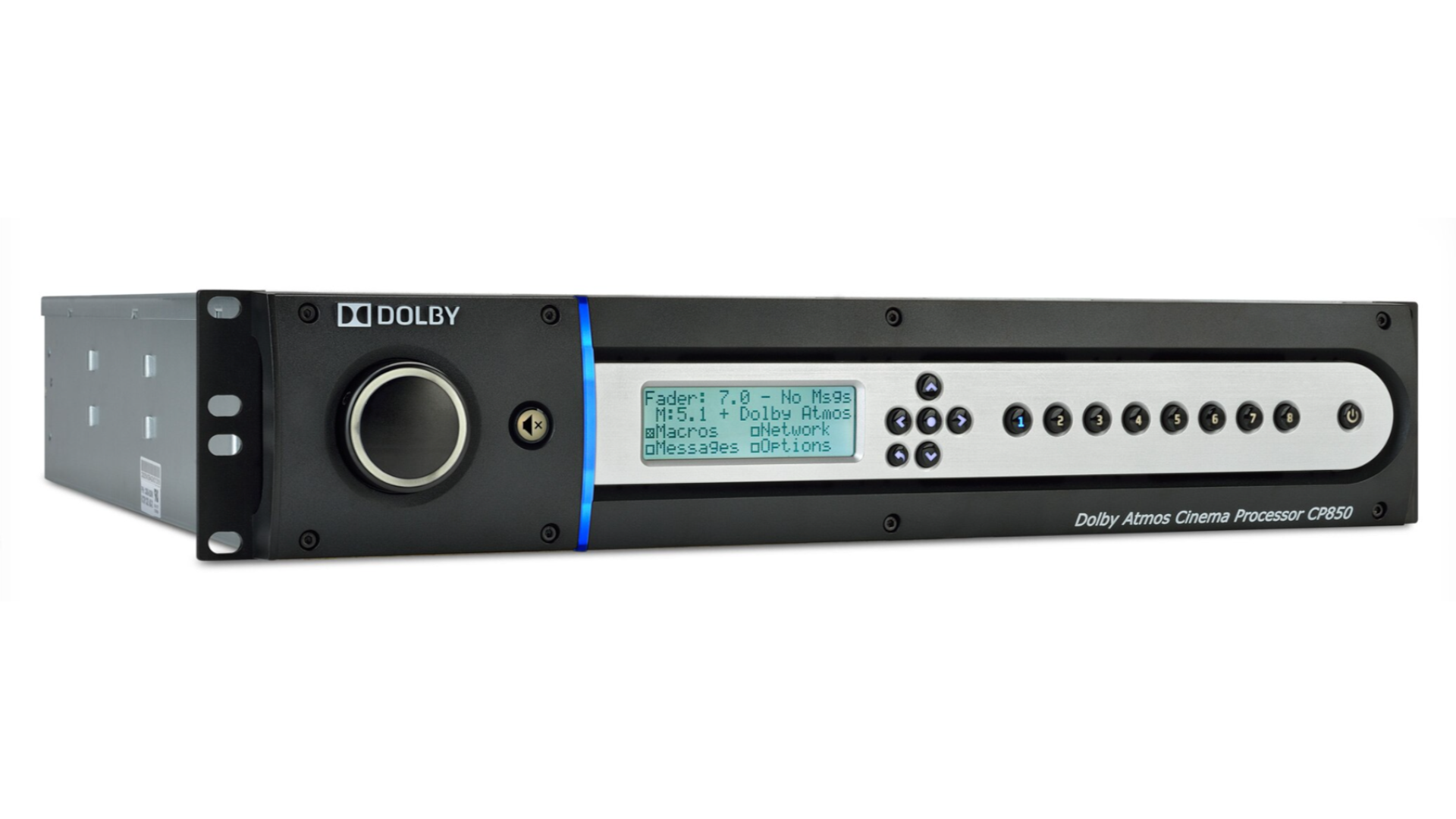

DOLBY ATMOS CINEMA PROCESSOR CP850 BASE

Dolby Atmos represents the future of cinema audio, but we recognize that equipping a cinema for a fully immersive Dolby Atmos experience may not be practical for every situation today. For that reason, we now offer the Dolby Atmos Cinema Processor CP850 Base as well as the Dolby Atmos Cinema Processor CP850.

The Dolby Atmos Cinema Processor CP850 Base will play back traditional Dolby Surround 7.1 and 5.1 formats as well as render select Dolby Atmos titles to a Dolby Surround 7.1 configuration. It includes the same advanced equalization and other audio features as the Dolby Atmos Cinema Processor CP850, so you can ensure that your cinema is ready for the future while adding a number of sound improvements now. Dolby Atmos marketing support is exclusive to theatres with the full Dolby Atmos Cinema Processor CP850.

As with the full Dolby Atmos Cinema Processor CP850, the CP850 Base includes:

  • Individual amplification and equalization of the surround speakers
  • Support for bass management of the subwoofers
  • Internal crossovers to reduce installation cost

Dolby Atmos Cinema Processor CP850 Line

DOLBY ATMOS CONNECT INTERFACE

The Dolby Atmos Connect Interface DAC3202 allows you to use legacy amplifiers in Dolby Atmos installations. The Dolby Atmos Cinema Processor CP850 employs an audio-over-Ethernet protocol to send a digital audio stream to Dolby Atmos Connect Interfaces. A Dolby Atmos Connect Interface converts the digital audio to analog audio for connection to amplifiers. Each Dolby Atmos Connect Interface offers 32 analog outputs.

A Dolby Atmos Cinema Processor CP850 together with a single Dolby Atmos Connect Interface can support up to 48 speaker feeds. Installations with more than 48 speaker feeds will need two Dolby Atmos Connect Interfaces.

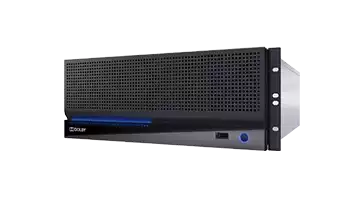

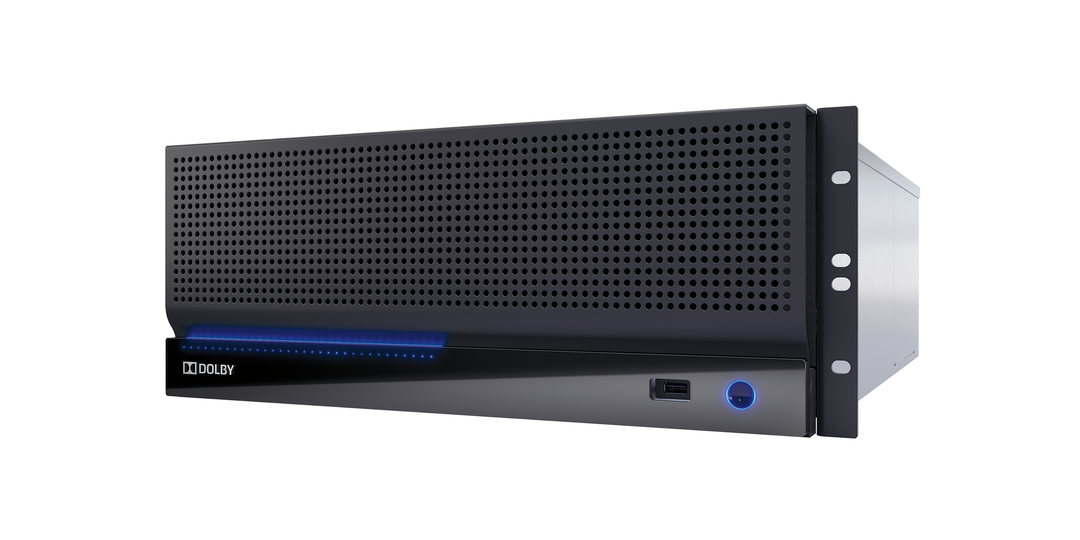

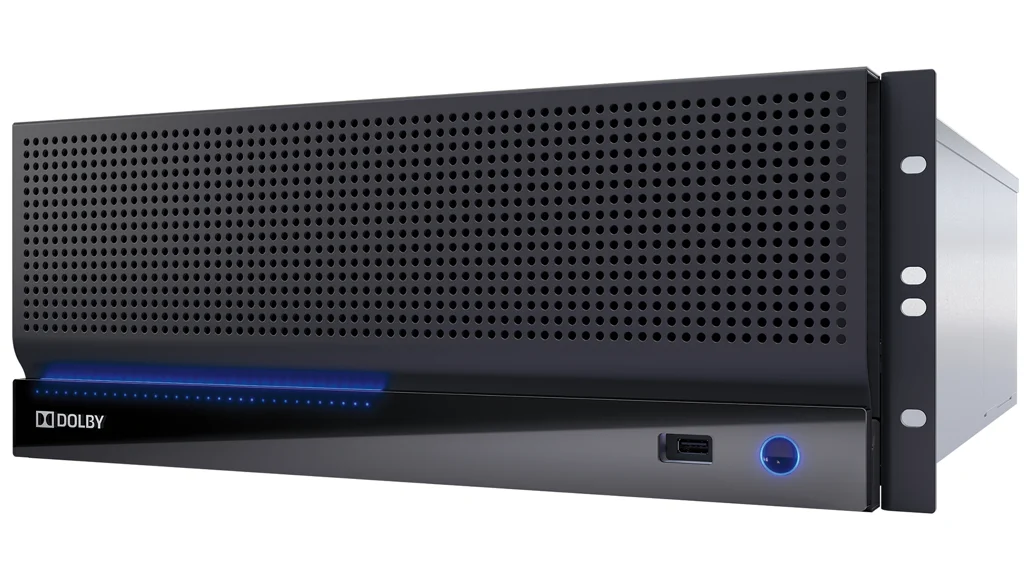

Dolby Multichannel Amplifier

The Dolby® Multichannel Amplifier is an advanced, high-density design that can replace up to 16 stereo amplifiers. With less equipment to install, power, and maintain, you get a simpler and more efficient installation. The Dolby Multichannel Amplifier is available in three configurations, with 16 channels (DMA16302), 24 channels (DMA24302), or 32 channels (DMA32301), and includes enhanced power handling for lower impedance loudspeakers. The 16 channel (DMA16302) and 24 channel (DMA24302) configurations provide an 8-channel analog input module that allows direct integration with the Dolby Digital Cinema Processor CP750 and other cinema sound processors used in 5.1/7.1 surround sound installations. The Class D amplification topology is designed to deliver high-performance audio quality on every channel.

The Dolby Multichannel Amplifier is designed for reliability. It includes a custom-built power supply with built-in redundancy, power sharing, operational monitoring, and fault detection. The Dolby Multichannel Amplifier power supply enables the system to operate from a 100 to 240 VAC, 20 amp service without tripping the AC main circuit breaker. The Dolby Multichannel Amplifier automatically detects maximum and net power availability, as well as certain operational and environmental conditions, and adjusts channel gains based on power supply, load and fault conditions.

Features/Benefits:

  • Available in three configurations (16, 24, or 32 channels)
  • 4U rackmount chassis
  • Universal power supply 100 to 240 VAC
  • Custom-built power supply with built-in redundancy
  • Internal crossovers and signal processing to improve your cinema’s sound
  • Web-based UI for easy access from anywhere on the theatre network
  • Front-panel status/signal presence LEDs
  • Long and short rack rail kits
  • Easily integrates with CP850, CP950 or IMS3000

Flexible and innovative audio solutions for any size theatre

Our flexible, versatile SLS loudspeakers can complement your existing setup or new build and deliver powerful audio experiences, including Dolby Atmos and Dolby Audio 5.1 and 7.1. Your guests will enjoy the incredible clarity, superior dynamic range, and ultraclear high frequency from any seat in the house.

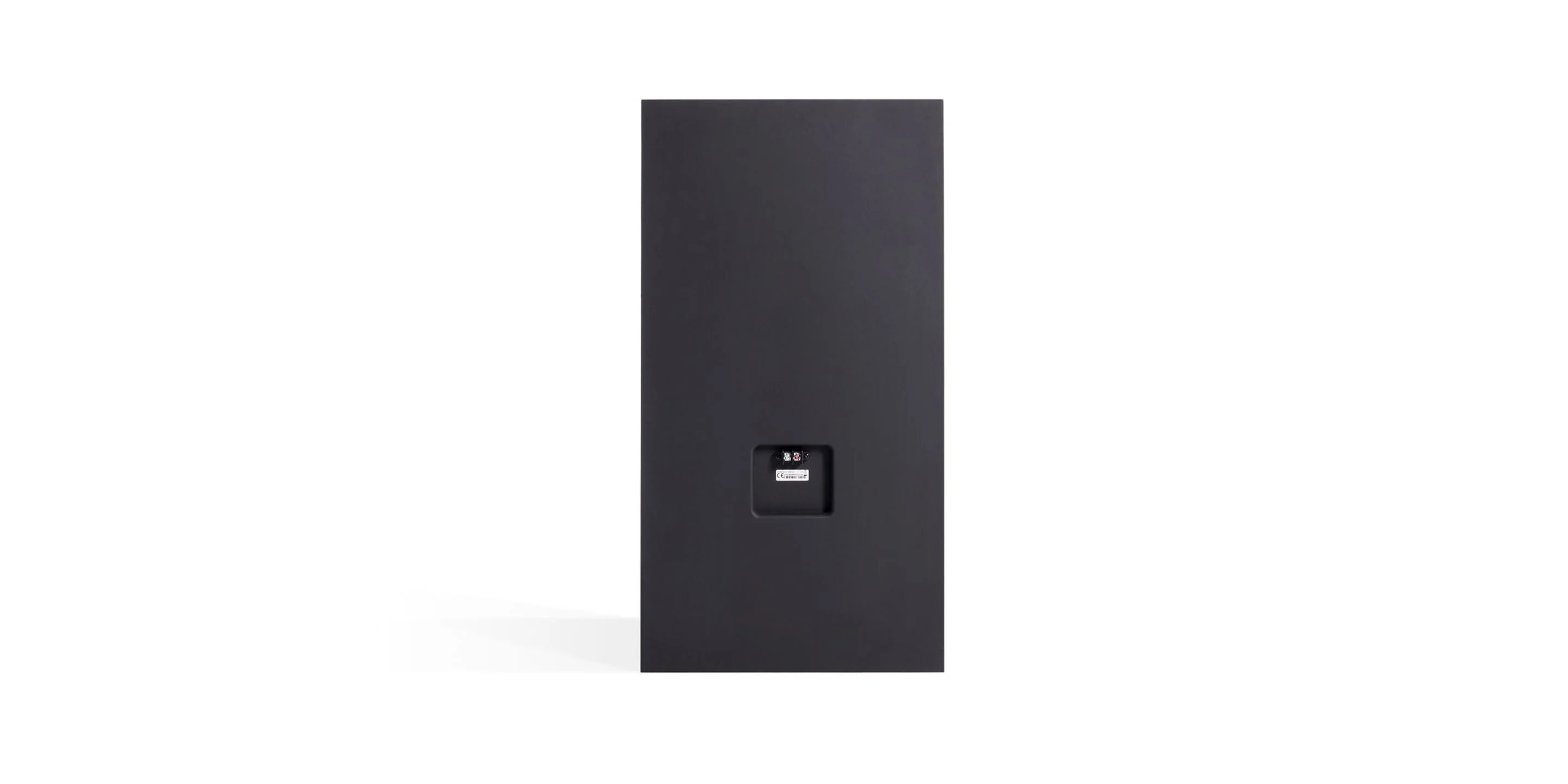

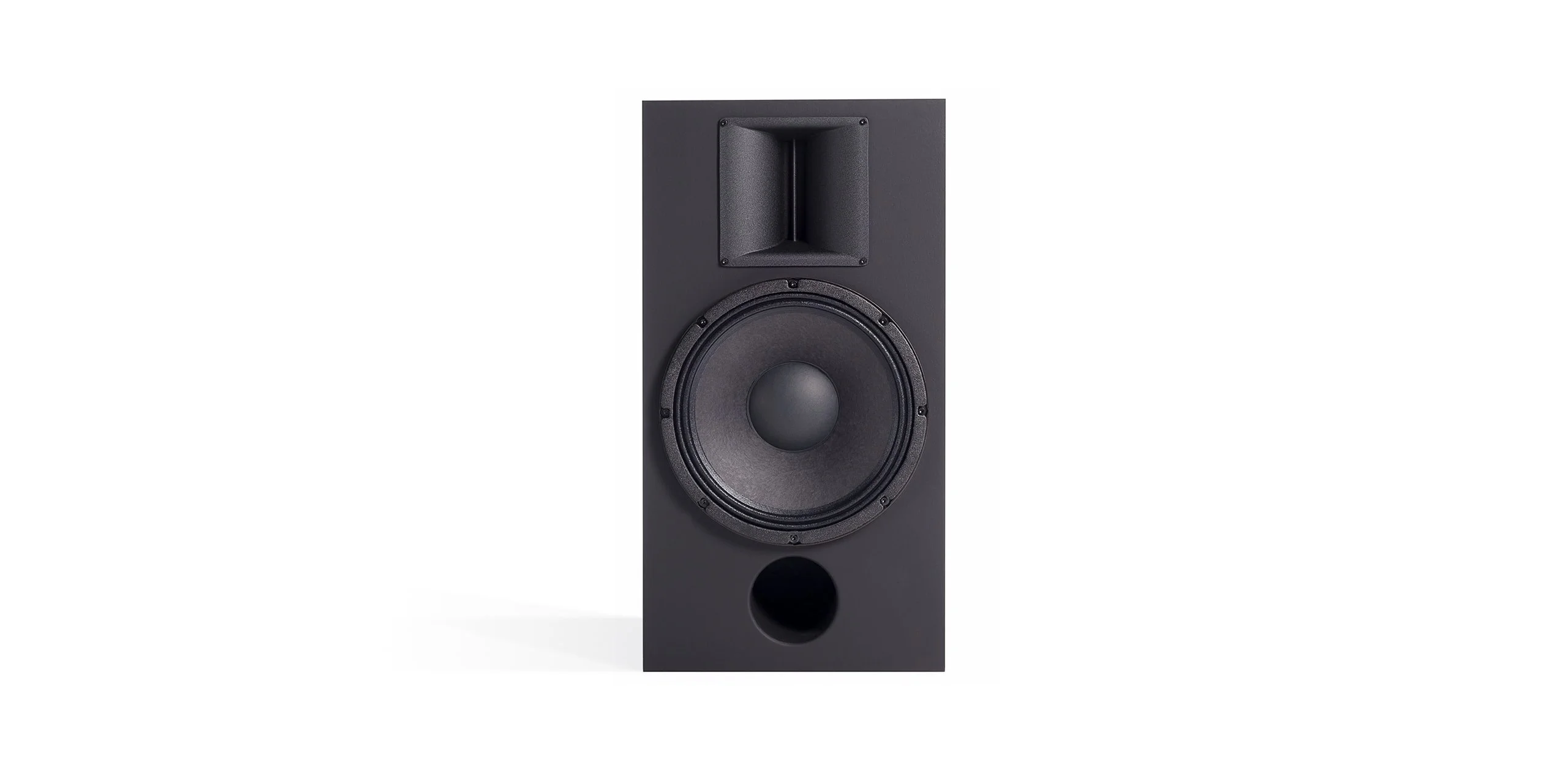

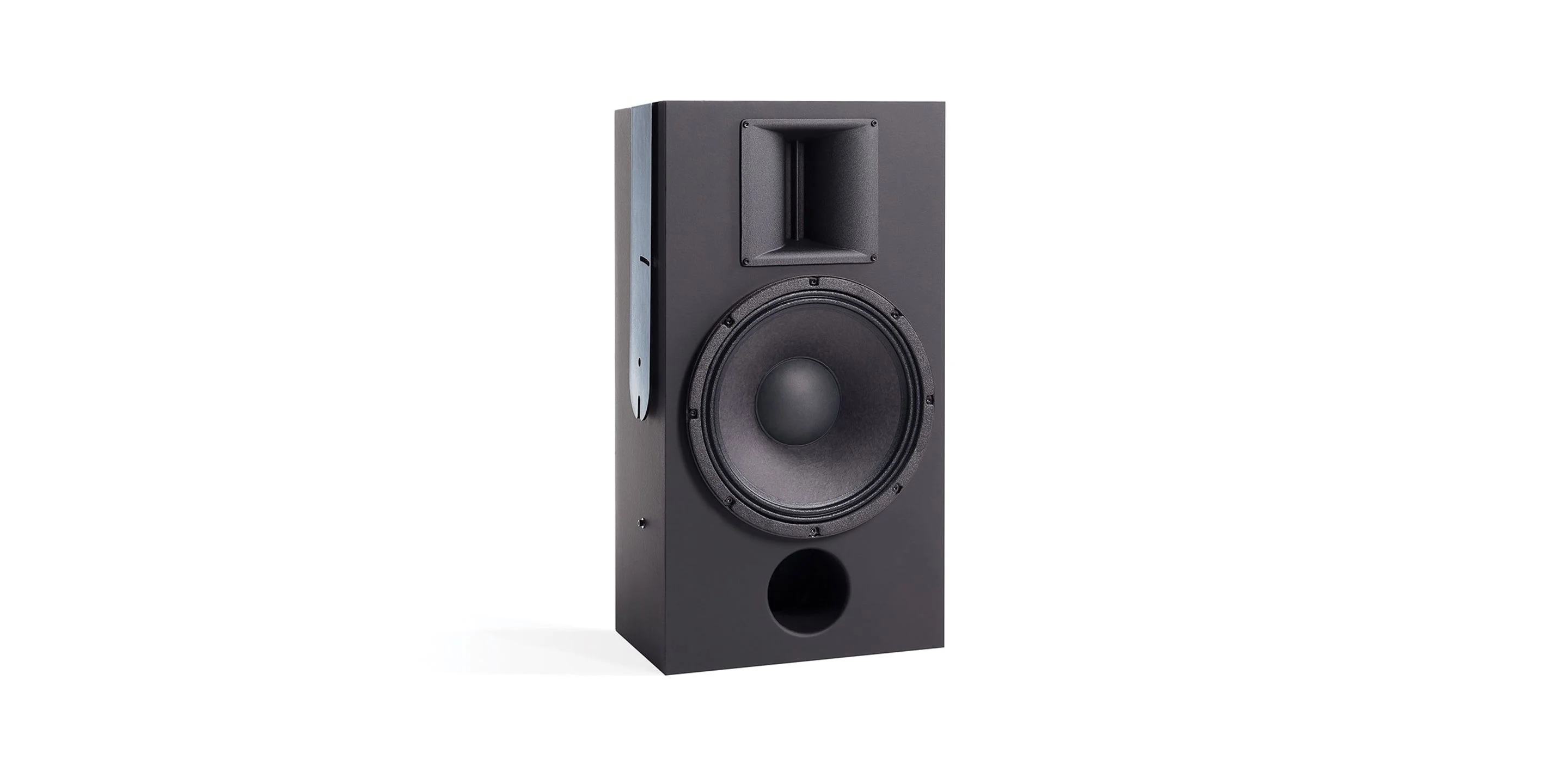

The SYS50 (1 X CS50) is a full-range, passive screen channel cinema loudspeaker for small auditoriums. The high frequency section features a high performance PRD500 planar ribbon transducer designed and manufactured by SLS Audio.

The unique design and properties of the planar ribbon driver delivers fast transient accuracy, as well as an exceptionally smooth high frequency response. Also the unique properties of the planar ribbon driver delivers more direct sound to the audience, even considering the effect of screen spreading.

With a low frequency section that utilizes a 12” woofer, the front ported enclosure has a bass extension down to 40Hz and is well suited for small theaters with 50-75 seats.

Features:

  • PRD500 planar ribbon, high frequency driver delivers unsurpassed sound quality
  • Open and transparent sound even at high SPL due to advanced transducer technology in all bandwidth sections
  • 90 x 40 degree dispersion pattern (not including screen scattering)
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Included U-Bracket for easy installation and aiming

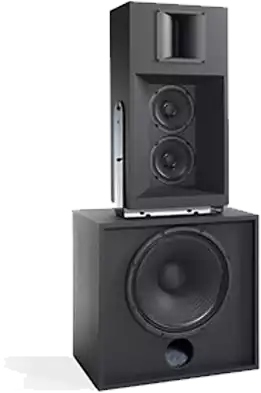

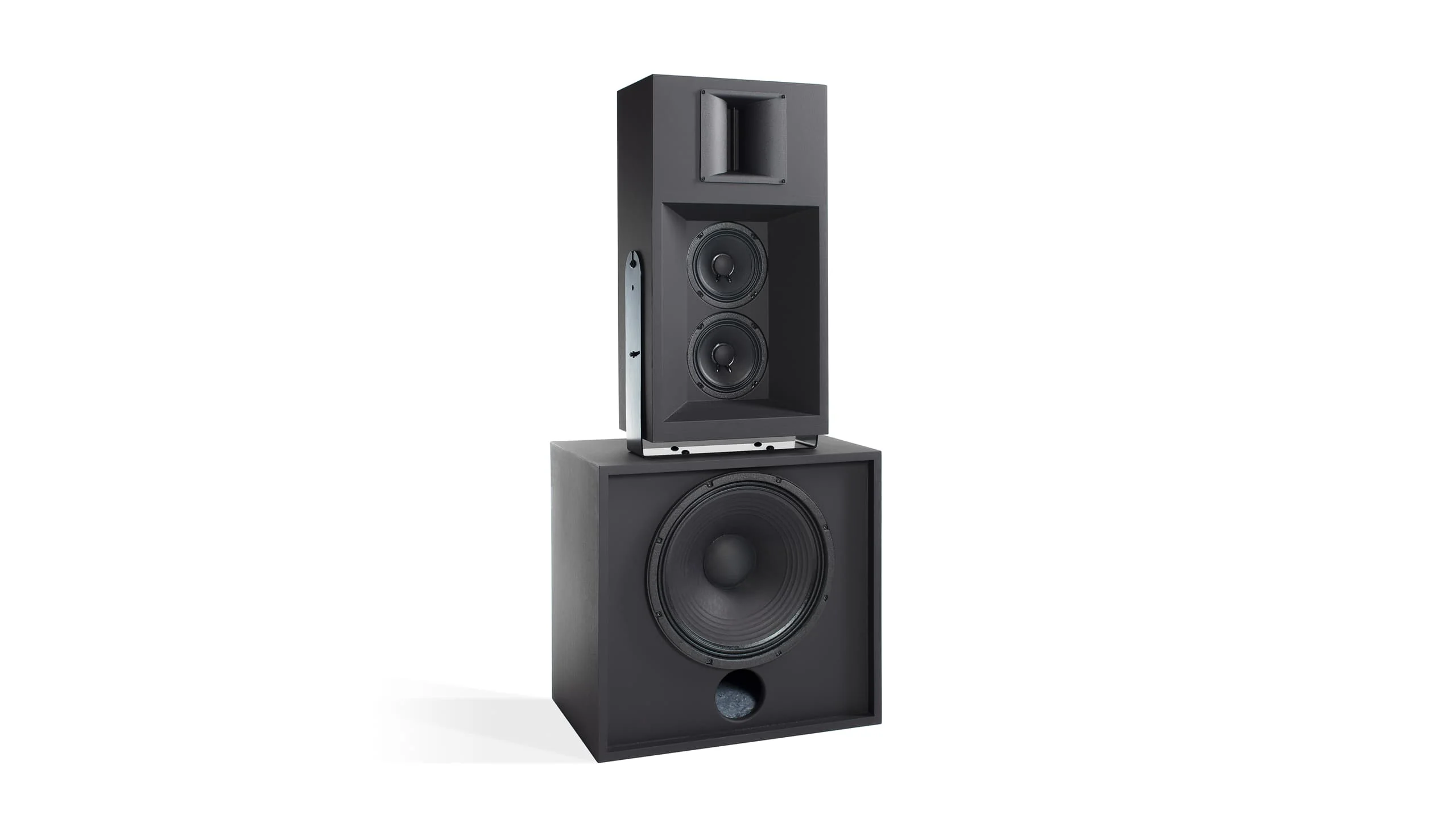

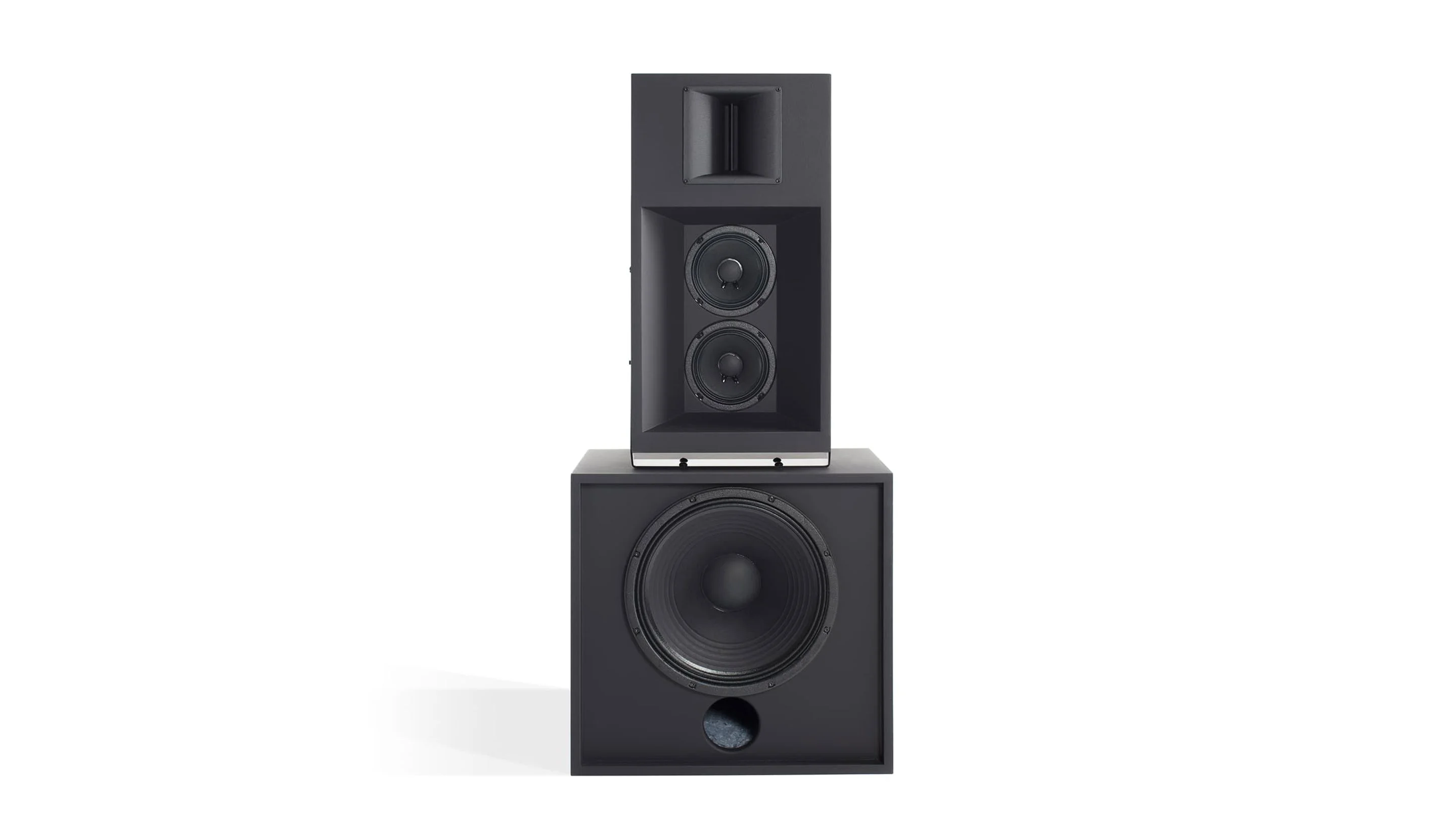

Consisting of (1)-CS100MH & (1)-CSB115, the Cinema System 100 is a full range bi-amped screen channel cinema loudspeaker for smaller auditoriums. It is also available with an optional passive crossover for single channel amplifier operation per screen channel.

The System 100 high frequency section features a high performance PRD500 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver delivers fast transient accuracy as well as an exceptionally smooth high frequency response. Also the unique properties of the planer ribbon driver delivers more direct sound to the audience even with screen spreading.

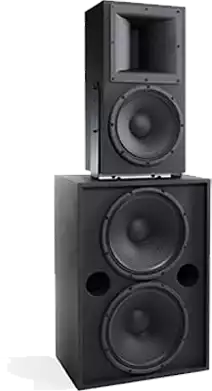

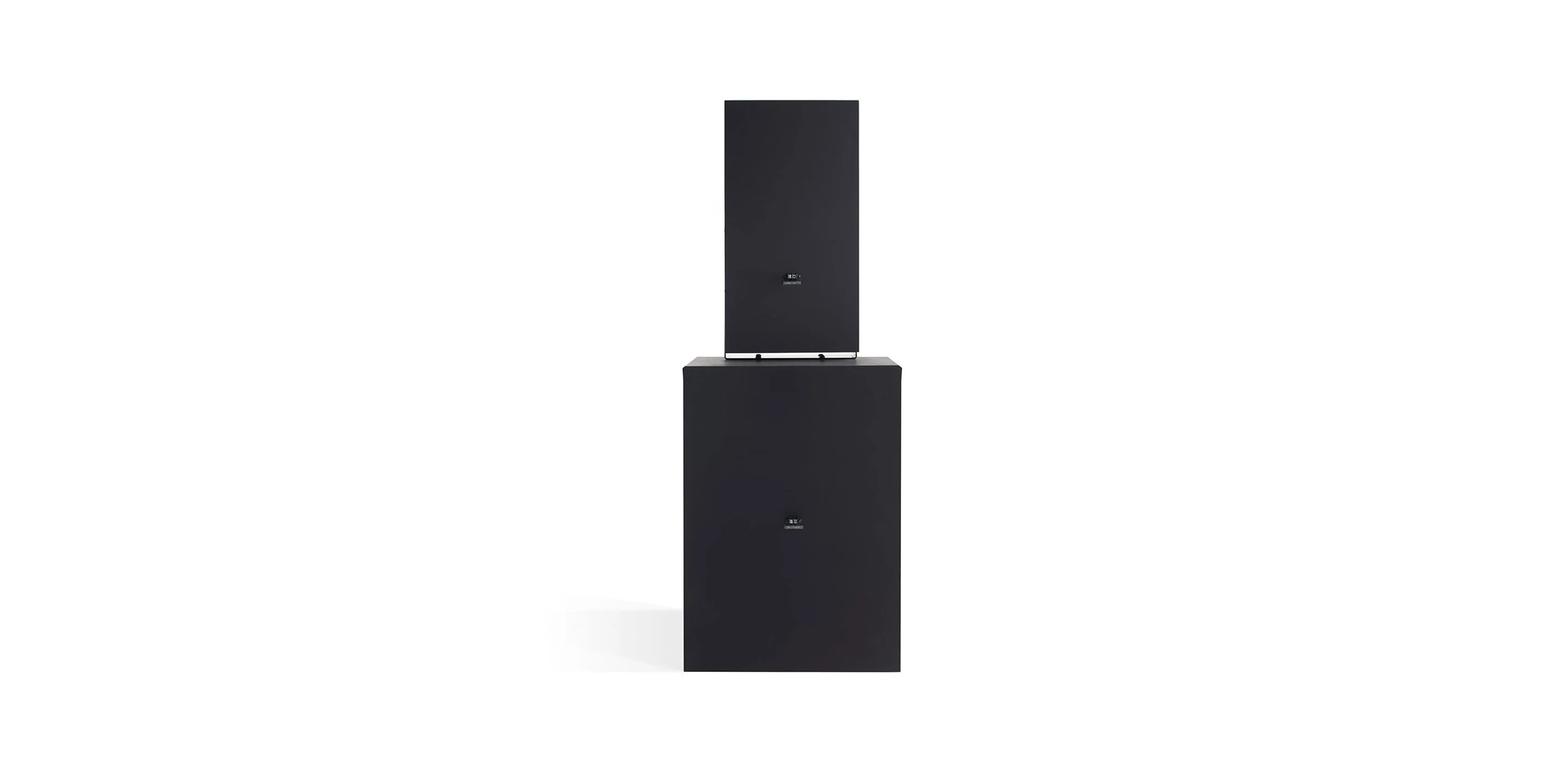

Consisting of (1)-CS200MH & (1)-CSB215, the Cinema System 200 is a full range, bi-amped screen channel cinema loudspeaker for small to medium sized auditoriums.

The System 200 high frequency section features a high performance PRD1000 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver delivers fast transient accuracy as well as an exceptionally smooth high frequency response. Also the unique properties of the planar ribbon driver delivers more direct sound to the audience even with screen spreading.

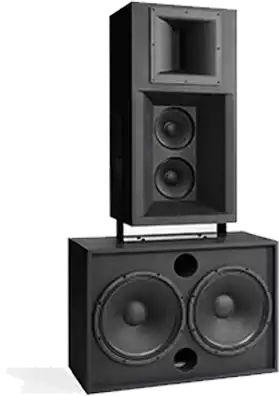

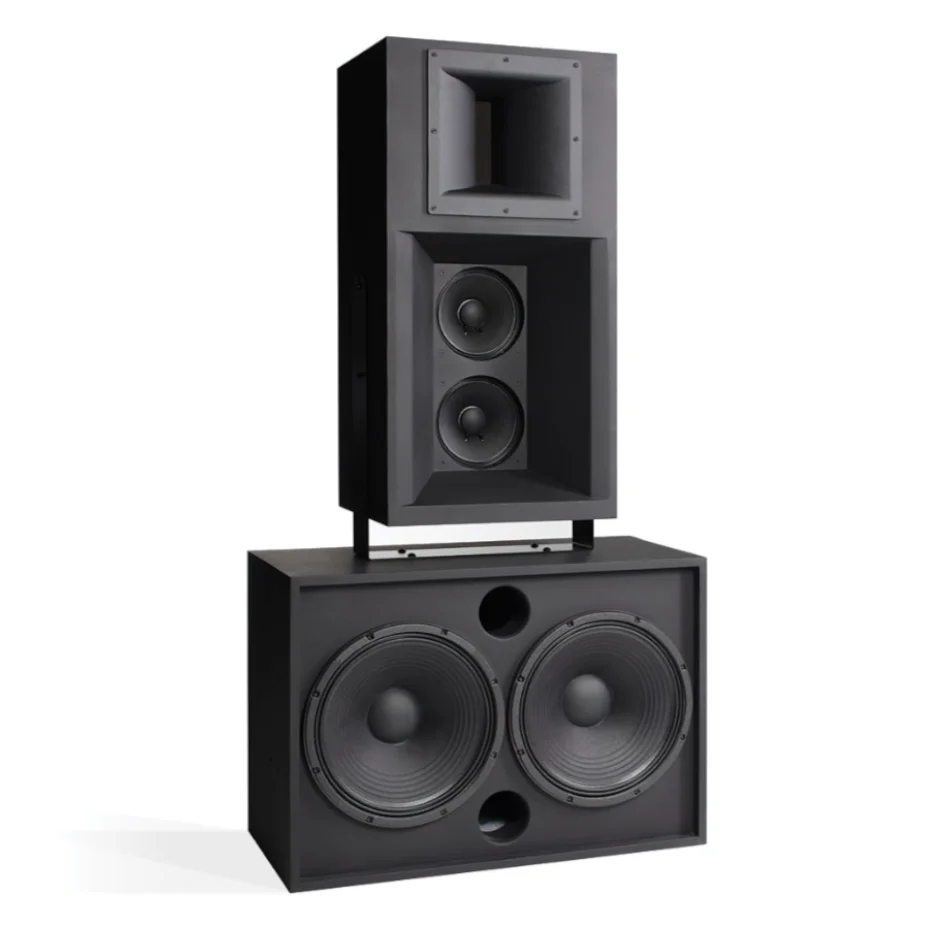

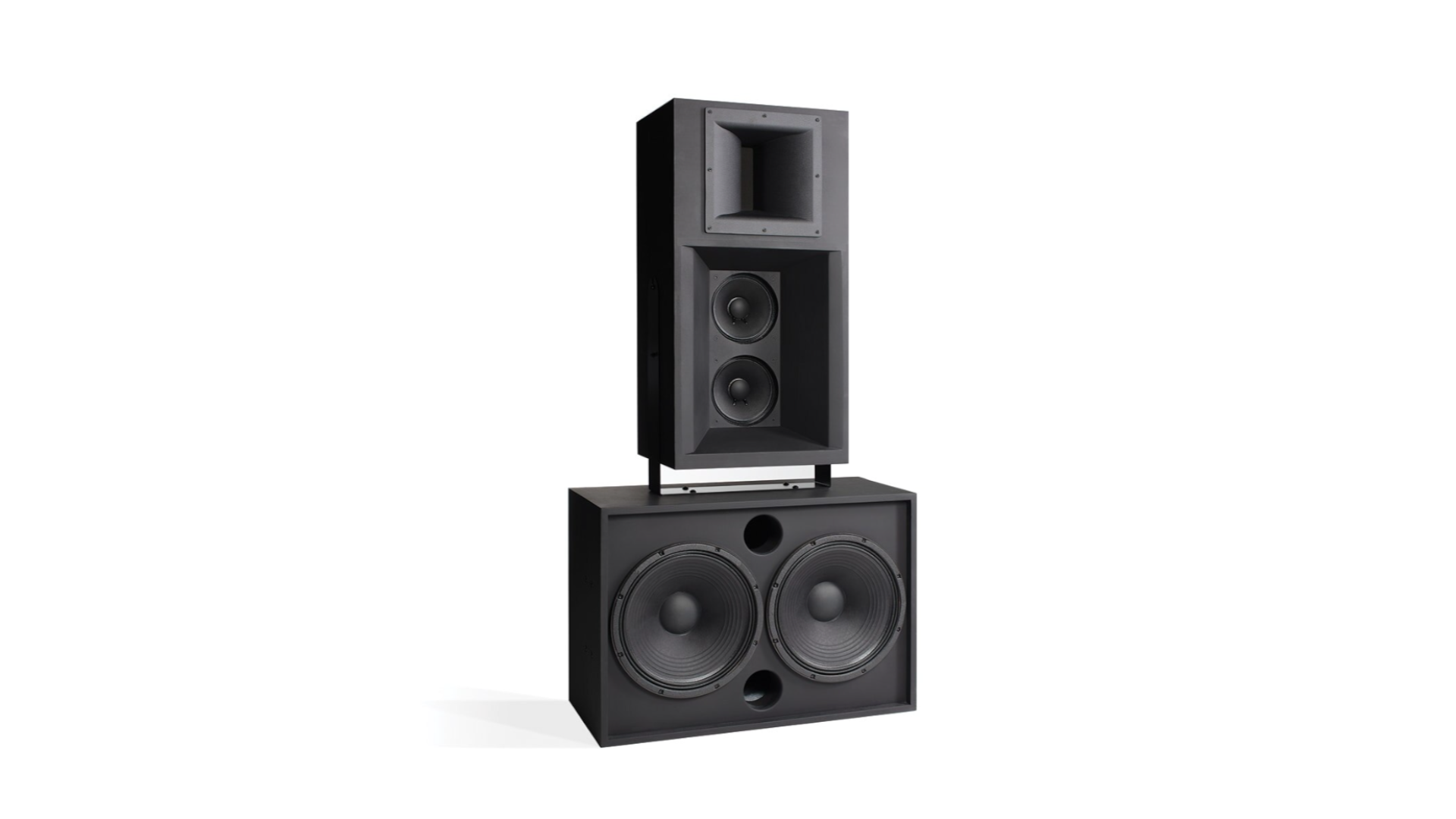

Consisting of (1)-CS301MH & (1)-CSB215, the Cinema System 300A is a full range, bi-amped screen channel cinema loudspeaker for medium sized auditoriums.

The System 300A high frequency section features a high performance PRD1200 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver delivers fast transient accuracy as well as an exceptionally smooth high frequency response. Also the unique properties of the planar ribbon driver deliver more direct sound to the audience even with screen spreading.

The mid frequency section uses two high-efficiency 8” midrange drivers. They provide an open and clear sound despite loud listening levels.

The dual 15” bass enclosure compliments the powerful mid/high section with effortless bass reproduction.

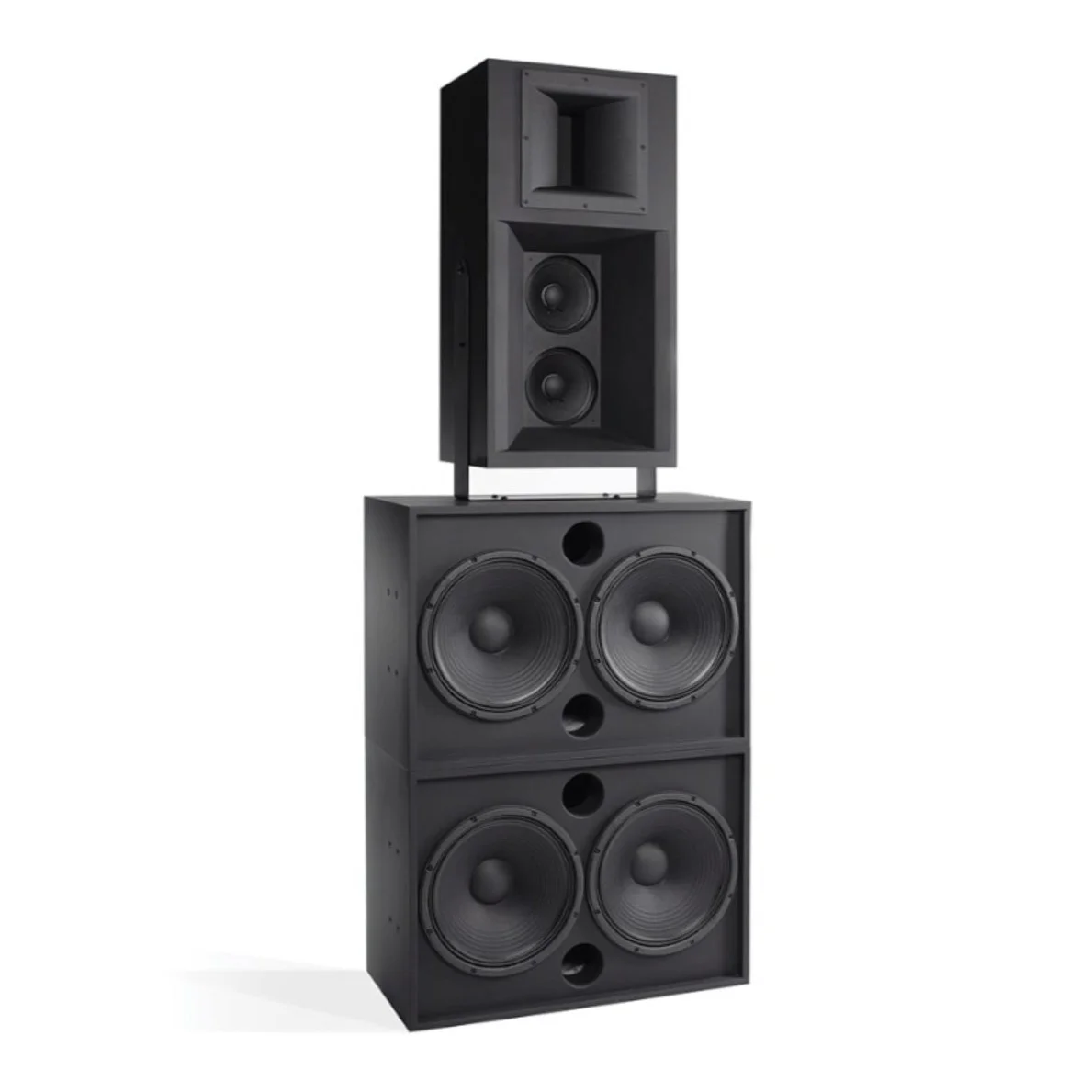

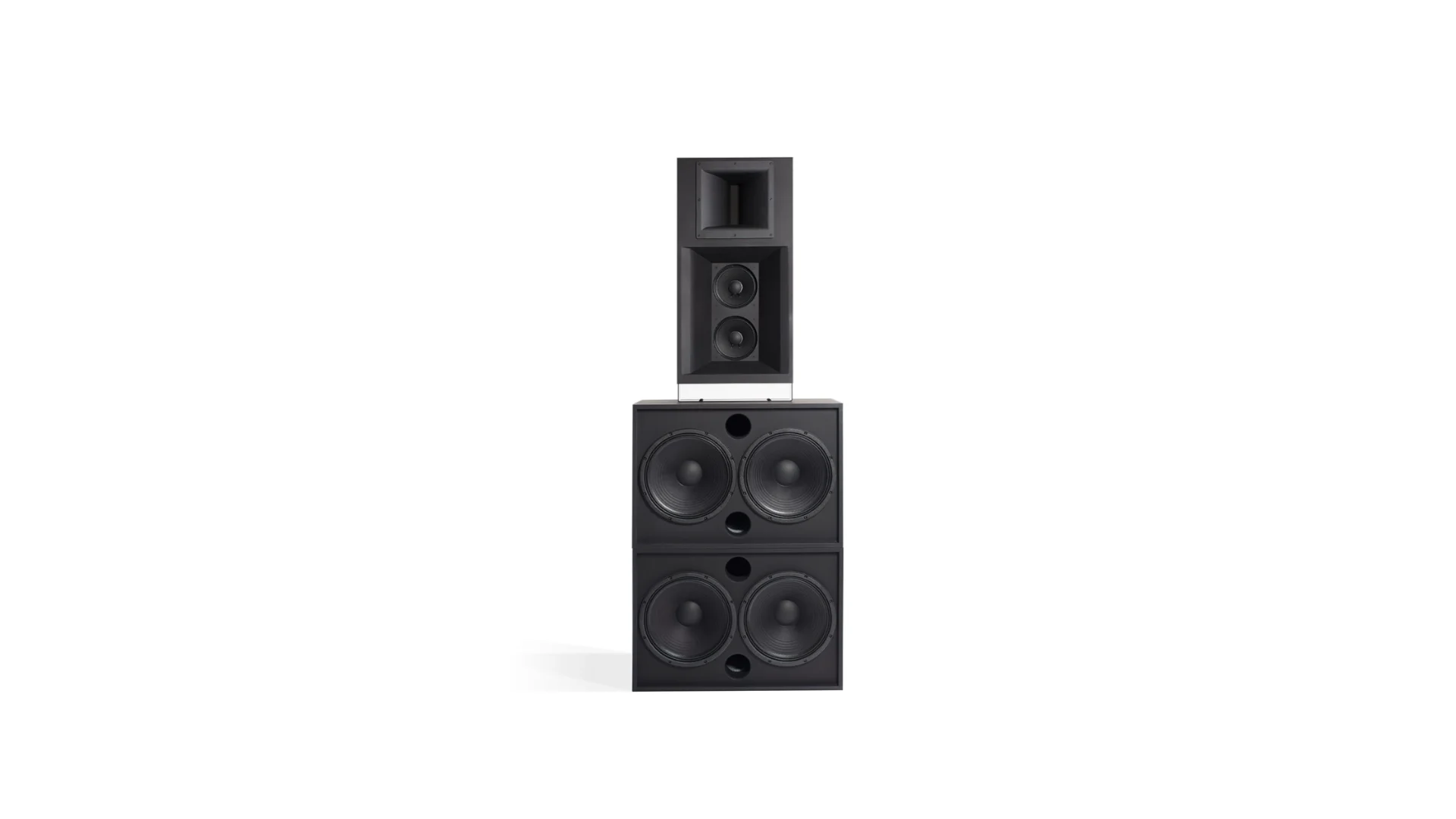

Consisting of (1)-CS301MH & (2)-CSB215, the Cinema System 400A is a full range, bi-amped screen channel cinema loudspeaker for large sized auditoriums.

The System 400A high frequency section features a high performance PRD1200 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver delivers fast transient accuracy as well as an exceptionally smooth high frequency response. Also the unique properties of the planar ribbon driver delivers more direct sound to the audience even with screen spreading.

The mid frequency section uses two high-efficiency 8” midrange drivers. They provide an open and clear sound despite loud listening levels.

The dual 15” bass enclosure compliments the powerful mid/high section with effortless bass reproduction.

The CSB115 is a Mid/Bass cinema loudspeaker. Its primary application is for use as a companion to the CS100MH Mid/High enclosure in small to medium size theaters.

The 15” long excursion, loudspeaker has been specifically designed to deliver high impact response.

An optional passive crossover (PXO.CS2015) is available for single channel operation.

Features:

  • Powerful magnet assembly
  • Open and clear sound at high SPL due to advanced transducer technology
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Barrier strip input connection

The CSB215 is a Mid/Bass cinema loudspeaker. Its primary application is for use as a companion to the CS6600, CS200MH/CS301MH Mid/High enclosures in medium to large size theaters.

The 15” long excursion, bass loudspeakers have been specifically designed to deliver high impact bass response.

Features:

  • Powerful magnet assembly
  • Open and clear sound at high SPL due to advanced transducer technology
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Barrier strip input connection

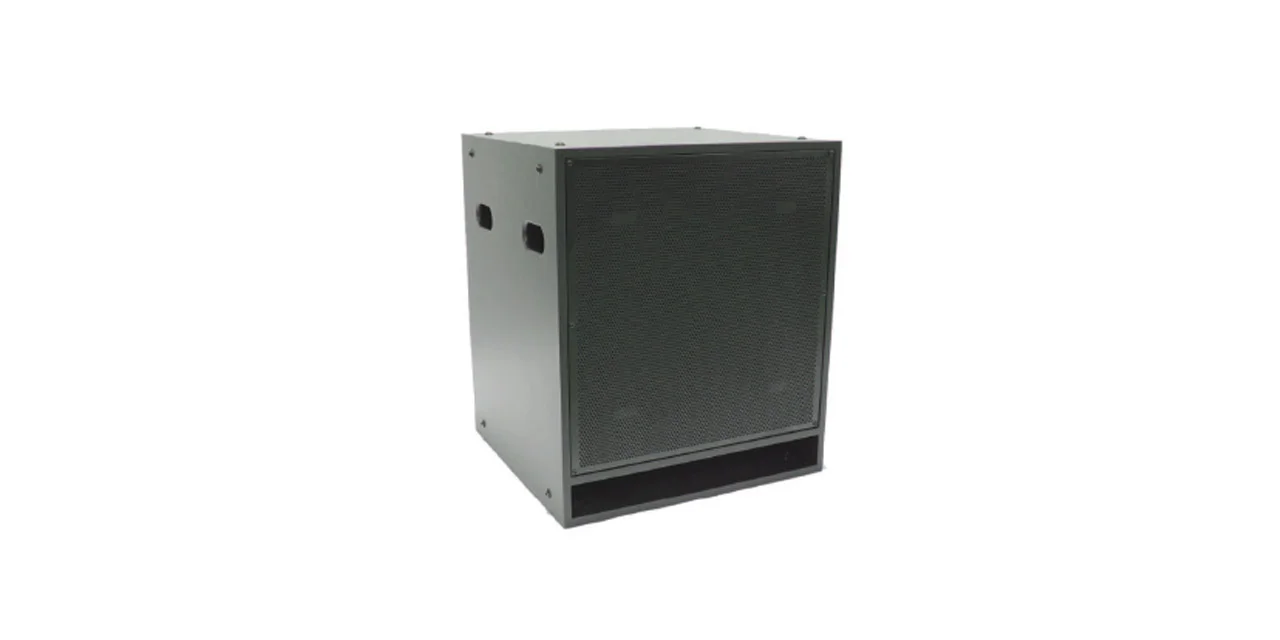

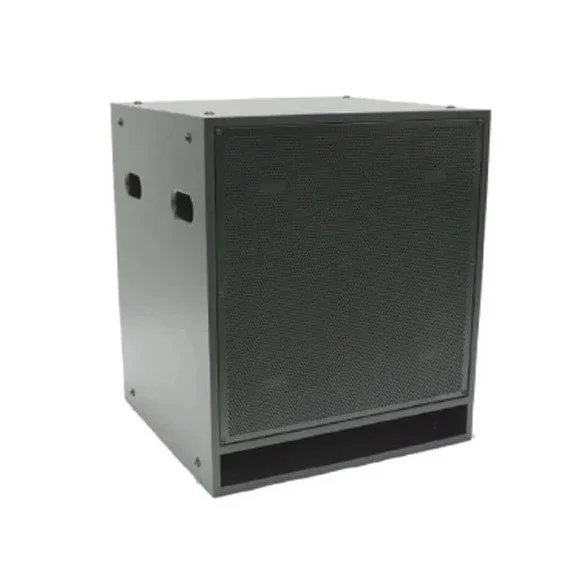

The CS118I-CM is a single 18” subwoofer. It is a high-performance, front-loaded, vented box design with maximized low-frequency extension.

The 18” driver used in the CS118I-CM uses a high-mass magnet structure and a high-temperature voice coil that results in a power handling of 600W RMS.

Key Features

  • Ported, front-loaded driver design for high sensitivity
  • Extended low frequency response
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Extensive internal bracing
  • (1) 600W RMS 18” driver
  • Barrier strip input connection
  • (24) Rigging Points / M10

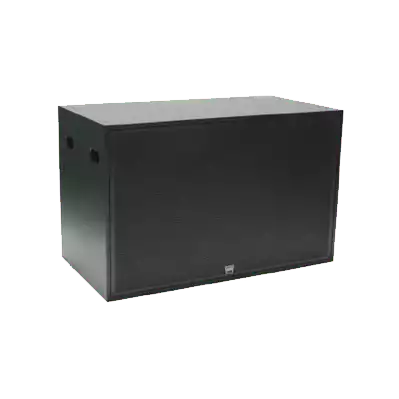

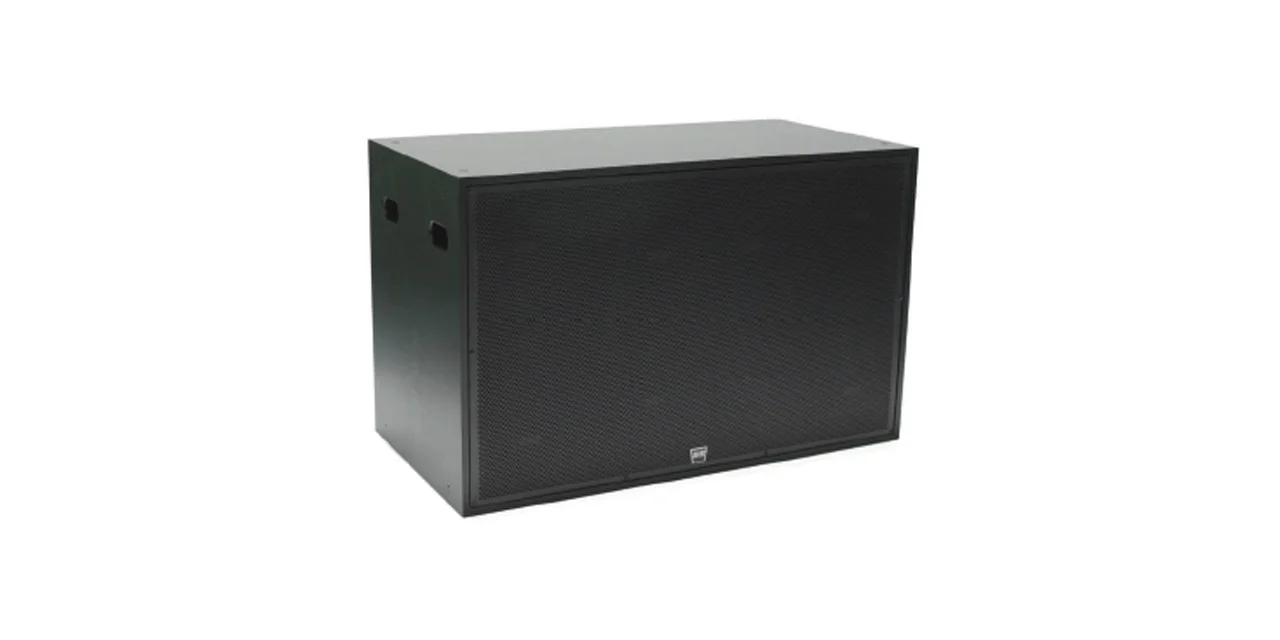

The CS218I-CM is a dual 18” subwoofer. It is a high-performance, front-loaded, vented box design with maximized low-frequency extension.

The 18” drivers in the CS218I-CM feature a high-mass magnet structure and a high-temperature voice coil that yield a power handling of 1200W RMS.

  • Ported, front-loaded driver design for high sensitivity
  • Extended low-frequency response
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Extensive internal bracing
  • (2) 600W RMS 18” drivers
  • Barrier strip input connection
  • (24) Rigging Points/M10

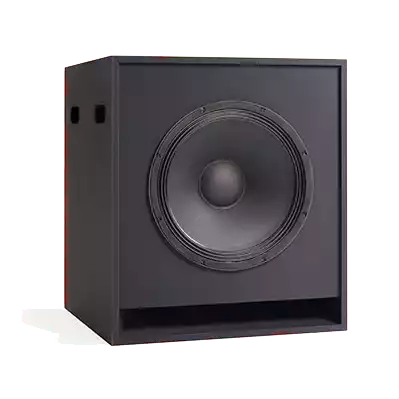

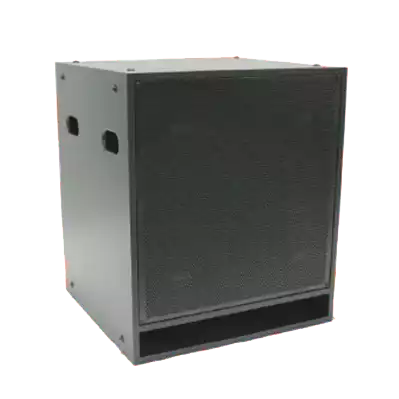

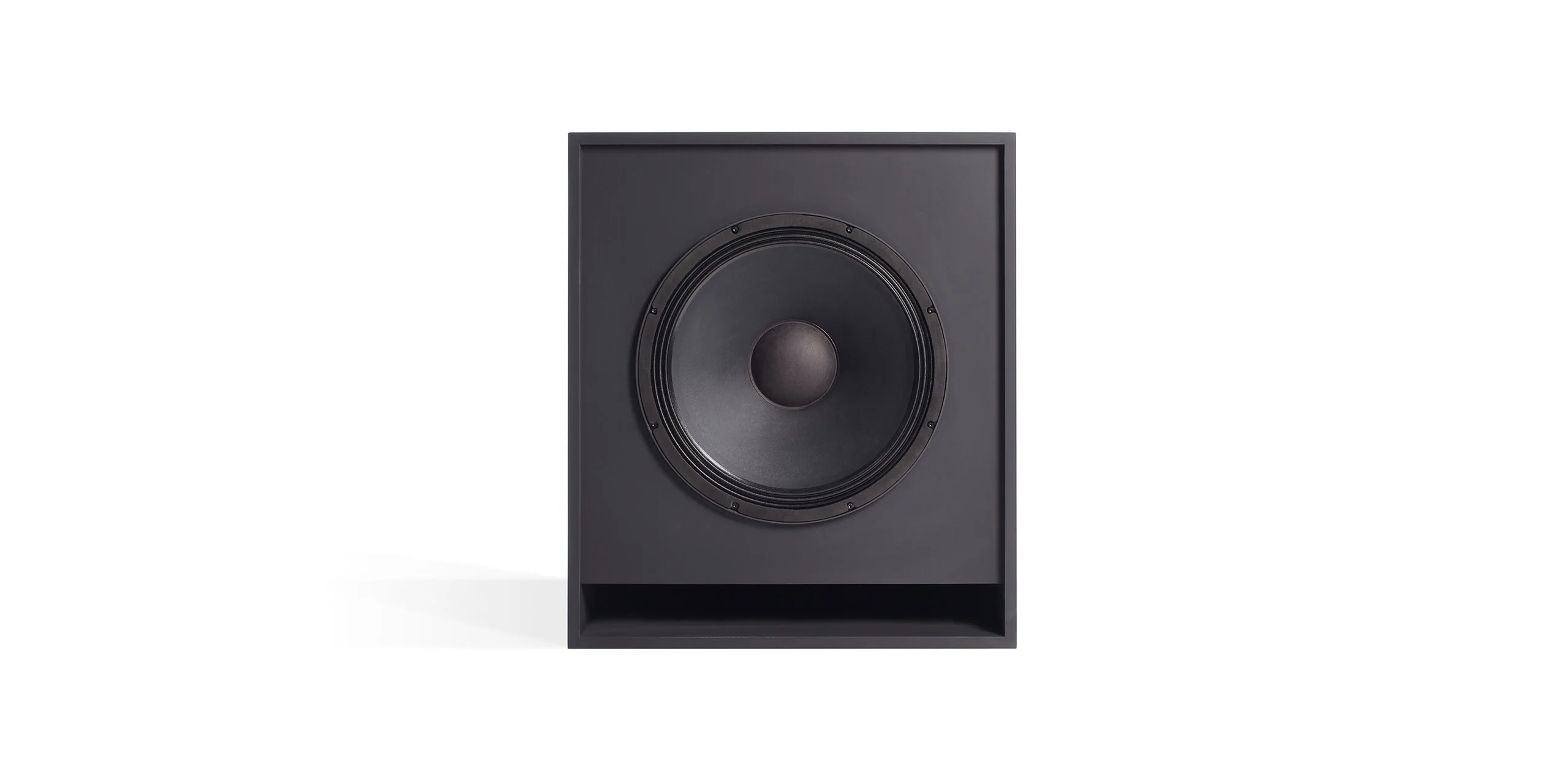

The CS118XL is a single 18” subwoofer. It is a high performance, front loaded, vented box design with maximized low frequency extension.

The 18” driver used in the CS118XL uses a large magnet structure and a high temperature voice coil which results in a power handling of 600W RMS.

Features:

  • Ported, front-loaded driver design for high sensitivity and transient response
  • Extended low frequency response
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Barrier strip input connection

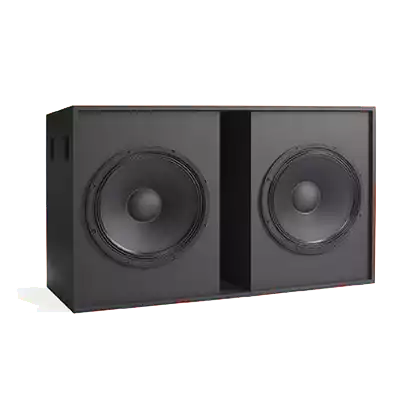

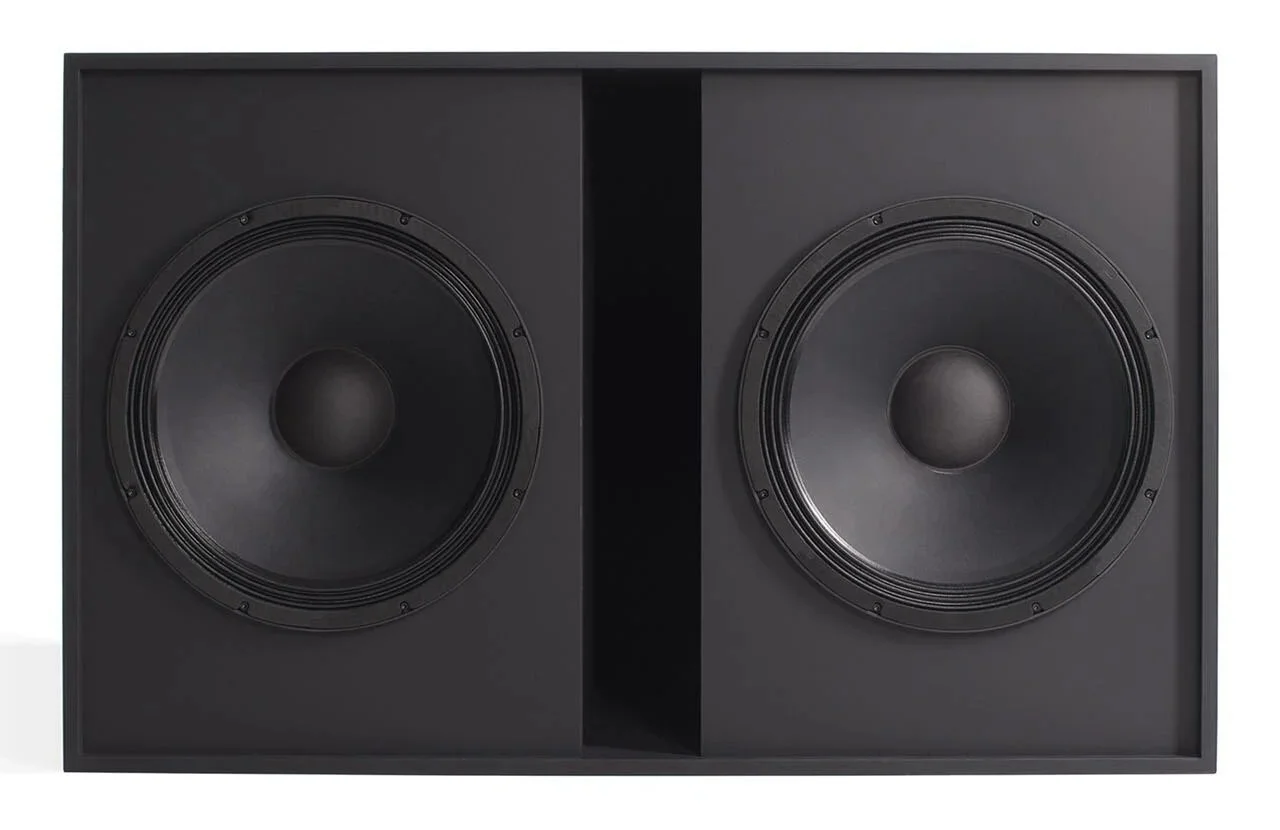

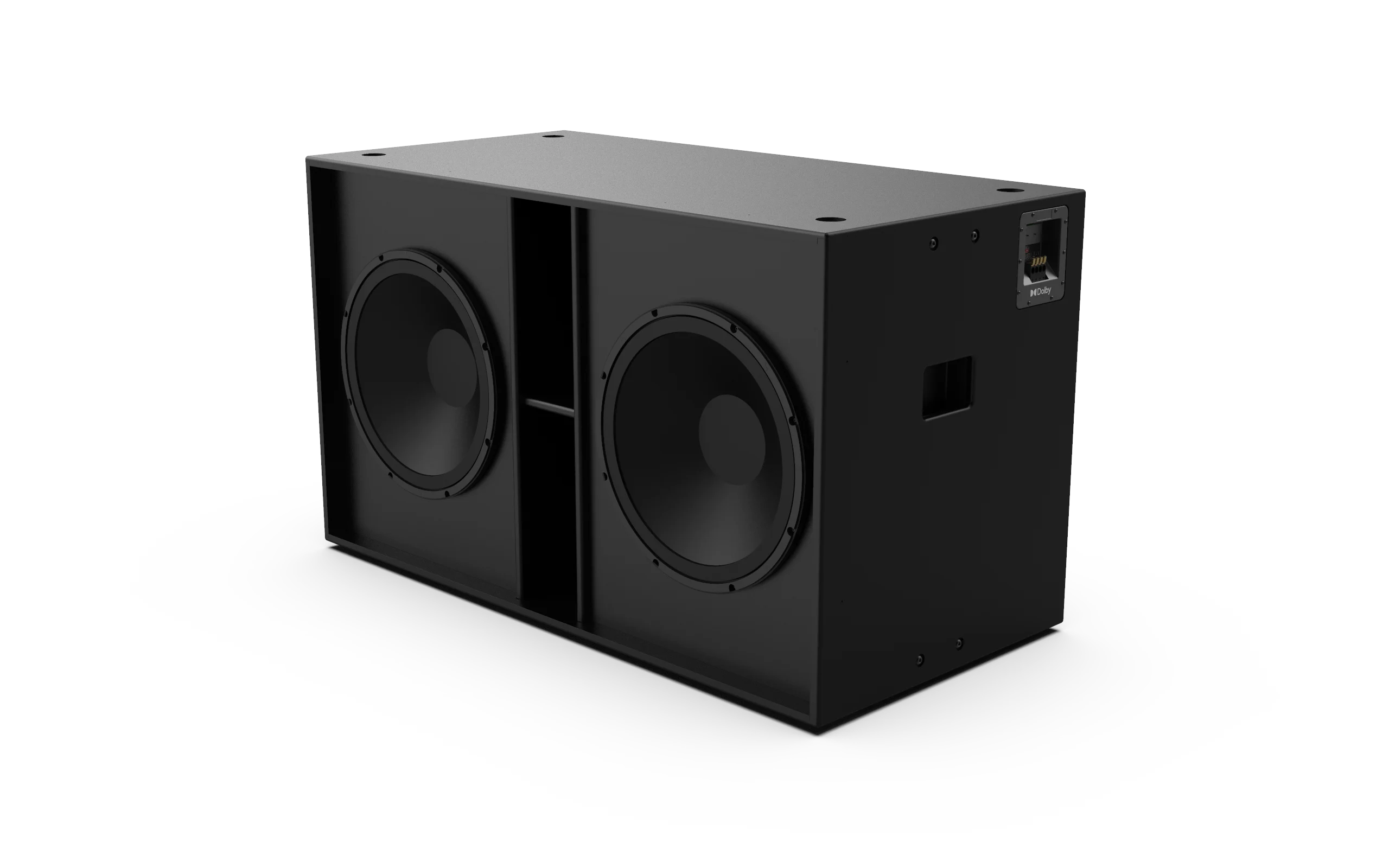

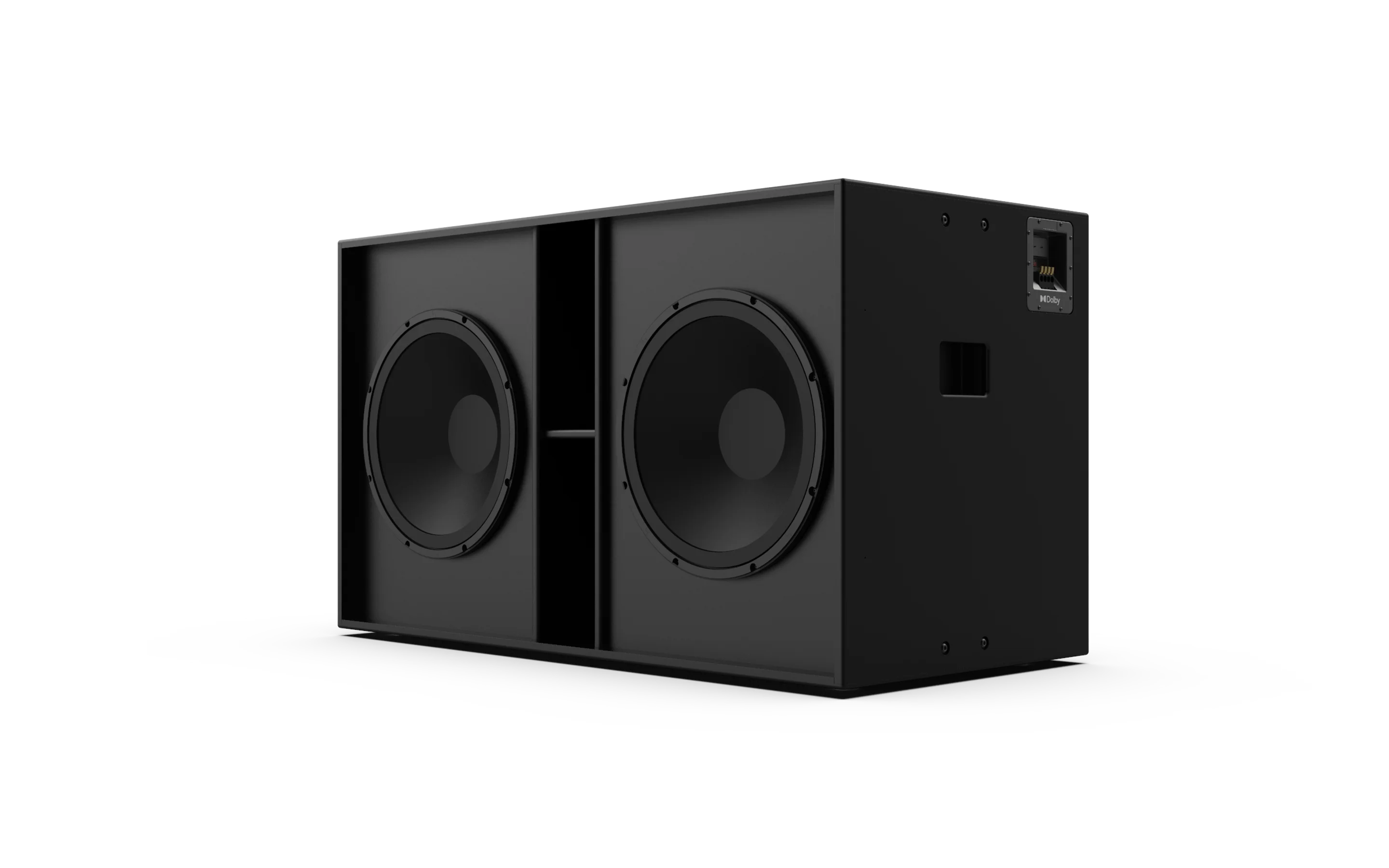

The CS218XL is a dual 18” subwoofer. It is a high performance, front loaded, vented box design with maximized low frequency extension.

The 18” drivers used in the CS218XL use a large magnet structure and a high-temperature voice coil which results in a power handling of 600W RMS each.

KEY FEATURES

  • Ported, front-loaded driver design for high sensitivity
  • Extended low frequency response
  • 13-ply 3/4” Baltic Birch cabinet construction
  • Extensive internal bracing
  • (2) 600W RMS 18” Drivers
  • Barrier strip input connection

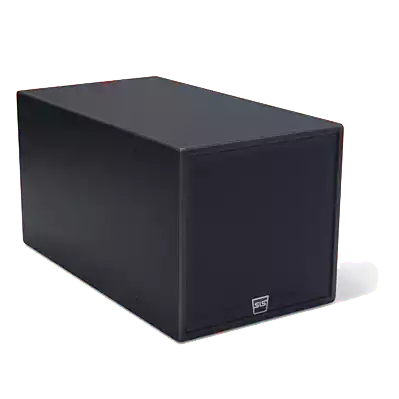

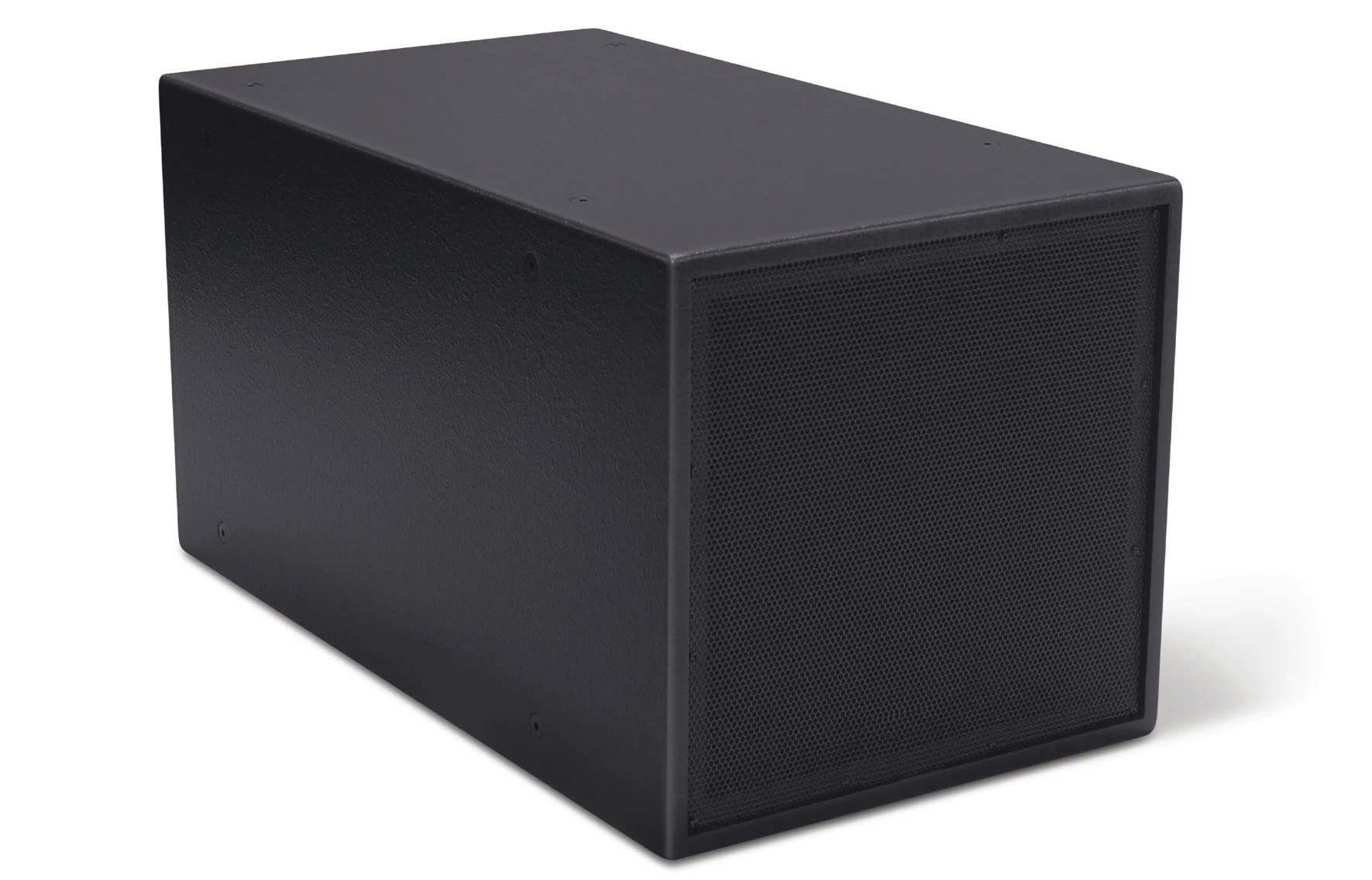

The 118-I is a single 18” vented subwoofer, designed with a small front surface area for installation against walls and under stages with minimal sightline issues.

The subwoofer cabinet has integrated rigging points allowing the cabinet to be suspended from the ceiling or side wall making it perfect for use as a bass management surround speaker in Dolby Atmos rooms.

For floor mounting the subwoofer also ships with (4) rubber feet that can be placed anywhere on the cabinet; This allows you to orient the subwoofer on the ground on any of the available five sides.

The 18” driver used in the 118-I has a Neo magnet structure for light weight and a high-temperature voice coil with a large X-Mech rating for reliable operation.

Features:

  • Angled woofers for a minimal front surface area
  • 13-ply Baltic Birch cabinets
  • Extensive internal bracing
  • 3/8”/16 threaded inserts
  • (4) rubber feet included for placement anywhere on the subwoofer

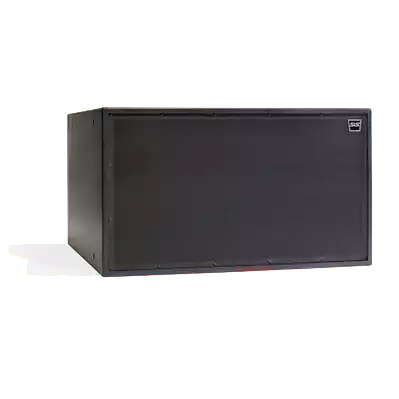

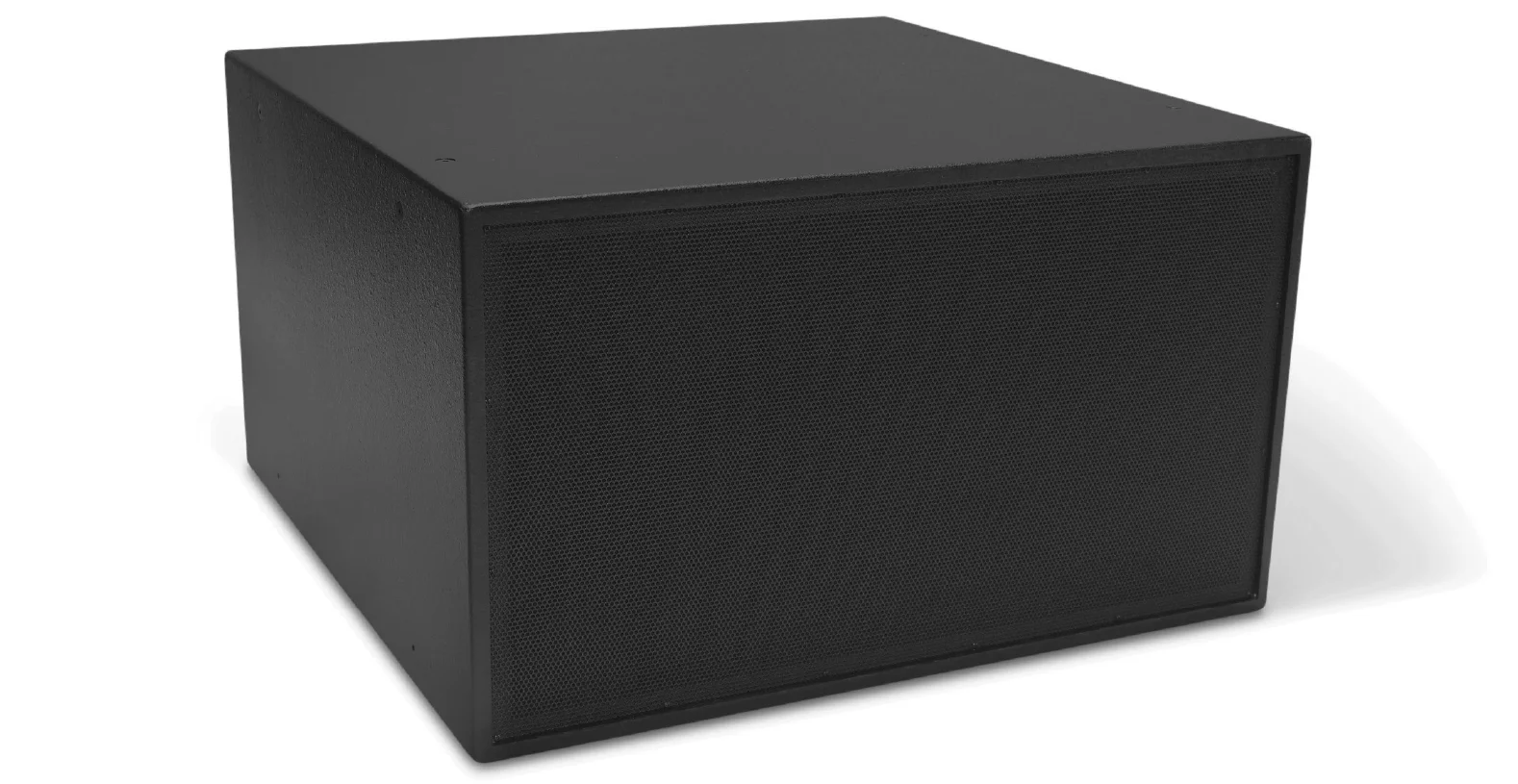

The 218-I is a dual 18” vented subwoofer, designed with a small front surface area for installation against walls and under stages with minimal sightline issues.

The subwoofer cabinet has integrated rigging points allowing the cabinet to be suspended from the ceiling or side wall making it perfect for use as a bass management surround speaker in Dolby Atmos rooms.

For floor mounting the subwoofer also ships with (4) rubber feet that can be placed anywhere on the cabinet; This allows you to orient the subwoofer on the ground on any of the available five sides.

The 18” drivers used in the 218-I have a Neo magnet structure for light weight and a high-temperature voice coil with a large Xmech rating for reliable operation.

Features:

  • Angled woofers for a minimal front surface area
  • 13-ply Baltic Birch cabinets
  • Extensive internal bracing
  • 3/8”/16 threaded inserts
  • (4) rubber feet included for placement anywhere on the subwoofer

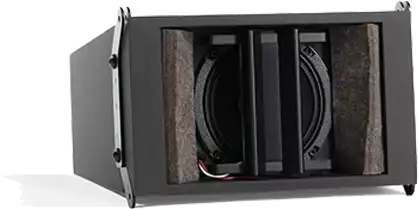

The SLS Audio CS6600 Cinema Series Ribbon Line Array provides superior dynamic range, ultra clean high frequency response and even SPL throughout the entire auditorium. Because of its modular design the CS6600 array can be tailored for any seating design making it the perfect choice for auditoriums where articulation and detail are of pinnacle importance for every seat.

The CS6600 modular ribbon line arrays employ our Co-Planar design which utilize acoustic filtering & equalization resulting in higher dynamic range and a significant reduction in upper mid-band distortion. Featuring plug & play performance, SLS Ribbon Line Arrays provide superior dynamic range, ultra clean high frequency response and even SPL throughout the entire auditorium when properly integrated with the seating layout and accompanied by the CSB215 LF module(s).

Features:

  • 16 Ohm impedance Co-Planar Two-Way with a single 6.5” LF and a single PRD500 Ribbon
  • 100Hz to 20,000Hz Operating Range
  • Can power up to (4) units in parallel with a single amp channel
  • 100 deg horizontal dispersion, vertical determined by array configuration
  • Passive crossovers included in each module
  • Minimum to recommended amplifier power (4 units in parallel) 400W RMS to 800W RMS @ 4 ohms
  • Maximum calculated @ 1 meter continuous output: per module 114dB

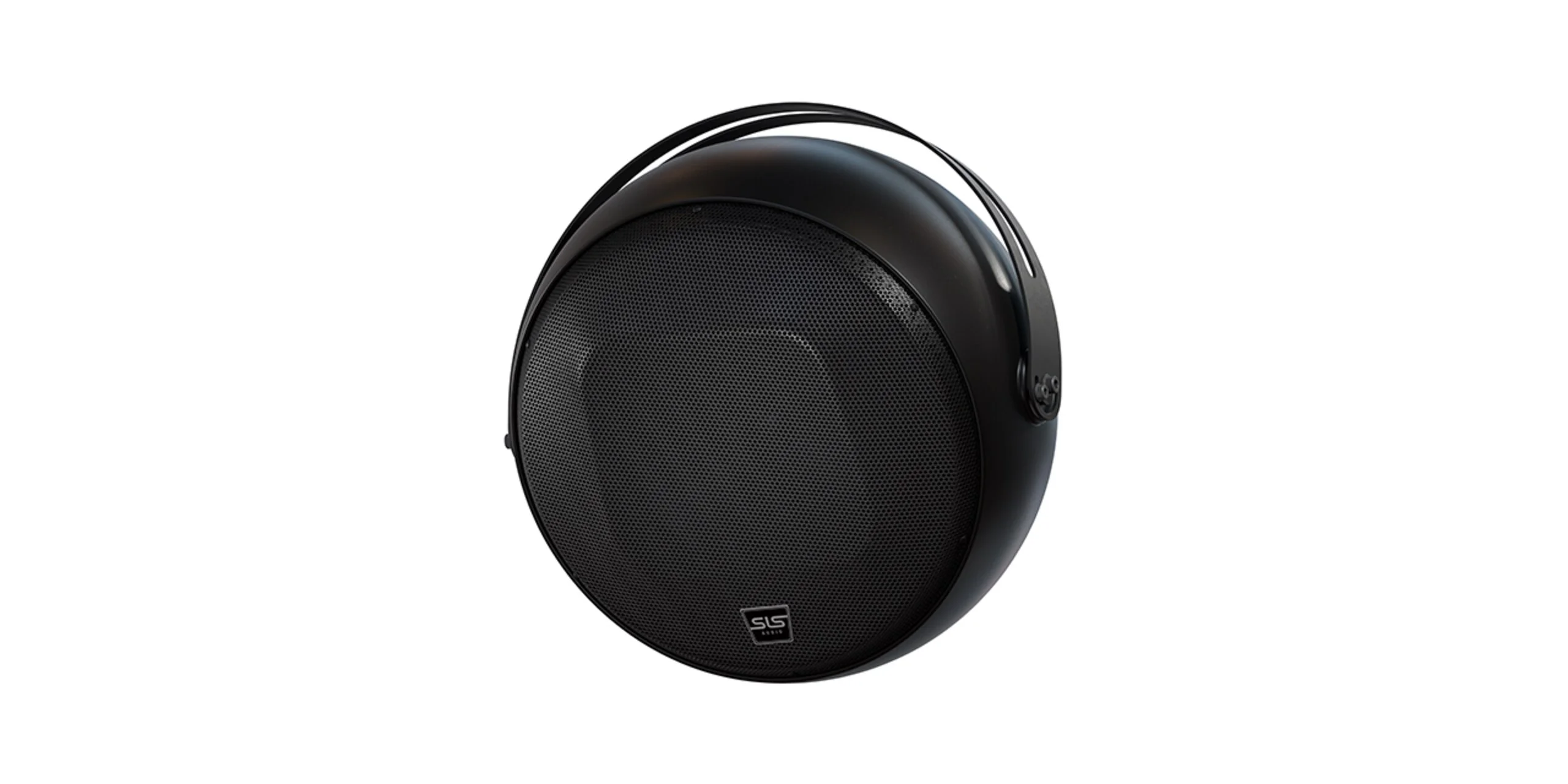

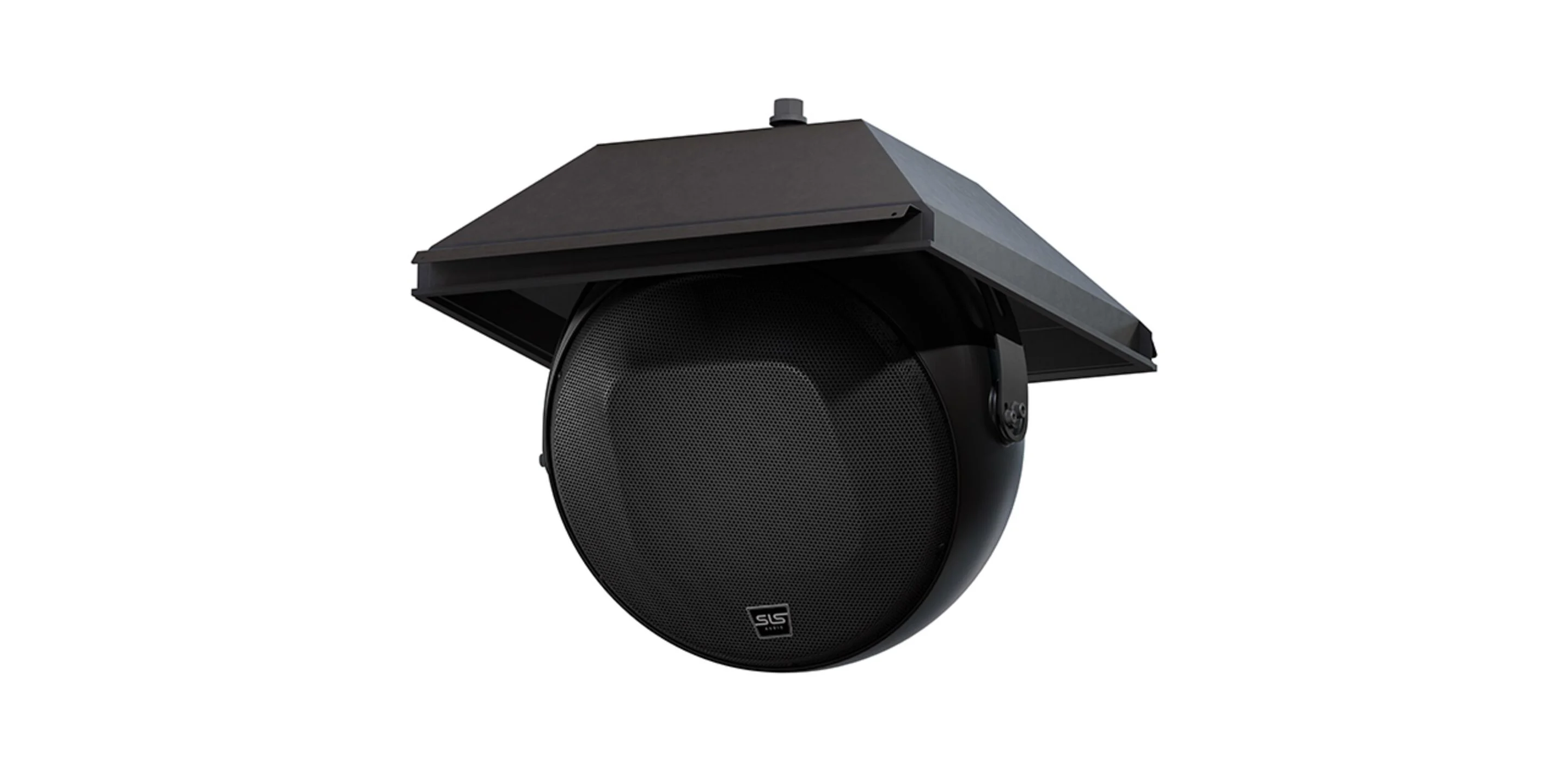

The SLS MA460AS is a high-power two-way loudspeaker, providing pan, tilt, and rotation capabilities for larger cinemas and auditoriums. The SLS MA460AS provides a 60° vertical x 60° - 150° asymmetrical horizontal dispersion pattern for more uniform coverage in all seating locations across the auditorium or theatre.

Featuring a 400 W, 12” coaxial full-range speaker and passive crossover, the MA460AS is housed in a spherical- shaped molded enclosure that enables quick installation and easy three-axis aiming for fulfilling Dolby Atmos® aiming configurations.

The MA460AS was designed primarily for Dolby Atmos side surround applications, but can also be used for top surrounds in some cases. The MA480AS is also available if an 80°V x 80° - 130°H asymmetric dispersion pattern is desired.

Features:

  • Spherical-shaped molded enclosure for quick installation
  • Installs from a single point, (typically all-thread)
  • Three-axis aiming (pan, tilt, and rotation)
  • Custom asymmetric dispersion pattern waveguide provides uniform coverage from wall positions
  • Exceptionally clear, powerful sound
  • Reduces Dolby Atmos system installation time
  • Ceiling grid supports the speaker and optional rigging kit
  • Two overhead rigging kits available: FCT-24 and RCT-24
  • WMA-15 Wall-Mount Kit available

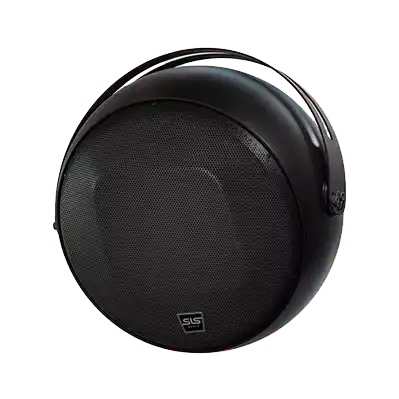

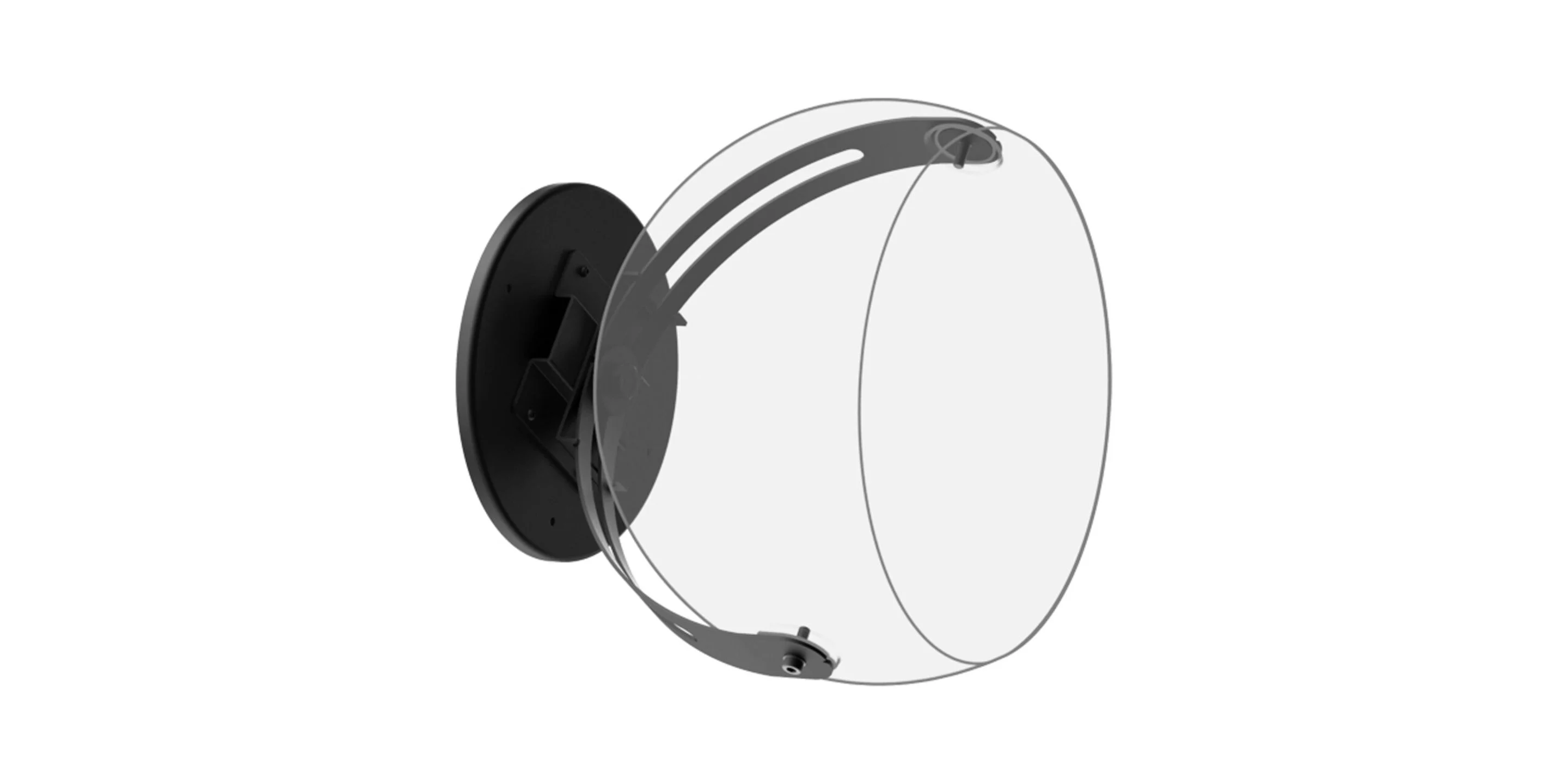

The SLS MA480AS is a high-power two-way loudspeaker, providing pan, tilt, and rotation capabilities for larger cinemas and auditoriums. The SLS MA480AS provides an 80° vertical x 80° - 130° asymmetrical horizontal dispersion pattern for more uniform coverage in all seating locations across the auditorium or theatre.

Featuring a 400 W, 12” coaxial full-range speaker and passive crossover, the MA480AS is housed in a spherical- shaped molded enclosure that enables quick installation and easy three-axis aiming for fulfilling Dolby Atmos® aiming configurations.

The MA480AS was designed primarily for Dolby Atmos® top surround applications but can also be used for side surrounds in some cases. The MA460AS is also available if a 60°V x 60° - 150°H asymmetric dispersion pattern is desired.

Features:

  • Spherical-shaped molded enclosure for quick installation
  • Installs from a single point, (typically all-thread)
  • Three-axis aiming (pan, tilt, and rotation)
  • Custom asymmetric dispersion pattern waveguide provides uniform coverage from wall positions
  • Exceptionally clear, powerful sound
  • Reduces Dolby Atmos system installation time
  • Ceiling grid supports the speaker and optional rigging kit
  • Two overhead rigging kits available: FCT-24 and RCT-24
  • WMA-15 Wall-Mount Kit available

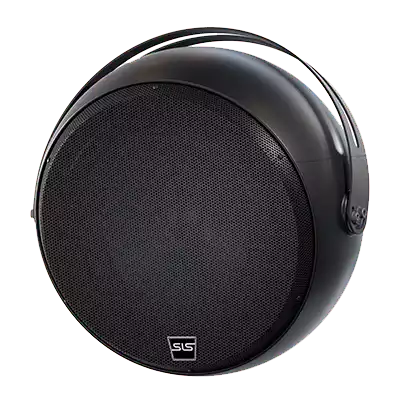

The SLS 3-Axis Speaker MA390C system has been developed to reduce the time and expense involved with installing overhead speakers needed for Dolby Atmos® cinema applications.

Featuring a 300 W, 12” coaxial full-range speaker and passive crossover, the MA390C is housed in a spherical shaped, molded enclosure that enables quick installation and easy three-axis rotation for fulfilling Dolby Atmos aiming configurations.

Choose from the FCT-24 flat ceiling kit which allows you to mount the speaker below the grid ceiling. If the speaker will obstruct the top of the projector image, use the RCT-24 Recessed Ceiling Kit which can reduce projector sight line obstructions.

The MA390C also works equally well for side and rear surrounds when used with the optional WMA-15 Wall-Mount Rigging Kit.

Features:

  • Replaces a 2’ x 2’ (0.6 × 0.6 m) ceiling tile when used with optional rigging kit
  • Reduces Dolby Atmos ceiling speaker installation time by not requiring any rigging hardware attached to building truss other than a simple safety cable
  • Ceiling grid supports the speaker and optional rigging kit
  • Ceiling tile rigging kits do not break plenum space
  • 12” coaxial speaker rated @300 W-RMS, 96 dB sensitivity
  • Spherical shaped speaker enclosure design that allows for quick installation and easy aiming with three-axis movement capabilities
  • Ships ready to install from a single point, (typically all-thread) giving the user three-axis (pan, tilt, and rotation) adjustments without the need for additional brackets or hardware
  • Two overhead rigging kits available: FCT-24, RCT-24
  • WMA-15 Wall-Mount Kit

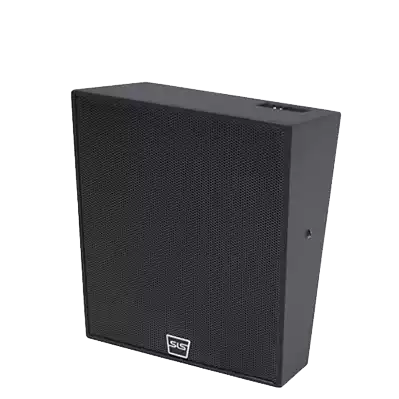

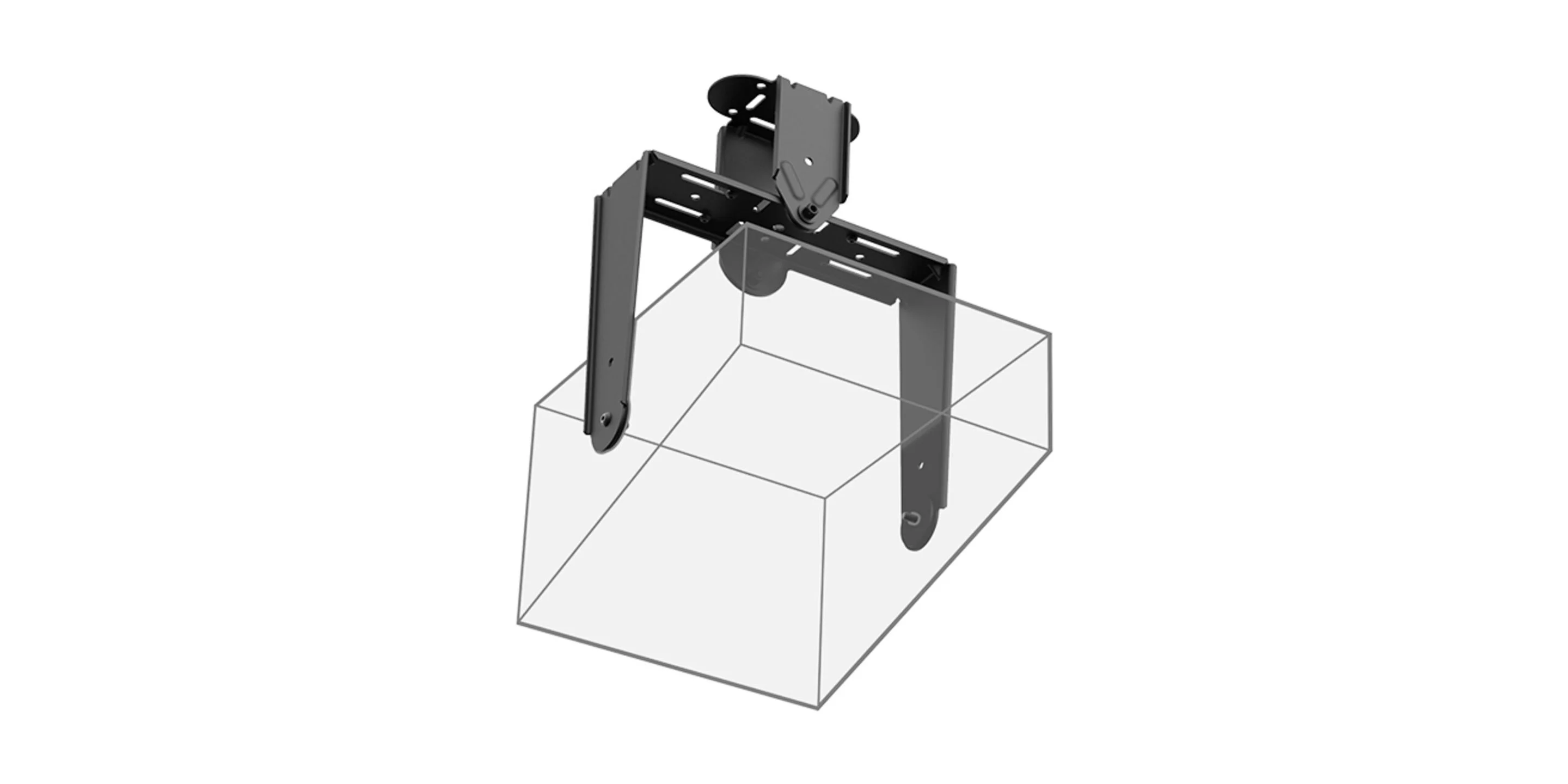

The SLS CS1090 is a two-way passive surround loudspeaker intended for small to medium-sized auditoriums for either Dolby Atmos®, 5.1 or 7.1 applications. Flexible mounting options allow the CS1090 to function in both surround and overhead applications using the optional matching yoke and u-bracket, as well as 3rd party mounting solutions. A carefully chosen crossover and driver complement help deliver smooth response within the speaker’s entire operating range. Sold and packaged in pairs.

Features:

  • Smooth response exhibited throughout its entire range
  • High power compact enclosure
  • Functions as both surround and overhead applications in Dolby Atmos, 5.1 or 7.1 auditoriums
  • Flexible mounting options

Applications:

  • Developed for use in small to medium, high-performance cinema applications where the highest quality and intelligibility of sound is required for either Dolby Atmos, 5.1 or 7.1 auditoriums

The CS1290C is a high quality single 12” two-way passive design. It serves as an overhead surround sound source module for larger auditoriums.

The CS1290C high frequency section features a high performance PRD500 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The unique design and properties of the planar ribbon driver allows for a very clear delivery and transient accuracy even at the limits of its performance. The PRD500 is contained within a 90 degree die cast aluminum waveguide rotated so that the 90 degree pattern is in the vertical plane.

Features:

  • PRD500 planar ribbon, high frequency driver delivers unsurpassed sound quality
  • Open and transparent sound even at high SPL due to advanced transducer technology
  • Optional U-Bracket for easy installation and aiming
  • Attachment points for 3rd party bracket

The CS1290S is a high quality single 12” two-way passive design. It serves as a surround sound source module for larger auditoriums.

The CS1290S high frequency section features a high performance PRD500 planar ribbon transducer designed and manufactured by SLS Loudspeakers. The 5" ribbon driver is contained within a 90-degree die-cast aluminum waveguide, rotated so that the 90-degree pattern is in the horizontal plane.

Features:

  • PRD500 planar ribbon, high frequency driver delivers unsurpassed sound quality
  • Open and transparent sound even at high SPL due to advanced transducer technology
  • Optional U-Bracket for easy installation and aiming
  • Attachment points for 3rd party bracket

The SLS 114RT-I-PXO is a passive, high-quality, full-range two-way loudspeaker, designed as a multipurpose system for situations where highly accurate, high system-output levels are required . The SLS ll4RT-I-PXO features the high-powered, high-output PRD1200 high-frequency ribbon driver, and a 700 W 14” woofer with a neodymium magnet structure. The unique PRD1200 is mounted on a rotatable 80 x 30 waveguide, and due to the high-power handling and low inherent mass of the ribbon diaphragm, reproduces audio content at high-output levels with extended high-frequency response, exceptional transient response, and clarity. The result is openness, responsiveness, and accuracy with high levels of system intelligibility. The 114RT-I-PXO provides solid low-frequency performance down to 42 Hz, and coupled with a subwoofer, provides exceptional broad-bandwidth system fidelity at high performance levels.

The 114RT-I-PXO is fitted with fly-points and mounting points for a wall-mount bracket, have no handles or pole-sockets, and are provided with barrier-strip inputs.

Key Features:

  • Two-way with 700 W (continuous) 14” woofer, rotatable high-output PRD1200 planar ribbon driver, trapezoid cabinet
  • Equipped with passive crossover
  • Coverage angles (-6 dB; H x V): 80° x 30° (rotatable)
  • Operating range: 42 Hz to 20 kHz

Applications:

  • Developed for a wide range of professional applications where the highest quality and intelligibility of sound is required
  • Surround sound source module for larger auditoriums
  • Immersive Audio

The 8290v2 is a high-quality dual 8”, two-way passive design. It serves as a multipurpose system that offers solutions for fill coverage, small-format PA, and stage monitoring. Handles, rigging points, wall bracket mounting points, and a pole socket are provided to serve these purposes.

The 8290v2 utilizes dual 8” woofers to increase the output in a small-format design and to provide increased control in the vertical plane. A complex audiophile-grade quasi-three-way crossover design controls the frequencies being sent to each woofer, minimizing lobing and providing consistent vertical coverage. The high-frequency section features a high-performance PRD500 planar ribbon transducer designed and manufactured by SLS Audio. The unique design and properties of the planar ribbon driver allows for a very clear delivery and transient accuracy, even at the limits of its performance at all volume levels. The PRD500 is contained within a 90-degree die-cast aluminum waveguide that is rotatable within the cabinet.

Key Features:

  • Passive two-way 8” woofers, rotatable PRD500 planar ribbon HF driver, complex quasi-three-way crossover design
  • Multi-angled system; small-format portable, installation, or floor-monitor applications, with pole-socket, handle, rigging points, and wall-bracket points
  • Max. output (Continuous/Peak @1m): 117dB/123dB
  • Operating range: 53Hz to 20kHz
  • Coverage angles (-6dB; H x V): 90o x 30o (rotatable)

Applications

  • Portable PA
  • Multimedia Installations
  • Stage monitor
